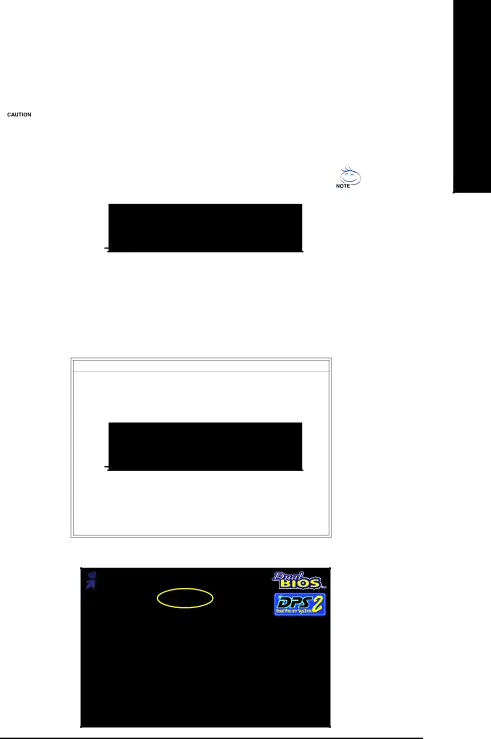

Page 55
3.Press Y button on your keyboard after you are sure to update BIOS.

3.Press Y button on your keyboard after you are sure to update BIOS.

Then it will begin to update BIOS. The progress of updating BIOS will be displayed.

Please do not take out the floppy disk when it begins flashing BIOS.Please do not take out the floppy disk when it begins flashing BIOS.

4. Press any keys to return to the Q-Flash menu when the BIOS updating procedure is completed.





















Dual BIOS Utility

























Boot From

Main Bios









Main ROM Type/Size

SST 49LF003A

512K



Backup ROM Type/Size

SST 49LF003A

512K





Wide Range Protection

Disable







You can repeat Step 1 to





Boot From

Main Bios







4 to flash the backup





!!AutoCopyRecoveryBIOS completEnabled - Pass !!











Halt On Error

Disable







BIOS, too.





CopyPleaseMainpressROManyDatakey to continueBackup























Load Default Settings













Save Settings to CMOS

























Q-Flash Utility













Load Main BIOS from Floppy













Load Backup BIOS from Floppy













Save Main BIOS to Floppy













Save Backup BIOS to Floppy









Enter : Run

:Move

ESC:Reset

F10:Power Off



















5.Press Esc and then Y button to exit the Q-Flash utility. The computer will restart automatically after you exit Q-Flash.

Dual BIOS Utility

Boot From

Main Bios







Main ROM Type/Size

SST 49LF003A

512K

Backup ROM Type/Size

SST 49LF003A

512K



Wide Range Protection

Disable











Boot From

Main Bios











AutoAreRecoveryyou sure Enableto RESET ?











Halt On Error

Disable











[Enter]Copy toMaincontinureROM Dataor [Esc]to Backupto abort...









Load Default Settings











Save Settings to CMOS











Q-Flash Utility











Load Main BIOS from Floppy











Load Backup BIOS from Floppy











Save Main BIOS to Floppy











Save Backup BIOS to Floppy







Enter : Run

:Move

ESC:Reset

F10:Power Off

After system reboots, you may find the BIOS version on your boot screen becomes the one you flashed.

English

The BIOS file becomes Fba after updating.

Award Modular BIOS v6.00PG, An Energy Star Ally Copyright (C) 1984-2003, Award Software, Inc.

Intel i875P AGPset BIOS for 8KNXP Ultra Fba Check System Health OK , VCore = 1.5250

Main Processor : Intel Pentium(R) 4 1.6GHz (133x12)

<CPUID : 0F27 Patch ID : 0027>

Memory Testing : 131072K OK

Memory Frequency 266 MHz in Single Channel

Primary Master : FUJITSU MPE3170AT ED-03-08

Primary Slave : None

Secondary Master : CREATIVEDVD-RM DVD1242E BC101

Secondary Slave : None

Press DEL to enter SETUP / Dual BIOS / Q-Flash / F9 For Xpress Recovery 09/23/2003-i875P-6A79BG03C-00

- 55 -

Appendix
