Adjusting the Computer Images (RGB menu only)

2

3

2,3,4

1,5

(GUI) On-screen Display

When displaying computer patterns which are very detailed (tiling, vertical stripes, etc.), interference may occur between the DMD pixels, causing flickering, vertical stripes, or contrast irregularities in portions of the screen. Should this occur, adjust “Clock”, “Phase”, “H-Pos” and “V-Pos” for the optimum computer image.

Description of Adjustment Items

Selected item

Description





Clock

Adjusts vertical noise.

Phase

Adjusts horizontal noise (similar to tracking on your VCR).

H-Pos

Centres the on-screen image by moving it to the left or right.

V-Pos

Centres the on-screen image by moving it up or down.

Reset

All computer image adjustment items are returned to the factory



preset settings.

Computer image adjustments can be made easily by pressing AUTO SYNC () on the remote control. See page 35 for details.

(Select the desired computer input mode with INPUT 1 or 2.)

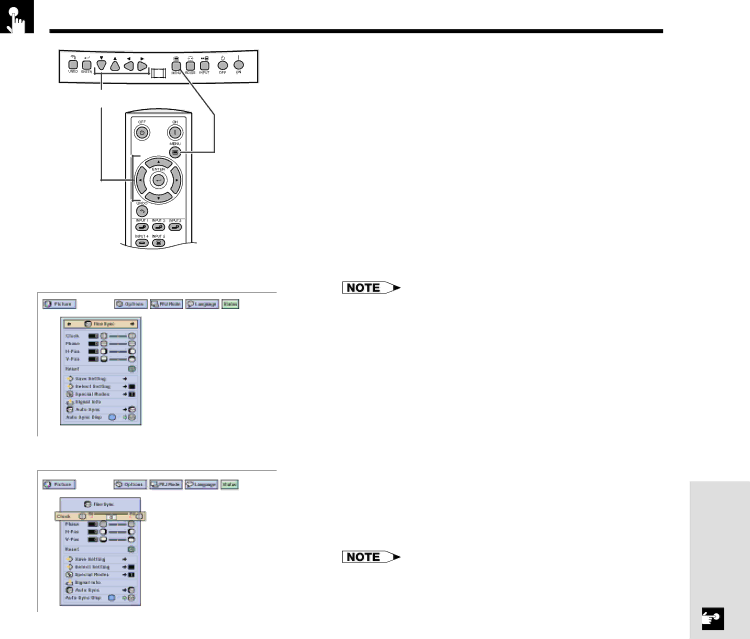

1Press MENU.

2 Press / to select “Fine Sync”.

3Press / to select a specific adjustment item.

4Press / to move the mark of the selected adjustment item to the desired setting.

5To exit the GUI, press MENU.

To reset all adjustment items, select “Reset” on the “Fine Sync” menu screen and press ENTER.

The adjustable area of each item may be changed using the input signal.

Basic Operation

32
