Multi-Tech Systems MTASR1-100 manual Remote Configuration and Management

Page 45

Chapter 5 - Remote Configuration and Management

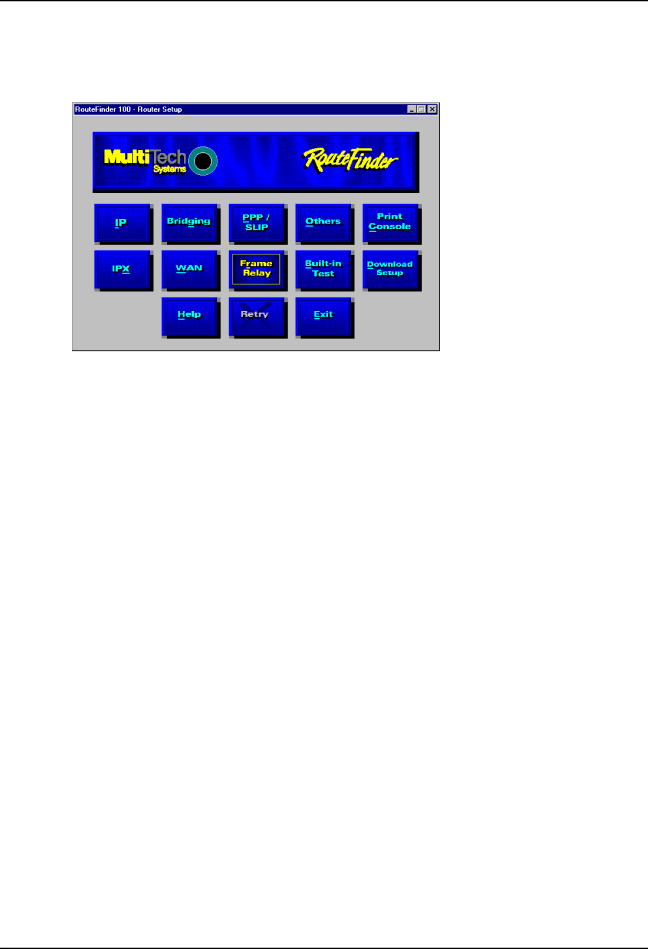

6.The RouteFinder Setup dialog box is then displayed. This is the dialog box for the remote RouteFinder. You can select any of the available buttons and change the configuration (or setup) and download the changes to the remote RouteFinder. Refer to Chapter 4 for a description of the RouteFinder software. For definitions of each dialog box or fields within a dialog box, refer to the on-line helps provided in the software.

7.After you have changed the configuration of the remote RouteFinder, click on the Download Setup button to update the configuration. The remote RouteFinder will be brought down, the new configuration written to the unit, and the unit will reboot.

8.Click on the Exit button when the downloading is complete.

9.Click on the Router Configuration icon in the Program Manager screen to verify that the RouteFinder is running.

MTASR1-100

45
