Maxim DS5001FP specifications BYTE-WIDE BUS Timing, Parameter Symbol MIN MAX Units

DS5001FP

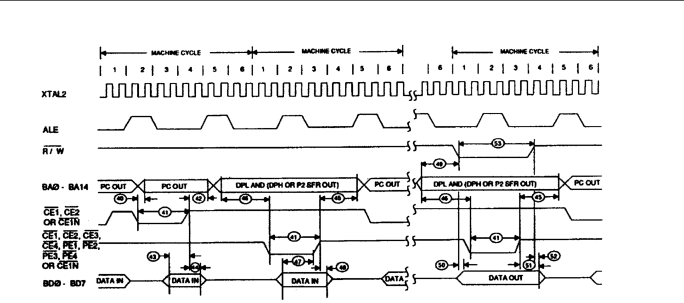

BYTE-WIDE BUS TIMING

RPC AC CHARACTERISTICS, DBB READ (TA = 0°C to +70°C; VCC = 5V ±10%)

#					PARAMETER			SYMBOL	MIN	MAX	UNITS
54				, A0	Setup to			tAR	0		ns
			CS			RD
55				, A0	Hold After			tRA	0		ns
	CS						RD
56				Pulse Width				tRR	160		ns
		RD
57				, A0 to Data-Out Delay				tAD		130	ns
		CS
58				to Data-Out Delay				tRD	0	130	ns
		RD
59				to Data-Float Delay				tRDZ		85	ns
		RD

20 of 26
