Hardware Setup

Memory

These DIMM slots are used for installing memory modules.

For more information on compatible components, please visit http://www.msi.com. tw/testreport.htm

DDR2

240-pin, 1.8V

56x2=112 pin

64x2=128 pin

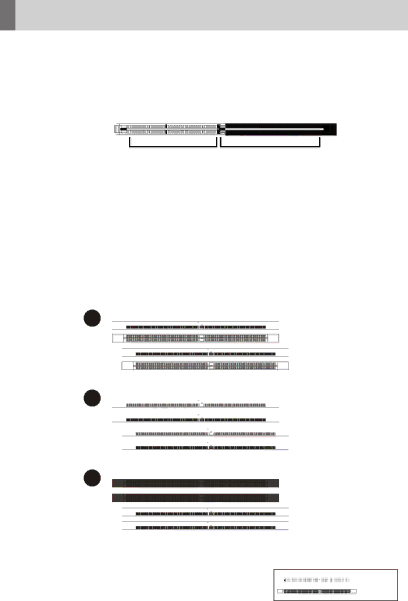

Dual-Channel mode Population Rule

In Dual-Channel mode, the memory modules can transmit and receive data with two data bus lines simultaneously. Enabling Dual-Channel mode can enhance the system performance. Please refer to the following illustrations for population rules under Dual-Channel mode.

1

DIMM_A1

DIMM_A2

DIMM_B1

DIMM_B2

2 DIMM_A1

DIMM_A2

DIMM_B1

DIMM_B2

3	DIMM_A1
	DIMM_A2

DIMM_B1

DIMM_B2

Installed

Empty

2-7
