Wireless-G Broadband Router with SpeedBooster

The Administration Tab - Management



This section of the Administration tab allows the network’s administrator to manage specific Router functions for



access and security.



Local Router Access. You can change the Router’s password from here. Enter a new Router password and then



type it again in the Re-enter to confirm field to confirm.



Web Access. HTTP (HyperText Transport Protocol) - The communications protocol used to connect to servers on



the World Wide Web. HTTPS - Uses SSL (Secured Socket Layer) to encrypt data transmitted for higher security.



Select HTTP or HTTPS. Wireless Access Web - If you are using your Wireless Router in a public domain where you



are giving wireless access to your guests, you can disable wireless access to the router’s web-based utility. You



will only be able to access the web-based utility via a wired connection if you disable the setting. Select Enable



to enable wireless access to the Router’s web-based utility or Disable to disable wireless access to the utility.



Remote Router Access. To access the Router remotely, from outside the network, select Enable. Then, enter the



port number that will be open to outside access. You will need to enter the Router’s password when accessing



the Router this way, as usual.

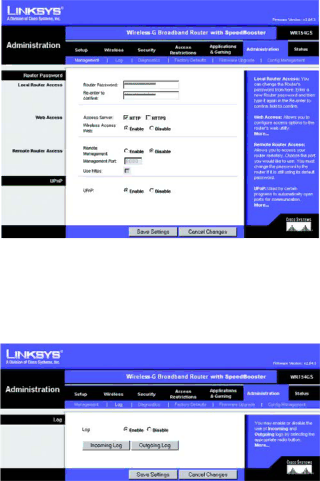

Figure 5-38: Administration Tab - Management



UPnP. Select Enable to enable UPnP feature; otherwise, select Disable. This feature is enabled by default.



Change these settings as described here and click the Save Settings button to apply your changes or Cancel



Changes to cancel your changes.



The Administration Tab - Log

The Router can keep logs of all traffic for your Internet connection. To disable the Log function, keep the default setting, Disable. To monitor traffic between the network and the Internet, select Enable. When you wish to view the logs, click Incoming Log or Outgoing Log, depending on which you wish to view.

Change these settings as described here and click the Save Settings button to apply your changes or Cancel

Figure 5-39: Administration Tab - Log

Changes to cancel your changes.



Chapter 5: Configuring the Wireless-G Broadband Router

37
