Linksys WUSB54GC manual The Congratulations Screen

Page 50

Compact Wireless-G USB Adapter

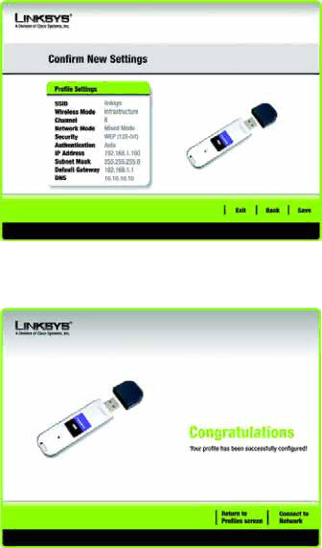

5.The next screen displays all of the Adapter’s settings. If these are correct, you can save these settings to your hard drive by clicking Save. Click Next to continue. If these settings are not correct, click Back to change your settings.

Figure 5-40: Confirm New Settings

6.After the software has been successfully installed, the Congratulations screen will appear. Click Connect to Network to connect to your network. Clicking Return to Profile will open the Wireless Network Monitor’s Profiles screen.

Congratulations! Setup is complete.

Figure 5-41: The Congratulations Screen

Chapter 5: Using the Wireless Network Monitor

43

Creating a New Profile
