To turn off the projector:

First press the Power (ON/STANDBY) button on the projector cabinet or the POER OFF button on the remote control for a minimum of two seconds. The power indicator will glow orange. After the projector turns off, the cooling fans keep operating for ONE minute.

NOTE: Do not disconnect the power cable during this time. Then, unplug the power cable. The power indicator will go out.

Status of indicators: Off



POWER

Fan running

OFF

ON











STATUS

POWER

Flashing green light

Stand by

STATUS POWER

Steady orange light

About Startup Screen

(Menu Language Select screen)

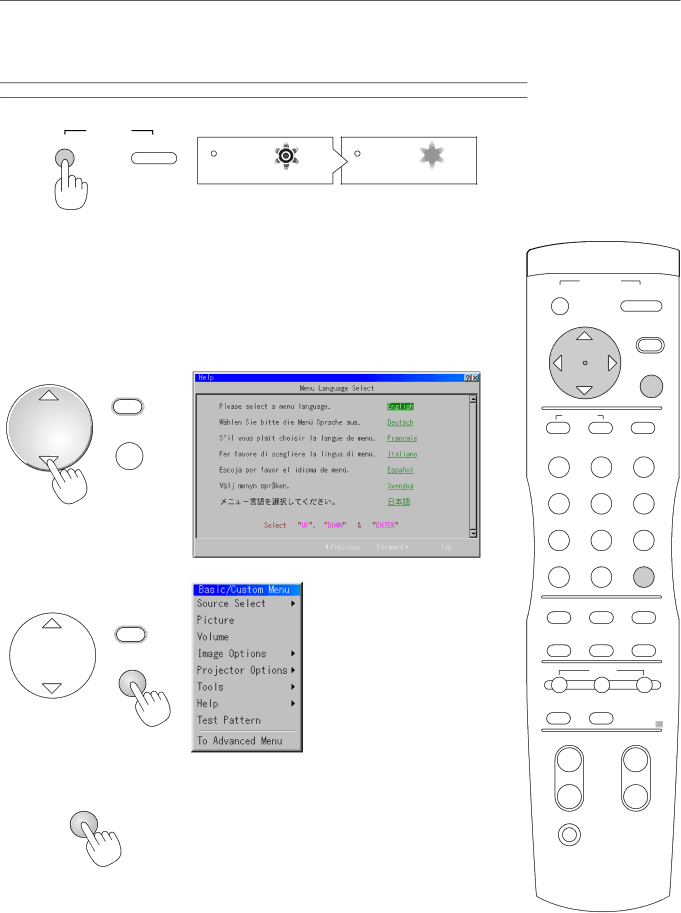

When you first turn on the projector, you will get the Startup screen.

This screen gives you the opportunity to select one of the seven menu languages: English, German, French, Italian, Spanish,Swedish and Japanese.

To select a menu language, follow these steps:

1. Use the Select or button to select one of the seven languages for the menu.

MENU

- + ENTER

2. Press the Enter button to execute the selection.

MENU

- + ENTER

3.The Basic/Custom menu will be displayed in the language you have selected.

CANCEL

POWER



OFF



ON





MENU

BS -

+

ADDRESS

ENTER





ADJUST




PICTURE WHITE BAL. PROJECTOR

ABC DEF GHI

1 2 3

JKL MNO PQR

4 5 6

STU VWX YZ?

7 8 9

,. UNDO CANCEL

0

TEST INFO. HELP

POSITION PIXEL AUTO

LENS

SHUTTER MUTE

PICTURE SOUND OSD KEYSTONE AMPLITUDE ENTRYLIST

RG B

MAGNIFY

+ +

- -

FOCUS ZOOM

LENS

CTL

To close the menu, press the Cancel button.

After this has been done, you can proceed to the advanced menu operation.

If you want, you can select the menu language later. See "Language" on page E-45.
