WINEGARD®

ROADSTARTM

RV AND VAN TV ANTENNA

MODELS RS-2000 & RS-3460/RS3460B

Made in U.S.A.

INSTRUCTIONS

SPECIFICATIONS

Bandpass
VHF/FM	54 to 216 MHz
UHF	470 to 810 MHz
Amplifier Gain
VHF*	15.5 dB avg.
UHF	19.5 dB avg.
Impedance	75 ohm unbalanced
Response	.25 dB per 6 MHz
VSWR	1.8:1 max.
Power Required	+12 VDC at 85 ma
Weatherproof Housing	Weatherable
	UV stabilized
	copolymer
*Has fixed FM trap to reduce interference.

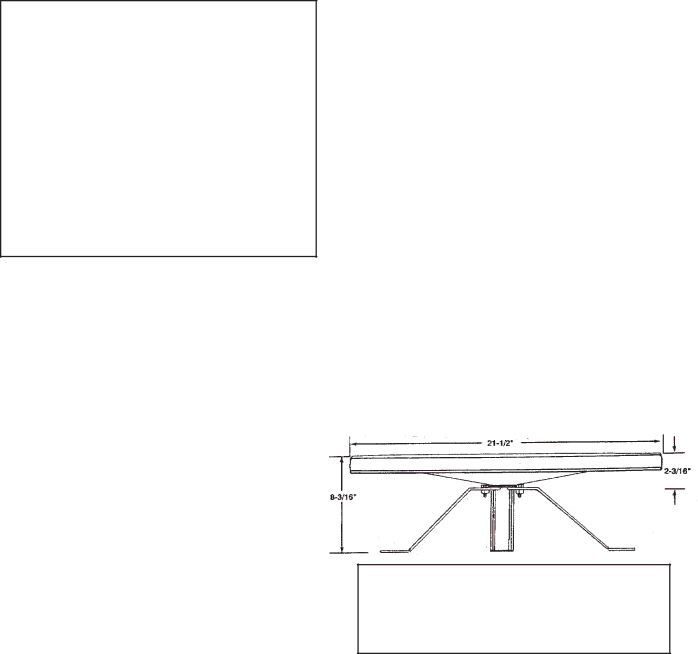

DESCRIPTION

Winegard'sRoadStarTM omnidirectionalantenna provides excellent reception of VHF/UHF TV channels. The RoadStar compact modern styling is unobtrusive and blends well with the designs of recreational vehicles. The UV stabilized copolymer housing makes the antenna virtually impervious to weathering and color change.

The unique omnidirectional characteristics provide ex- cellent reception in areas where stations are in different directions without the need for a complex rotor system. A built-in amplifier provides up to 6 times the received signal on VHF and 9 times the UHF signal insuring the best possible reception in color and black and white.

The RS-2000 package includes antenna, +12 VDC power supply with two-way splitter, 30' downlead cable, 6' TV set cord, hardware and mounting bracket.

PARTS LIST (RS-2000) White Housing

1	Amplified Antenna	2120415
6	10-32 Hex Nut, Nylock	2160216
1	Power Supply with Hardware	2120123
1	30' Coaxial Cable	2753015
1	6' Coaxial Cable	2753752
3	Roof Mounting Brackets	3720303
6	#10 x 1" Thread Cutting Screws	2160178
1	Bolt, 1-14 x 1" Nylon	3200350
1	Mounting Plate	3710248
6	10-32 x 5/8" Bolt	2160173
6	Washer, #10 Aluminum	1140302

PARTS LIST (RS-3460) White Housing (RS3460B) Black Housing

1	Amplified Antenna (white)	2120415
	Amplified Antenna (black)	2120404
6	10-32 Hex Nut, Nylock	2160216
3	Roof Mounting Brackets	3720303
6	#10 x 1" Thread Cutting Screws	2160178
1	Bolt, 1-14 x 1" Nylon	3200350
1	Mounting Plate	3710248
1	Coaxial Cable Boot	3200154
6	10-32 x 5/8" Bolt	2160173
6	Washer, #10 Aluminum	1140302

CLEANINGANTENNAHOUSING

The surface of the antenna is a tough laminated

ultraviolet shield. Clean only with mild soap and water. Use no solvents, alcohol, or cleaning

fluids.

Winegard Company

3000 Kirkwood St., Burlington, IA 52601-2000
