Panasonic TC-L50ET60, TC-L55ET60, TC-L47ET60 Best To use Hdmi terminals, AV cable connection

Page 12

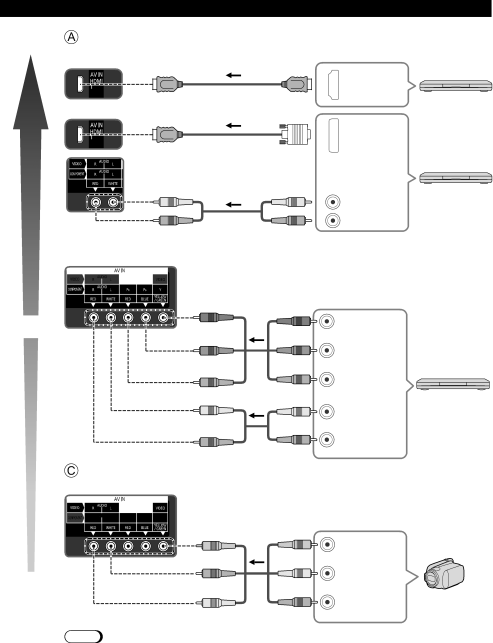

AV cable connection

Best

To use HDMI terminals

(Set-top-box / DVD recorder / Blu-ray Disc player / Camcorder / etc.)



HDMI cable

HDMI AV OUT

AV Equipment

e.g. Blu-ray Disc player

HDMI-DVI

Conversion cable

whitewhite

Audio cable

redred

DVI OUT

AV Equipment

Le.g. Blu-ray Disc player

R AUDIO OUT

To use COMPONENT terminals (DVD recorder / Blu-ray Disc player / etc.)

Good

greengreen

blueblue

redred

whitewhite

redred

Y



green



PB

COMPONENT

blue

VIDEO OUT

PR

AV Equipment

red

e.g. Blu-ray Disc

L

player



white

AUDIO

R

OUT

red





To use COMPOSITE terminals

Basic

(Camcorder / Game system / DVD recorder / etc.)

(Not HD)















































yellow

yellow

yellow

AV Equipment







L

COMPOSITE

white

white

white OUT





R

e.g. Camcorder

red

red

red



Note

In some cases, it is not possible to connect depending on the type of cable or equipment.

The Green terminal is shared for both the COMPONENT and COMPOSITE (VIDEO IN) connection. When using COMPOSITE (VIDEO IN) connection, the Yellow connector (Video) should be inserted into Green connection.

12
