Panasonic NV-VP33 Series Connections, To Enjoy Sound through Other Audio Equipment

Page 9

Connections

The output terminal common to VHS and DVD, and the one exclusively for DVD

COMPONENT VIDEO









(PROGRESSIVE/INTERLACE)



R-AUDIO-L

VIDEO



Y

PB

PR







AV1 IN













DVD













OUT













COAXIAL DIGITAL











VHS/DVD

AUDIO OUT











(PCM/BITSTREAM)











OUT

R-AUDIO-L

VIDEO

S-VIDEO

R-AUDIO-L

VIDEO

DVD-only terminal

Output common to

DVD OUT

VHS and DVD



VHS/DVD OUT

For the VHS/DVD OUT terminal, VHS and DVD outputs can be switched or it can be automatically switched on to the output side that has started playing back.

The DVD OUT terminal can only output the DVD signal.

Notes:

When Video is switched to DVD or vice versa, the audio volume may suddenly increase or decrease. This is because when the audio output of this unit is connected to the TV, etc., the audio output of the DVD is generally lower.

When you increase the volume level to play back DVD audio, reduce it when playback is finished.

Started

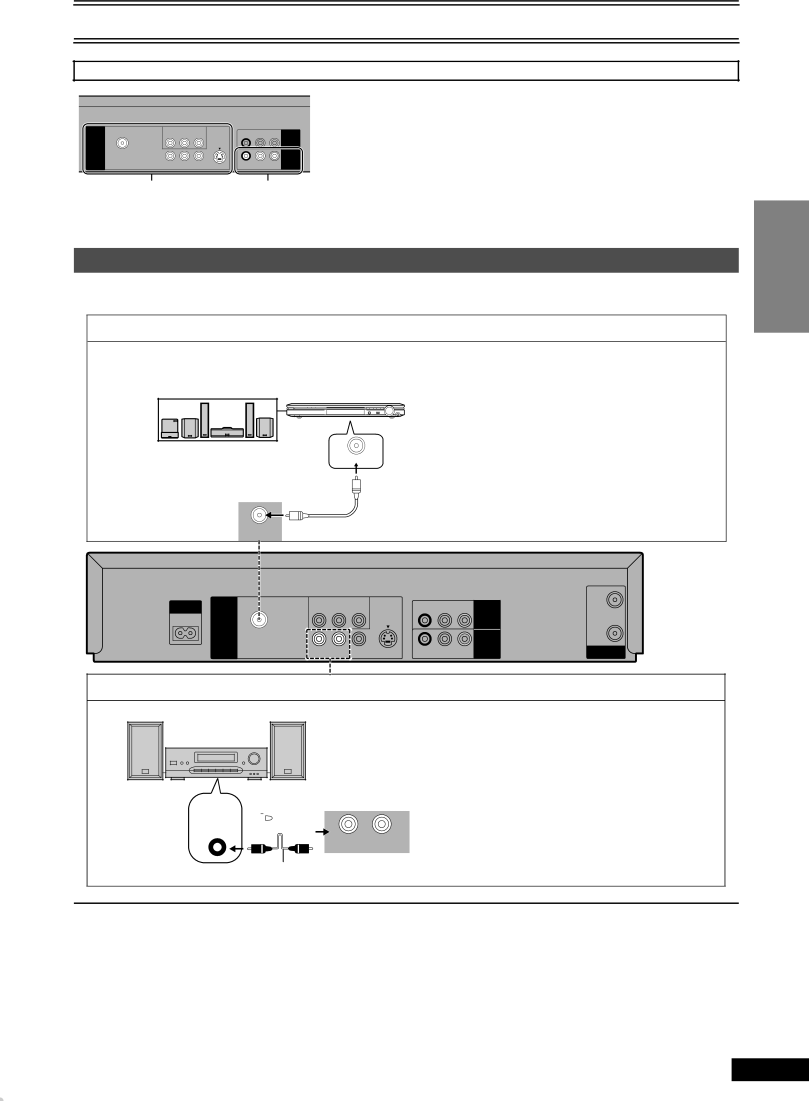

To Enjoy Sound through Other Audio Equipment

You can enjoy the powerful movie theater and hall-like sound available with multiple channel audio found on DVDs by connecting an amplifier and speakers.

Digital connection

Getting

Amplifier (Not supplied)

Connect 3 or more speakers

for surround sound.

(DVD) IN





Coaxial digital cable

COAXIAL DIGITAL

(Not supplied)

AUDIO OUT



¬To enjoy multi-channel surround sound

Connect an amplifier with a built-in decoder or a decoder-amplifier combination.

Change the settings in the SETUP menu (l 33, 37).

You can only use DTS Digital Surround decoders that are compatible with DVD.

Turn the Advanced Surround function “Off” (l 31).

¬To enjoy stereo or Dolby Pro Logic Connect a digital amplifier or system component.

Change the settings in the SETUP menu (l 33, 37).



(PCM/BITSTREAM)















AC IN ~



COMPONENT VIDEO









IN

(PROGRESSIVE/INTERLACE)



R-AUDIO-L

VIDEO





Y

PB

PR







AV1 IN





















DVD

















OUT













OUT



COAXIAL DIGITAL











VHS/DVD

















AUDIO OUT















(PCM/BITSTREAM)











OUT

RF



R-AUDIO-L

VIDEO

S-VIDEO

R-AUDIO-L

VIDEO

Analog connection

Amplifier (Not supplied) or system component (Not supplied)

¬To enjoy stereo or Dolby Pro Logic Connect an analog amplifier or system component.

Change the settings in the SETUP menu (l 33, 37).

The audio terminal of VHS/DVD OUT can also be connected.

AUX IN

L

R

R - AUDIO - L

Audio cable (Not supplied)

Note:

To purchase a coaxial digital cable (not supplied), check the terminal shape of the equipment to be connected beforehand.

RQTV0057

9
