MAINTENANCE

REPLACING LAMP

DANGER

Never attempt to replace lamp in a wet place. The possibility exists of electric shock.

WARNING

Always allow sufficient time for the lamp to cool down before replacing.The possibility exists of severe burns if hot lamp is touched.

\ CAUTION

Always shutdown power source and remove balloon assembly from mast when replacing a broken lamp. Utmost care should be taken in handling broken lamp. The possibility exists of serious injury from handling a broken lamp.

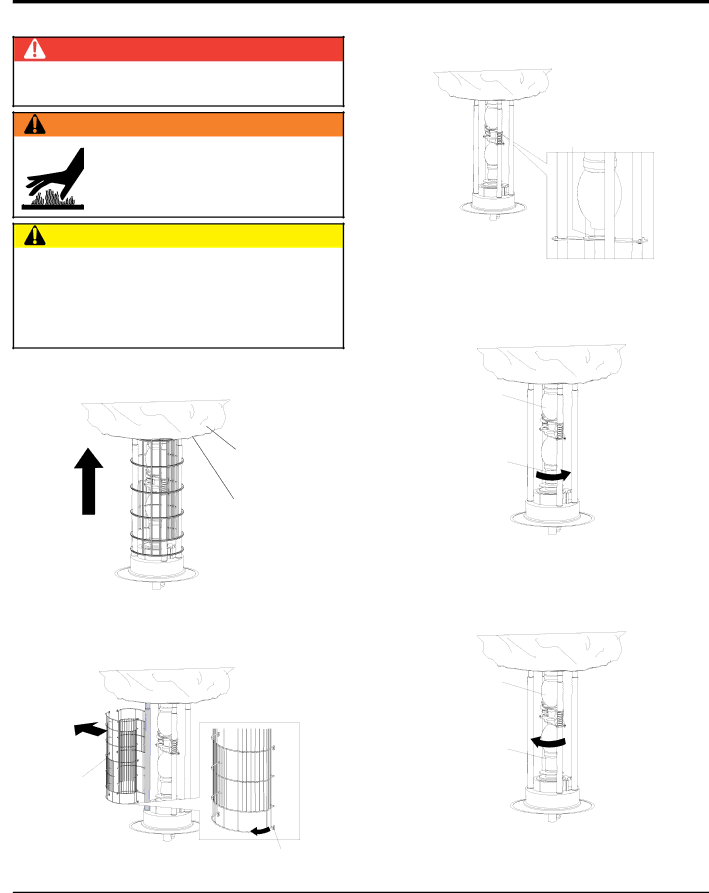

1.Unzip the zipper at the bottom of the balloon and roll the balloon up to expose the lamp. See Figure 22.

BALLOON

ZIPPER

Figure 22. Exposing Balloon

2.Release the lamp guard hooks from the poles and remove the two lamp guards. See Figure 23.

LAMP GUARD

LOCK HOOK

Figure 23. Removing Lamp Guard

3.Press the tabs on the lamp holder and push up lamp holder to release it from lamp. Do the same to the lower lamp if necessary. See Figure 24.

LAMP HOLDER

Figure 24. Lamp Holder

4.Remove lamp from the lamp socket by turning lamp counterclockwise. See Figure 25.

LAMP

LAMP

SOCKET

Figure 25. Removing Lamp

5.Install new lamp into socket and turn lamp in a clockwise direction until tight. See Figure 26.

LAMP

LAMP

SOCKET

Figure 26. Installing New Lamp

PAGE 32 —GB2000 BALLOON LIGHT• OPERATION AND PARTS MANUAL — REV. #1 (02/25/14)

Page 31 Page 33
Image 32
Page 31 Page 33
