Page 8

FIXED-POSITION WALL MOUNT FOR TVs 19-39 in.

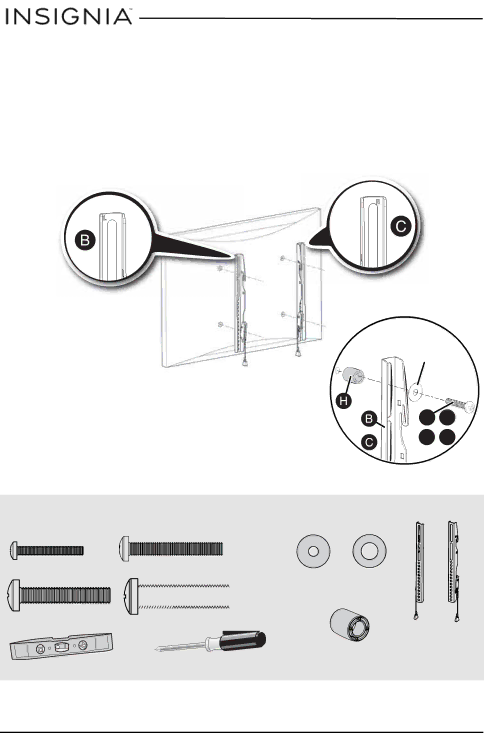

STEP 3 - Option 2: Attaching the mounting hardware to TVs with irregular or obstructed backs

1Align the left and right TV brackets (B and C) with the screw holes on the back of the TV. Make sure that the brackets are level.

2Place spacers (H) behind the TV brackets. Place washers (F or G) over the holes in the TV brackets. Insert screws (E, J, M, or Q) through the washers, TV brackets, and spacers.

3Tighten the screws until they are snug against the TV brackets. Do not over tighten.

or

or

E or

J

M

Q



You’ll need

Screws



Washers

or



or

E (4)

J (4)

G (4)



F (4)





Spacers

M (4)

Q (4)





B and C TV brackets



H (4)

Level

Phillips screwdriver



8www.insigniaproducts.com
