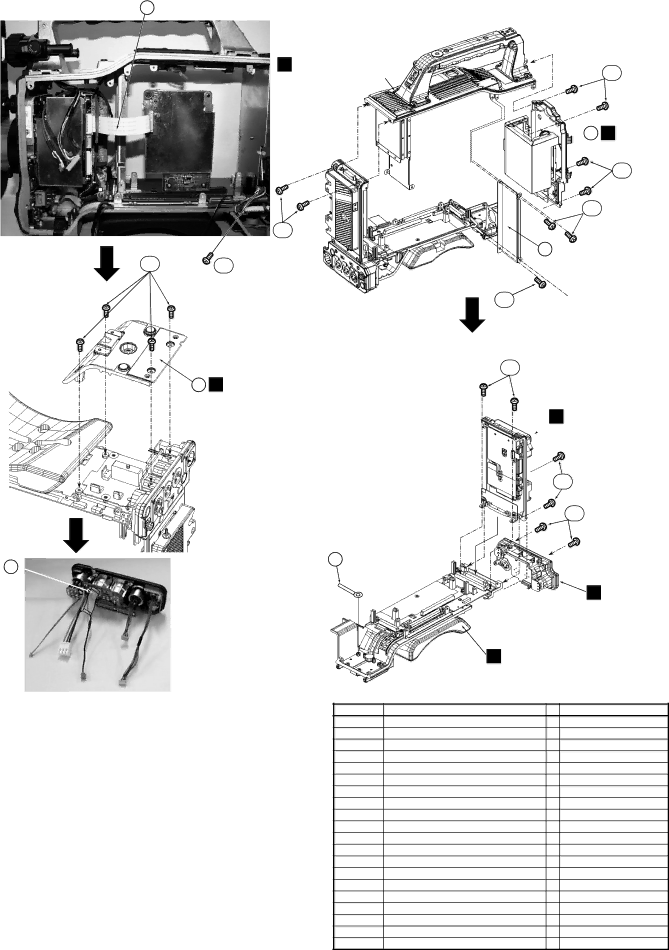

OVERALL SECTION (3)
10
L TOP CASE SECTION
(Page PRT-12, 13)
110
103105
4 T BOTTOM COVER
ASS'Y
(Page PRT-16)
110
18 H CAMERA
ASS'Y
(Page PRT-9, 10)
110
105
6
105
106
RBACK CASE
SECTION (Page
110
104
11
P4201
20
S JACK PANEL
SECTION
(Page PRT-16)
P4252
P4529
P4255
P4256 P4521
JBOTTOM CASE SECTION (Page PRT-11)
Ref.No. | Part No. | Part Name & Description | Pcs | Remarks |
|
|
|
|
|
|
| OVERALL SECTION (3) |
|
|
|
|
|
|
|
4 | VYK1W80 | BOTTOM COVER ASS'Y | 1 |
|
|
|
|
|
|
6 | VMP7858 | SHIELD PLATE | 1 |
|
|
|
|
|
|
10 | VWJ16G8100L0 | FLEX. CABLE | 1 |
|
|
|
|
|
|
11 | VWJ24G7035L0 | FLEX. CABLE | 1 |
|
|
|
|
|
|
18 | VEQ4535 | CAMERA ASS'Y | 1 |
|
|
|
|
|
|
|
|
|
|
|
103 | XSB3+6FJK | SCREW | 4 |
|
|
|
|
|
|
104 | XSN3+12FJK | SCREW | 2 |
|
|
|
|
|
|
105 | XYN3+J6FJ | SCREW | 5 |
|
|
|
|
|
|
106 | XYN26+C6FJ | SCREW | 2 |
|
|
|
|
|
|
110 | XSB3+8FJK | SCREW | 8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Ref.No.
Part No. | Part Name & Description |
|
|
Pcs
