RCA L32WD23, L37WD23, L26WD22, L32WD22, L26WD23 warranty VGA Connection, Viewing the PC

Page 14

Connections and Setup

VGA Connection

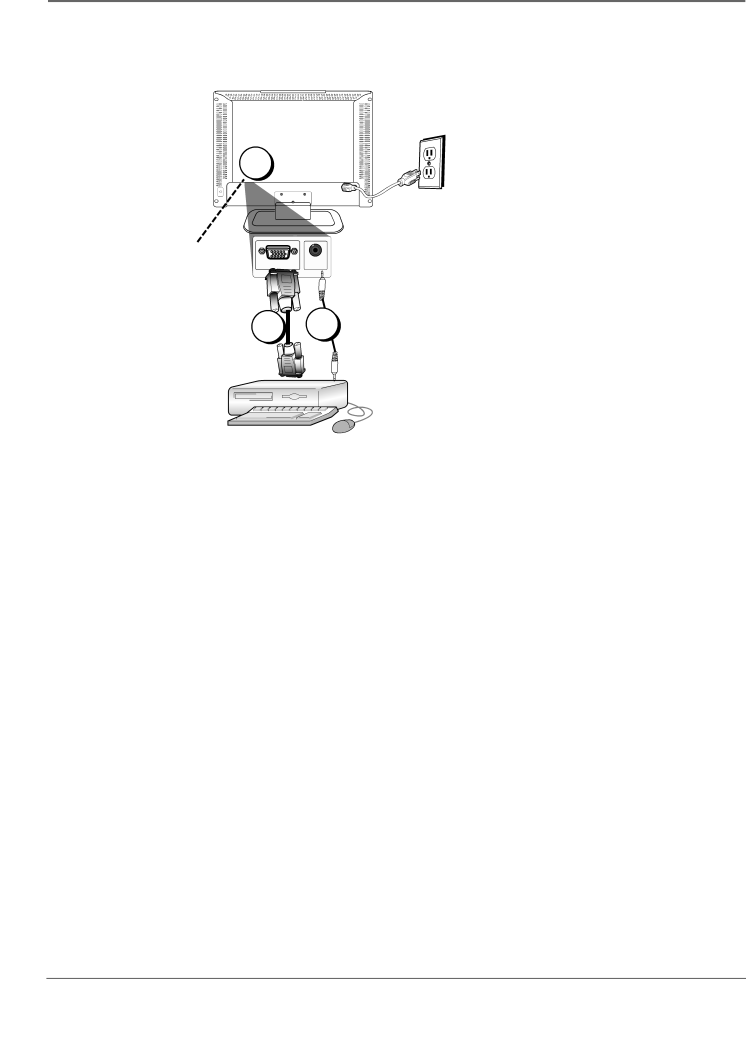

This is an example of a connection using the VGA jacks.

1

Don't forget: If necessary, connect antenna or cable to get a picture. Go to page 8 for instructions.

VGA INPUT

AUDIO

INPUT

PC INPUT

2

3

Connecting the Device

This connection allows you to connect to a personal computer.

1.If necessary, connect your cable or off-air antenna as described on page 8.

2.Connect your monitor cable.

Connect one end of a 15-pin monitor cable to the VGA INPUT jack on the TV and the other end to the PC's video output jack. Note, if your PC's video output isn't 15-pin, you'll need an adapter that can connect to a 15-pin monitor cable. If the picture doesn't look right, try adjusting the VGA settings as explained on page 36.

3.Connect your audio cable.

Connect a 3.5 mm stereo mini pin cable (sometimes referred to as 1/8" stereo mini pin) to the VGA AUDIO INPUT jack on the back of the TV and the other end to the Audio Output jack on the PC.

Notes: The maximum panel resolution is 1360 x 768 for your TV. Be sure to set your PC to the correct monitor output setting.

The TV allows you to listen to the sound from another input while the PC is connected. Go to page 37 for more information.

Viewing the PC

1.Plug in the TV (see page 15 for details) and the PC, if they aren't already plugged in.

2.Turn on the TV and the PC.

3.Press the INPUT button on the remote control and press the up or down arrow button to highlight VGA from the input list. Press OK to tune to the input. To go back to viewing TV channels, press the CH+ or CH- button.

14

Chapter 1

Page 13 Page 15
Image 14
Page 13 Page 15
