Boss Audio Systems 765DBI manual DIN REAR-MOUNT Method B

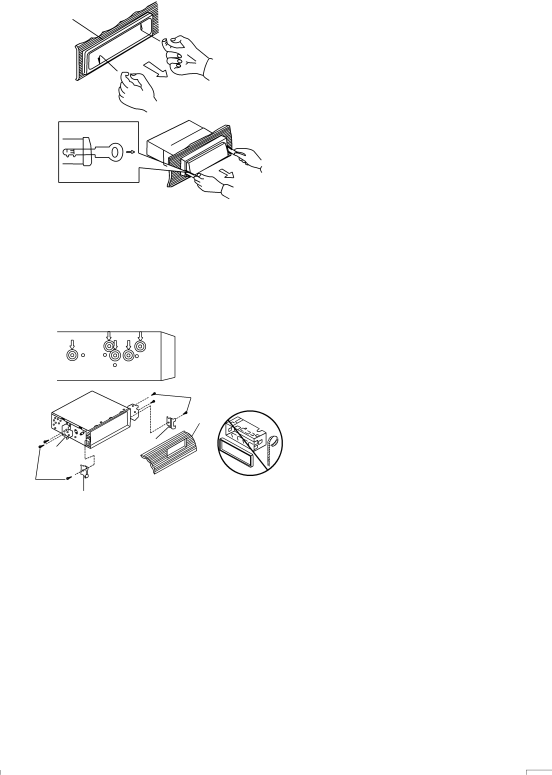

Removing the unit

a

b

c

Trim Plate Installation:

a.Frame

b.Insert fingers into the groove in the front of frame and pull out to remove the frame. (When re-attaching the frame, point the side with a groove down wards and attach it.)

c.Insert the levers supplied with the unit into the grooves at both sides of the unit as shown in figure until they click. Pulling the levers makes it possible to remove the unit from the dashboard.

Push the trim plate against the chassis until it is fitted.

You must do this before you install the front panel, otherwise it can't be attached.

DIN REAR-MOUNT (METHOD B)

Installation using the screw holes on the sides of the unit.

Fastening the unit to the factory radio mounting bracket.

2

4

5

3

2

5

1.Select a position where the screw holes of the bracket and the screw holes of the main unit become aligned (are fitted) and tighten the screws at 2 places on each side.

2.Screw

3.Factory radio mounting bracket.

4.Dashboard or Console

5.Hook (Remove this part)

Note: the mounting box, outer trim ring, and half-sleeve are not used for method B installation.

3
