Kenmore 415.1615111 manual Tank Exclusion Wire

Page 14

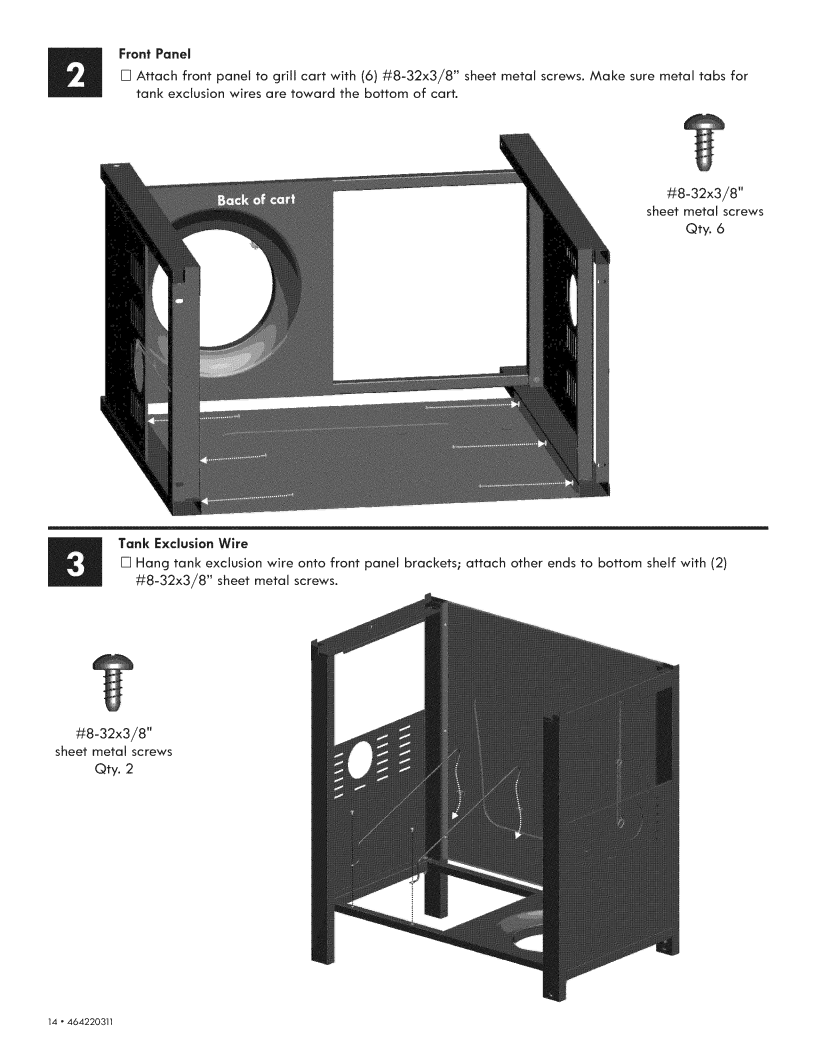

B	[] Attach front panel to grill cart with (6) #8-32x3/8"	sheet metal screws. Make sure metal tabs for
B	Front Panel
	tank exclusion wires are toward the bottom of cart.

#8-32x3/8" sheet metal screws

Qty. 6

Tank Exclusion Wire

[] Hang tank exclusion wire onto front panel brackets; attach other ends to bottom shelf with (2)

#8-32x3/8" sheet metal screws.

#8-32x3/8" sheet metal screws

Qty. 2

14 o 464220311
