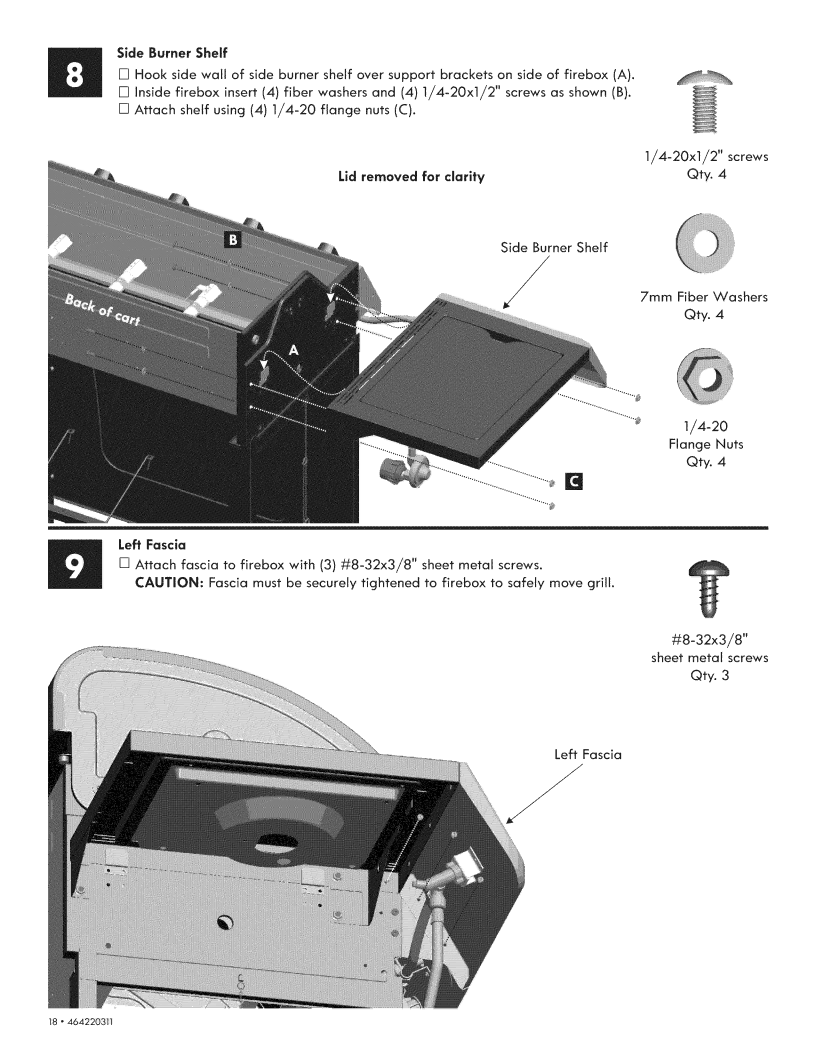

Kenmore 415.1615111 manual Side Burner Shelf, Lid removed for clarity

Side Burner Shelf

[] Hook side wall of side burner shelf over support brackets on side of firebox (A).

[] Inside firebox insert (4) fiber washers and (4) 1/4-20xl/2" screws as shown (B).

[] Attach shelf using (4) 1/4-20 flange nuts (C).

1/4-20xl/2" screws

Lid removed for clarity

Side Burner Shelf

/

Left Fascia

[] Attach fascia to firebox with (3) #8-32x3/8" sheet metal screws.

CAUTION: Fascia must be securely tightened to firebox to safely move grill.

Left Fascia

Qty. 4

7mm Fiber Washers

Qty. 4

1/4-20

Flange Nuts

Qty. 4

#8-32x3/8" sheet metal screws

Qty. 3

18 - 464220311
