Chicago Electric Comprehensive Parts Manual for Power Tools

Page 13

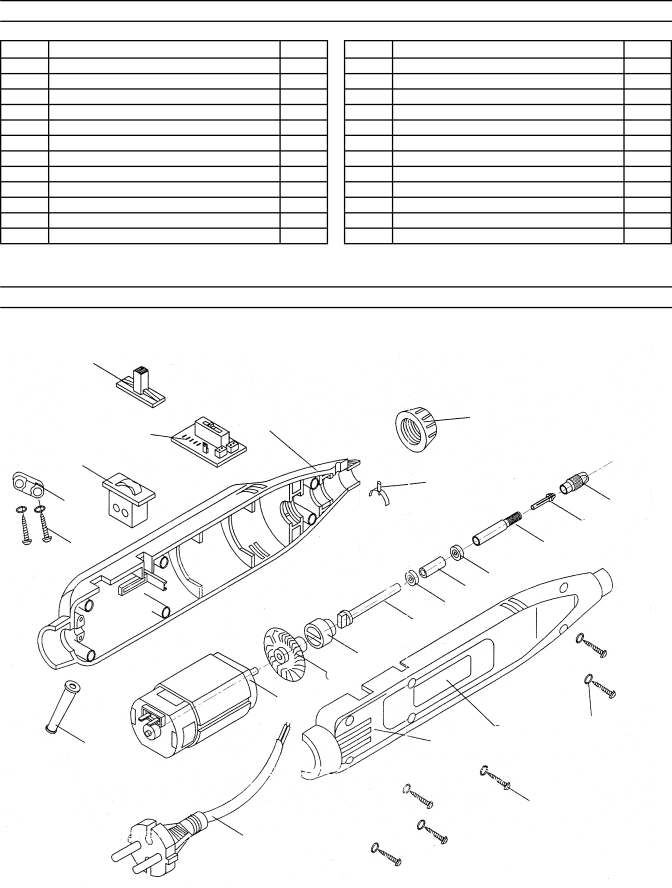

Parts List - DIAGRAM

Part Description

1Collet Nut

2Collet

3Shaft

4Bearing

5Bushing

6Bearing

7Coupling 2

8Coupling 1

9Fan

10Motor

11Cord Protector

12Self Screw

Qty.

1

1

1

1

1

1

1

1

1

1

1

2

Part Description

13Cord Strain Release

14V-Speed PCB

15Pusher

16Switch

17Left Shell

18Nut

19Shaft Lock

20Cord

21Right Shell

22Self Screw

23Washer

24Name Plate

Qty.

1

1

1

1

1

1

1

1

1

6

8

1

ASSEMBLY DIAGRAM

15









14

17

18











16







13





19





1







2

12





3







4

5

6

7

8

9

10

2423

11

21

22

20

SKU 40457

For technical questions, please call 1-800-444-3353.

Page 13
