INSTALLATION

AB

CENTER LINE

A-TYPE : 616mm

B

A

B-TYPE : 360mm





Centre Line

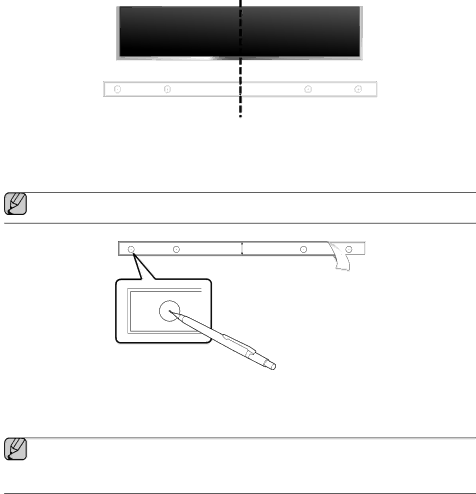

2.Align the Paper Template's Centre Line with the centre of your TV (if you are mounting the Soundbar below your TV), and then fix the Wall Mount Guide to the wall using tape.

If you are not mounting below a TV, place the Centre Line in the centre of the installation area.

A

B

CENTER LINE

A-TYPE : 616mm

B

A







B-TYPE : 360mm





A

3.Push a pen tip or sharpened pencil tip through the centre of the A-TYPE images on each end of the Guide to mark the holes for the supporting screws, and then remove the Wall Mount Guide.

4.Using an appropriately sized drill bit, drill a hole in the wall at each marking.

If the markings do not correspond to the positions of studs, make sure you insert appropriate anchors or mollies into the holes before you insert the support screws. If you use anchors or mollies, make sure the holes you drill are large enough for the anchors or mollies you use.

12

Image 12
