Vanguard Heating VMH26NR Inspecting Burner, Pilot Flame Pattern, Burner Flame Pattern

Page 21

OWNER’S MANUAL

INSPECTING

BURNER

Check pilot flame pattern and burner flame pattern often.

PILOT FLAME PATTERN

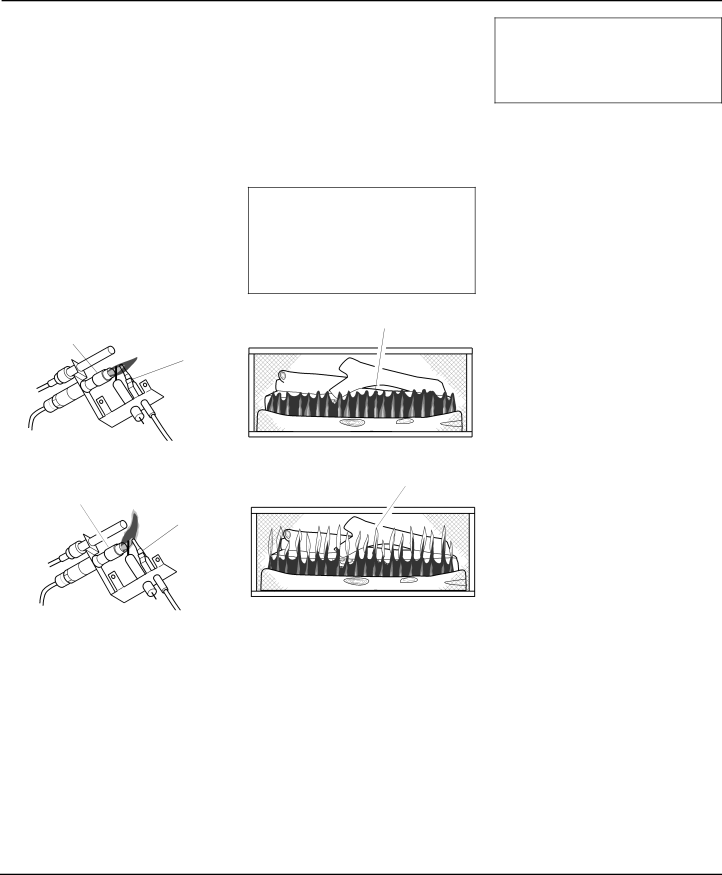

Figure 39 shows a correct pilot flame pat- tern. Figure 40 shows an incorrect pilot flame pattern. The incorrect pilot flame is not touch- ing the thermocouple. This will cause the thermocouple to cool. When the thermo- couple cools, the fireplace will shut down.

If pilot flame pattern is incorrect, as shown in Figure 40

•turn fireplace off (seeTo Turn Off Gas to Appliance, page 19)

•see Troubleshooting, pages 22 through 24

Pilot Burner

Thermocouple

Figure 39 - Correct Pilot Flame Pattern

Pilot Burner

Thermocouple

Figure 40 - Incorrect Pilot Flame Pattern

BURNER FLAME PATTERN

Figure 41 shows a correct burner flame pattern. Figure 42 shows an incorrect burner flame pattern. The incorrect burner flame pattern shows yellow tipping of the flame. It also shows the flame higher than one inch above the log.

Note: When using the fireplace the first time, the flame will be yellow for approxi- mately one hour until the log cures.

WARNING: If yellow tipping occurs, your fireplace could pro- duce increased levels of carbon monoxide. If burner flame pat- tern shows yellow tipping, follow instructions in column 3.

Top of Flame About One

Inch Above Charred Area

Figure 41 - Correct Burner Flame Pattern

Yellow

Tipping

Figure 42 - Incorrect Burner Flame Pattern

NOTICE: Do not mistake orange flames with yellow tipping. Dirt or other fine particles enter the fireplace and burn causing brief patches of orange flame.

If burner flame pattern is incorrect, as shown in Figure 42

•turn fireplace off (seeTo Turn Off Gas to Appliance, page 19)

•see Troubleshooting, pages 22 through 24

104325

21
