Vanguard Heating VDDVF36STN/STP, VDDVF36PN/PP installation manual Vent Pipe Connections

Page 9

OWNER’S MANUAL

VENTING INSTALLATION

Continued

3.Attach vent pipe assembly to the fire- place. Set fireplace in front of it’s per- manent location to insure minimum clearances. Mark the wall for a 10" square hole (for noncombustible ma- terial such as masonry block or con- crete, a 7 1/2" diameter hole is accept- able). See Figure 17. The center of the hole should line up with the center- line of the horizontal rigid vent pipe. Cut a 10"x10" (254mm x 254mm) square hole through combustible ex- terior wall (7 1/2" [190mm] diameter hole if noncombustible). Frame as nec- essary (see Figure 17).



4" Clamp

Female

7" Clamp

Locking



Lugs





Spacer



Spring

Male

4" Flex

Pipe

Slots





7" Flex



Pipe

Rigid Vent Pipe Flexible Vent Pipe

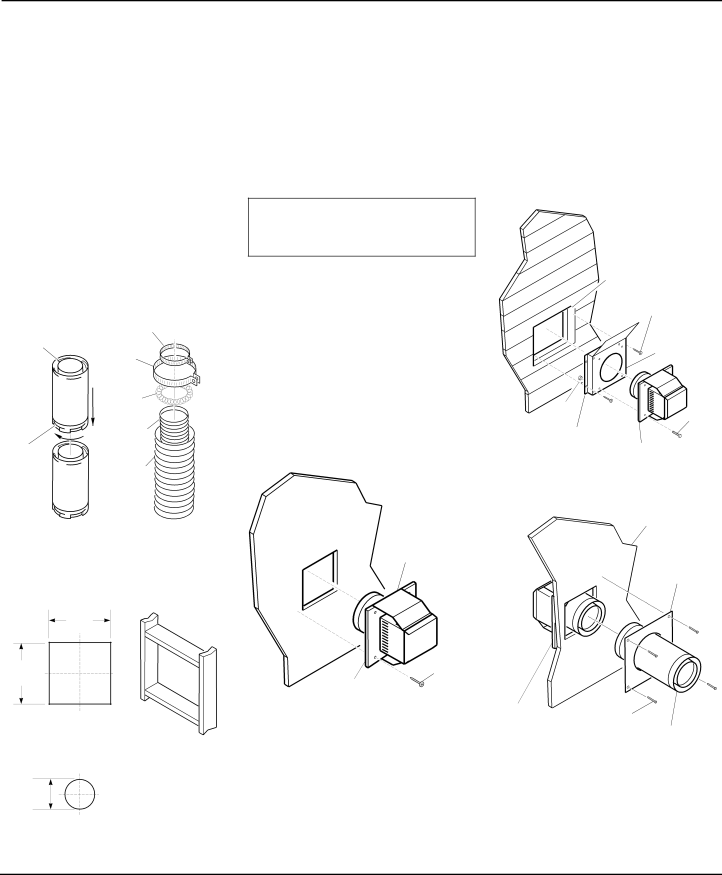

Figure 16 - Vent Pipe Connections

Vent Opening

Combustible Wall

10"

(254mm)

10"

(254mm)

(Framing

4.Apply a bead of non-hardening mastic around the outside edge of the vent cap. Position the vent cap in the center of the 7 1/2" or 10" hole on the exterior wall with the arrow on the vent cap pointing up. Insure proper clearance of 1" to combustibles is maintained. At- tach the vent cap with four wood screws supplied (see Figure 18). Note: Re- place the wood screws with appropri- ate fasteners for stucco, brick, concrete, or other types of siding.

WARNING: Do not recess vent termination in to any wall. This will cause a fire hazard.

For vinyl siding use vinyl siding stand- offs between vent cap and exterior wall. The vinyl siding standoff prevents ex- cessive heat from melting the vinyl sid- ing material. Bolt the vent cap to the standoff. Apply non-hardening mastic around outside edge of the standoff in- stead of the vent cap assembly. Use wood screws provided to attach the standoff. See Figure 19.

5.Slide the wall thimble over the vent pipe before connecting the horizontal run to the vent cap (see Figure 20).

Apply Mastic to All Four Sides

UP

Wood

Screw

Vent Cap

Figure 18 - Installing Horizontal Vent Cap

6.Carefully move the fireplace with vent assembly attached toward the wall and insert the vent pipe into the horizontal termination. The pipe overlap should be a minimum of 1 1/4". Apply silicone to the connection. Fasten all vent connec- tions with screws provided. Refer to Framing on pages 4 and 5 for instruc- tions on securing unit to framing or floor.

7.Slide the wall thimble against the inte- rior wall surface and attach with screws provided (see Figure 20).

Cut Vinyl Siding

Away to Fit

Standoff

Wood Screw

Standoff

UP

Nut

Bolt

Apply Mastic

to All Four Sides Vent Cap

Figure 19 - Installing Vinyl Siding Standoff

Interior Wall

Surface

Wall

Thimble

Vent Cap

Screw

(Horizontal



Vent Opening

Detail)

Termination)

Horizontal

Vent Pipe



Non-Combustible Wall

71/2"

(190mm)

Figure 17 - Vent Opening Requirements

Figure 20 - Connecting Vent Cap with Horizontal Vent Pipe

Continued

106918

9

Image 9
Contents What to do if YOU Smell GAS Check Local Codes Prior to InstallationGlossary Terms VDDVF36PN/PP and VDDVF36STN/STP SeriesIntroduction Selecting LocationBefore YOU Begin Clearances PRE-INSTALLATION PreparationMantel Clearances FramingLocation of Vent Termination General VentingGeneral Venting Installation Precautions Venting InstallationInstallation Planning Installing Vent System in a ChaseSnorkel Termination Installation for Horizontal TerminationVent Pipe Connections Horizontal Venting Horizontal Termination ConfigurationsVenting with Two 90 Elbows Installation for Vertical Termination Flat Ceiling InstallationCathedral Ceiling Installation Venting with One 90 Elbow Vertical Termination ConfigurationsVertical Venting Parts Lists for Venting InstallationVenting High AltitudeWall Switch Installation Electrical Hookup for Blower AccessoryInstalling Receiver GAS Rating Type of GAS Natural PROPANE/LP GAS Line HOOK-UPInstalling LOG SET GAS Supply TestingBurner Flame Adjustment Pilot Assembly AdjustmentDecorative Facing Burner RemovalOperating Guidelines and Maintenance Instructions Operating Fireplace For Your Safety Read Before LightingLighting Instructions To Turn OFF GAS To ApplianceGhrc Operation Optional Remote OperationTechnical Service Service HintsReplacement Parts Wiring DiagramObserved Problem Possible Cause Remedy TroubleshootingObserved Problem Possible Cause Company Gas leak. See Warning statement Accessories Replacement Parts GAS Control Valve Refractory PiecesNatural 104496-01 14389 Propane/LP 104496-02 Black 105904-01DIRECT-VENT GAS Fireplace 106918 Warranty Information

VDDVF36STN/STP, VDDVF36PN/PP specifications

The Vanguard Heating VDDVF36PN/PP and VDDVF36STN/STP are premium direct vent gas fireplaces that seamlessly blend contemporary design with advanced heating technologies. These models are perfect for homeowners looking to enhance their living spaces while ensuring optimal warmth and comfort.

One of the key features of the VDDVF36 series is its powerful heating capacity. With a maximum input of 36,000 BTUs, these fireplaces can efficiently warm large rooms, making them an excellent choice for both new constructions and renovations. Their direct vent system allows for flexible installation options, as it can draw air from outside and exhaust gases without needing an existing chimney.

The design aesthetic of the VDDVF36PN/PP and VDDVF36STN/STP models is notably sleek and modern. Available in either a pristine perfect black finish or a striking stainless steel option, these units can complement a variety of interior styles. The large viewing area, framed by a stylish bezel, ensures that the flames are the focal point of the room, establishing a cozy ambiance.

Equipped with advanced electronic ignition, these fireplaces offer ease of use and reliability. The ignitor provides a fast and safe startup, eliminating the need for manual lighting and enhancing the user experience. Additionally, these units come with a built-in thermostatic control, allowing users to regulate temperatures effectively, ensuring consistent comfort while optimizing energy use.

The VDDVF36 series is also designed with safety in mind. An integrated safety shut-off system ensures that the fireplace will automatically turn off if any issues are detected, providing peace of mind for users. Furthermore, the screens and barriers are designed to prevent accidental contact with the flames, making them safe for households with children and pets.

In terms of maintenance, the VDDVF36 models are designed for easy access to components, making regular cleaning and servicing straightforward. The durable construction materials used in these fireplaces ensure longevity and reliability, promising years of efficient heating.

Overall, the Vanguard Heating VDDVF36PN/PP and VDDVF36STN/STP models represent the pinnacle of modern gas fireplace technology, combining powerful heating capabilities, stylish aesthetics, and advanced safety features into one outstanding unit. For homeowners seeking a reliable and attractive heating solution, these fireplaces are an excellent choice.
