Windsor 10070460, 621-222MO, 10070470 Lubricate U-CUP with Superlube Monthly, Pressure Regulator

Page 16

MAINTENANCE

PRESSURE REGULATOR

For best results with the pressure regulator, we recommend that you clean and lubricate

the piston and u-cup with Superlube lubricant monthly or when pressure drop seems excessive.

1.Turn unit off before lubricating.

2.Remove cap, spring and spring retainer plate.

3.With fingertips remove piston and u-cup.

4.Wipe piston and u-cup clean of any film or scale.

5.Lubricate the piston and u-cup with Superlube.

6.Reassemble regulator.

7.With pump ON, re-adjust pressure regulator for normal operation.

LUBRICATE U-CUP WITH SUPERLUBE MONTHLY.

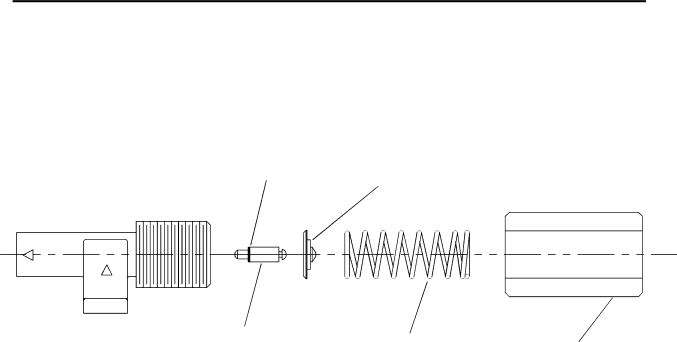

OUT

IN

U-CUP

SPRING RETAINER PLATE



PISTONSPRINGCAP

4-4
