Kenmore 625.3483500 Servicers TECH. Information 5D.ROTARY Valve Service, Disassembly, Assembly

Page 27

SECTION 5

SERVICER'S TECH. INFORMATION

5D.ROTARY VALVE SERVICE

Before working on the valve, turn off the water supply and disconnect from electrical power. TO RELIEVE PRESSURE:

--3 VALVE BYPASS: Close the inlet valve and open a soft water faucet. Then close the outlet valve and open the bypass valve.

--SEARS SPECIAL BYPASS: Slide the bypass valve stem to bypass position. Loosen the 3 hex head screws (see A in drawing) toward the back side of the valve to allow pressure water to bleed out (catch water with a rag).

DISASSEMBLY

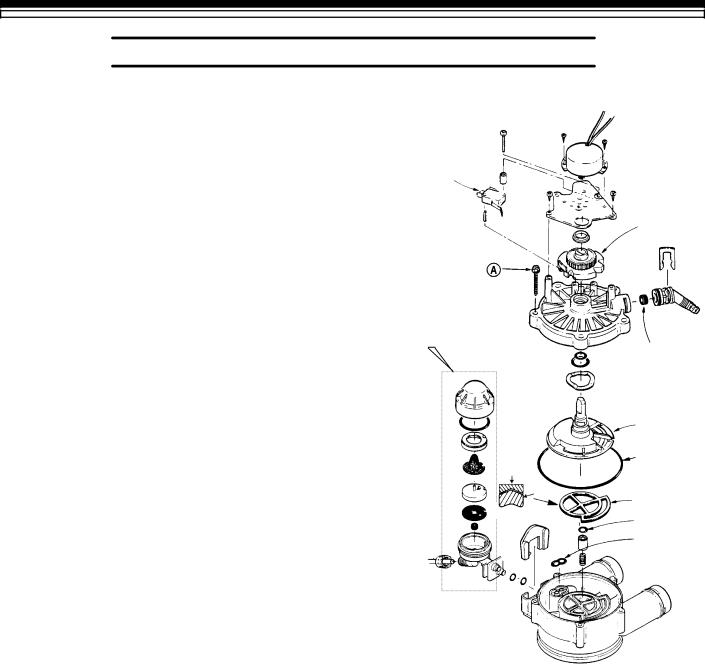

To remove a part or group of parts, refer to the valve drawing. A common screwdriver or nut driver, Phillips screwdriver and pliers are the only tools needed to completely disassembe.

SERVICING THE VALVE

Inspect all o7rings, seals and gaskets for wear or defects.

Inspect the bottom surface of the rotor and disc for scratches, chips or wear.

NOTE: If replacement is needed, be sure to use the current replacement part.

ASSEMBLY

Be sure all parts are in place and in the proper position. Lubricate ALL o7rings and seals with FDA approved silicone grease. To install the rotor seal, first place the seal into the valve groove, rounded side down (see cross7section). Apply a light coating of silicone grease to the seal￿s crossing ribs. Then, carefully center the wear strip on the seal, and push it downward onto the seal.

Install the nozzle and venturi seal and drain seal. Assemble 2 o7rings and the wave washer onto the rotor and disc. Then center the rotor and disc, in the valve body, on the rotor seal.

Lower the cover onto the valve body and rotor shaft. Then install the cover holding screws. Before tightening the screws, install the valve cam and gear. Then, turn the rotor (clockwise only) to service position. Tighten the screws using a criss7cross pattern. If a torque wrench is available, torque to 30740 inch pounds.

switch

valve cam & gear

SEE NOZZLE

ASSEMBLY SERVICE,

SECTION 3



flow plug (backwash



and fast rinse flow



rate control)



rotor & disc



o±ring

wear strip



seal

rotor seal

cross±section

drain seal

view



nozzle &



venturi seal

Lubricate the gear on the motor, and the valve cam gear with Molykote grease, or other high quality gear lubricant.

Be sure to orient switch as shown, with lever toward the cam.
