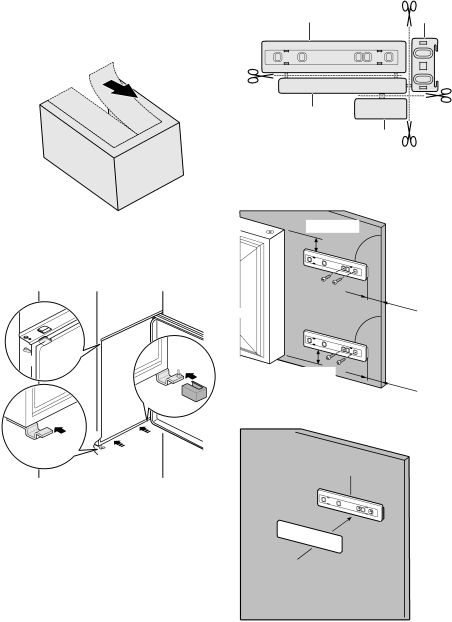

5.Remove the correct part from the hinge cover (E). Make sure to remove the part DX, in the case of right hinge, SX in op- posite case.
electrolux 11
HaHb
Hc
Hd
8.Install the part (Ha) on the inner side of the kitchen furniture.
6.Attach the covers (C, D) to the lugs and the hinge holes.
Install the vent grille (B).
Attach the hinge covers (E) to the hinge.
ca. 50 mm
90° |
21 mm |
90° |
D
C
E
ca. 50 mm | 21 mm |
|
9. Push the part (Hc) on the part (Ha).
E
B
7.Disconnect the parts (Ha), (Hb), (Hc) and (Hd).
Ha
Hc
10.Open the appliance door and the kitchen furniture door at an angle of 90°.
Insert the small square (Hb) into guide (Ha).
