Installation

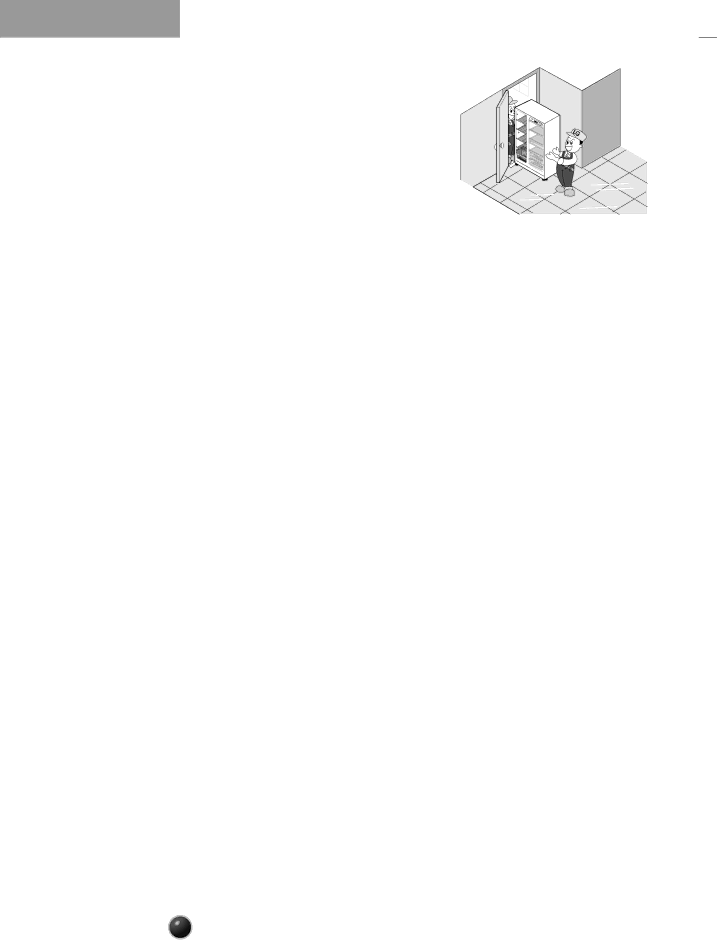

Pass the Pass the refrigerator laterally through the access

refrigerator door as shown in the right figure.

Before installation

Mount the freezer and refrigerator compartment doors

Mount them in the reverse sequence of removal after they pass through the access door.

Water supply installation

Automatic icemaker operation needs water pressure of 21~121 psi (1.5~8.5 kgf/cm2) (That is, a paper cup (6 oz. or 180 cc) will be fully filled within

3 seconds.)

If water pressure does not reach the rating 21 psi (1.5 kgf/cm2) or below, it is necessary to purchase a separate pressure pump for normal automatic icemaking and cool water feed.

Keep the total length of the feed water pipe tube within 26’ (8 m). Be careful for the tube to avoid being kinked. If the tube is 26’ (8 m) or longer it may cause trouble in water feed.

Install the water supply line where it will not be affected by heat.

Warning

Disposal of the old appliance

Connect to a potable water supply only.

This appliance contains fluids (refrigerant and lubricant) and is made of parts and materials which are reusable and/or recyclable.

All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For recycling, please contact the local recycling authority.
