Page 8

Installation

The following instructions are intended for a qualified installer so that the installation and maintenance proceedures may be followed in the most professional and expert manner possible.

Important: Unplug the electrical connection before performing any maintenance or regulation upkeep work.

Installation of built-in hobs

The electric hobs are prepared with protection degree against excessive heating of Y type, it is therefore possible to instal them next to furniture which is higher than the worktop. For a correct installation of the hob the following precautions must be followed:

a)The hob may be located in a kitchen, a kitchen/diner or bed sitting room, but not in a bathroom or shower room.

b)The hoods must be installed according to the requirements in the hood handbook.

c)The dimensions of the cutout for the appliance must be those indicated in the figure. Clamps are provided to fasten the hob to worktops measuring from 20 to 40 mm in thickness. To fasten the hob securely, it is recommended that all the clamps be used.

55mm

N.B: Use the clamps contained in the "accessory kit."

d)In case a wooden panel should be fitted under the top for insulation, it will have be fitted at a minimum distance of 20 mm from the inferior part of the top.

Important: When installing the hob on a built-in oven, the oven should be placed on two wooden strips; in the case of a joining cabinet surface, remember to leave a space of at least 45 x 560 mm at the back.

.

45

mm.

mm



560





When installing on a built-in oven without forced ventilation, ensure that there are air inlets and outlets for ventilating the interior of the cabinet adequately. Assembly examples are given in figs.

475 mm

555 mm

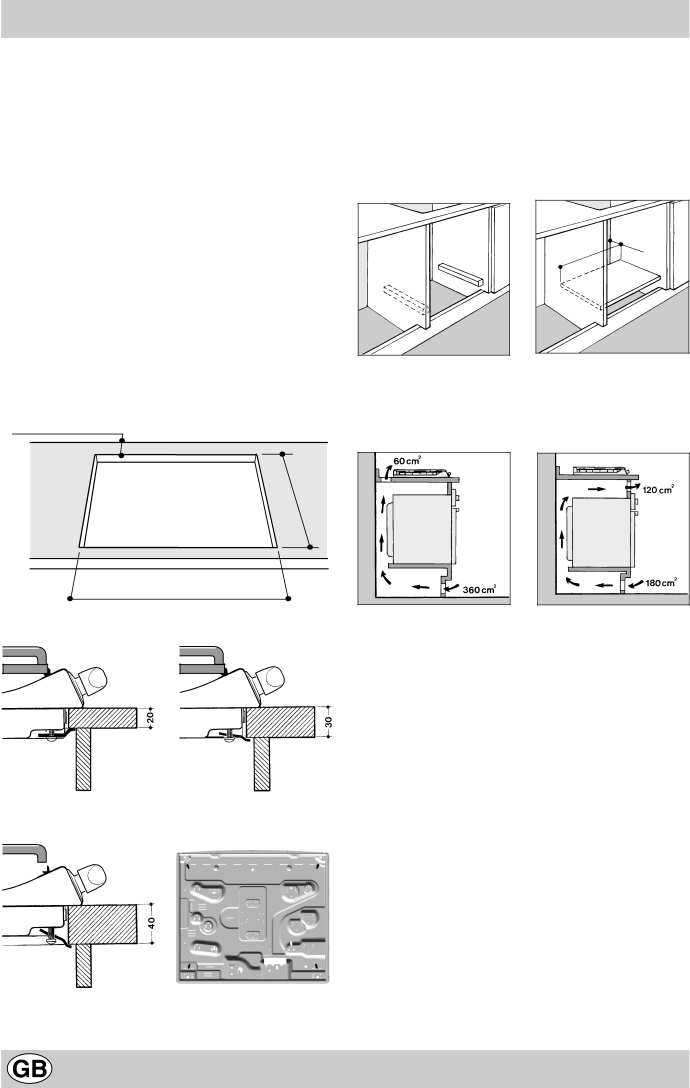

Fastening Clamps - Assembly Diagram

Clamp Position for

Clamp Position for

H=20mm top

H=30mm top





Front













Clamp Position for



H=40mm top

Back

8
