Whirlpool 8ET20NK, 8ET18NK manual Changing the light bulbs, Removing the base grille

Page 13

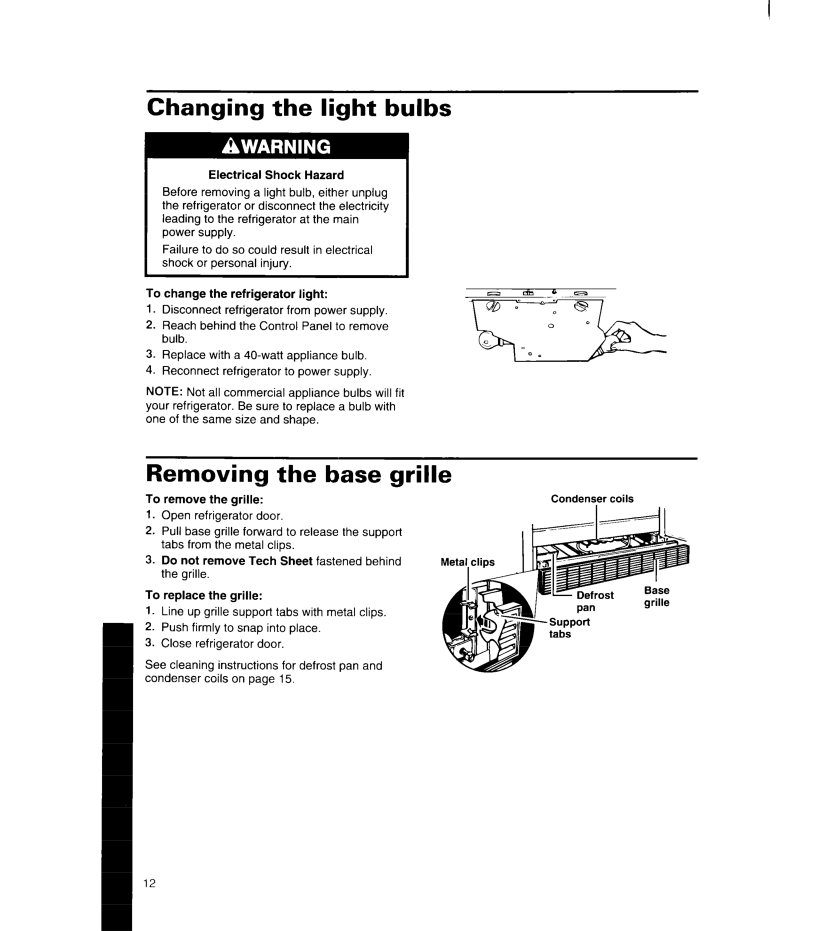

Changing the light bulbs

I

Electrical Shock Hazard



Before removing a light bulb, either unplug the refrigerator or disconnect the electricity leading to the refrigerator at the main power supply.

Failure to do so could result in electrical shock or personal injury.

To change the refrigerator light:

1.Disconnect refrigerator from power supply.

2.Reach behind the Control Panel to remove bulb.

3.Replace with a 40-watt appliance bulb.

4.Reconnect refrigerator to power supply.

NOTE: Not all commercial appliance bulbs will fit your refrigerator. Be sure to replace a bulb with one of the same size and shape.

Removing the base grille

To remove the grille:

1.Open refrigerator door.

2.Pull base grille forward to release the support tabs from the metal clips.

3.Do not remove Tech Sheet fastened behind the grille.

To replace the grille:

1.Line up grille support tabs with metal clips.

2.Push firmly to snap into place.

3.Close refrigerator door.

See cleaning instructions for defrost pan and condenser coils on page 15.

12
