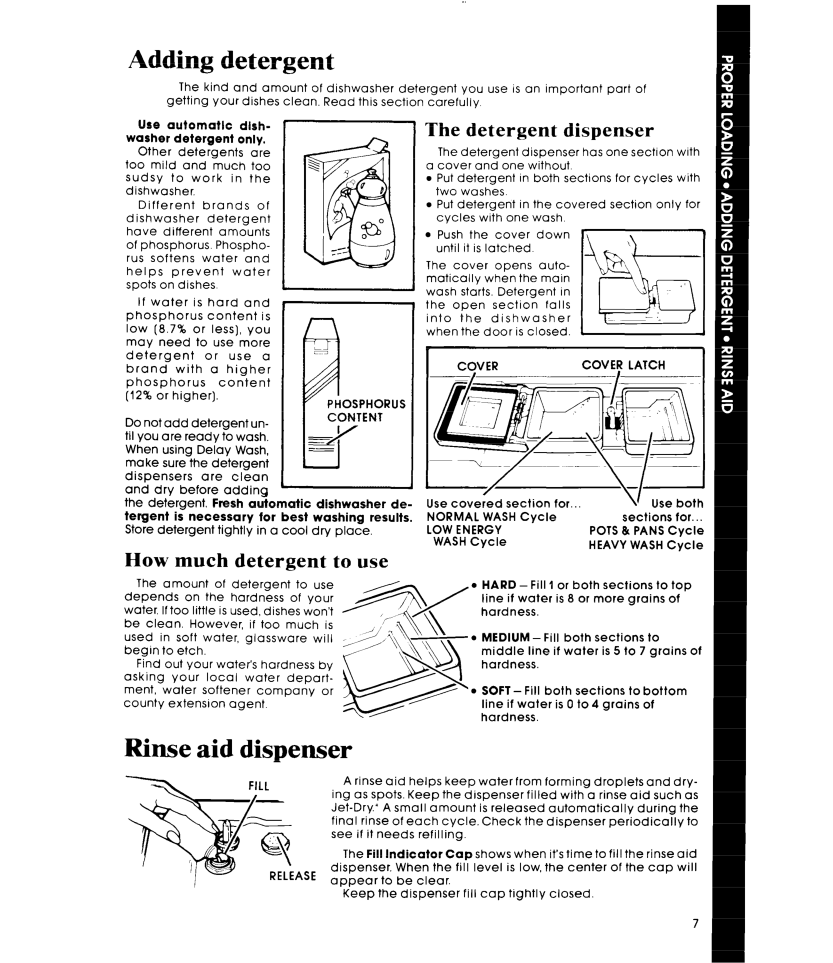

Adding detergent

The kind and amount of dishwasher detergent you use is an important part of getting your dishes clean. Read this section carefully.

Use automatic dlsh- washer detergent only.

Other detergents are too mild and much too sudsy to work in the dishwasher.

Different brands of

dishwasher detergent have different amounts of phosphorus. Phospho- rus softens water and

helps prevent water spots on dishes.

If water is hard and

phosphorus content is low (8.7% or less], you may need to use more

detergent or use a

brand with a higher

phosphorus content (12% or higher).

Do not add detergent un- til you are ready to wash. When using Delay Wash, make sure the detergent

dispensers are clean and dry before adding

the detergent. Fresh automatic dishwasher de-

tergent is necessary for best washing results. Store detergent tightly in a cool dry place.

1The detergent dispenser

The detergent dispenser has one section with a cover and one without.

l Put detergent in both sections for cycles with two washes.

l Put detergent in the covered section only for cycles with one wash.

l Push the cover down until it is latched.

The cover opens auto- matically when the main wash starts. Detergent in the open section falls into the dishwasher when the door is closed.

COVER COVER LATCH

Use covered section for..	1’ Use	both
NORMAL WASH Cycle	sections	for.
LOW ENERGY	POTS & PANS Cycle
WASH Cycle	HEAVY WASH Cycle

How much detergent to use

The amount of detergent to use depends on the hardness of your Water. If too little is used, dishes won’t be clean. However, if too much is used in soft water, glassware will begin to etch.

Find out your water’s hardness by asking your local water depart-

ment, water softener company or county extension agent.

l HARD-Fill 1 or both sections to top

l MEDIUM - Fill both sections to middle line if water is 5 to 7 grains of

Fill both sections to bottom

hardness.

Rinse aid dispenser

A rinse aid helps keep water from forming droplets and dry- ing as spots. Keep the dispenser filled with a rinse aid such as

Jet-Dry.” A small amount is released automatically during the

final rinse of each cycle. Check the dispenser periodically to see if it needs refilling.

The Fill Indicator Cap shows when it’s time to fill the rinse aid dispenser. When the fill level is low, the center of the cap will appear to be clear.

Keep the dispenser fill cap tightly closed.
