Frigidaire FGB24S5AB, FGB24S5AS, FGB24L2AS To Remove and Replace Oven Bottom Single Oven Models

Page 11

Single Oven Models Only (continued)

General Cleaning (continued)

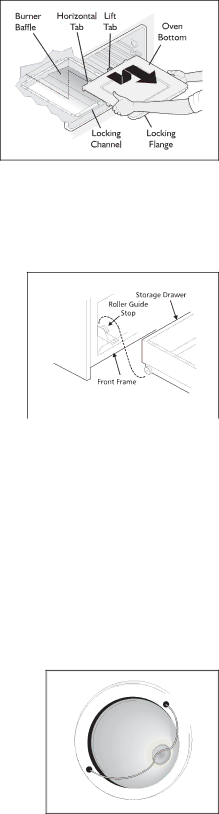

To Remove and Replace Oven Bottom (Single Oven Models)

To Remove the Oven Bottom:

1. Lift up the lift tab at the back of the oven bottom

2. Slide oven bottom out, and lift it up and out.

To Replace the Oven Bottom:

1. Slide horizontal tabs on back of oven bottom into the holes at the back of oven cavity.

2. Lower the front of the oven bottom so locking flange fits into locking channel.

3. Replace lift tab to hold oven bottom in place.

Storage Drawer (Single Oven, Self-Clean Models) or Broiler Drawer ( Single Oven, Non Self-Clean Models)

The drawer can be removed to facilitate cleaning under the wall oven. Use care when handling the drawer.

To Remove the Storage or Broiler Drawer

1.Open and empty the drawer of all utensils.

2.Pull drawer out to drawer stop.

3.Tilt the drawer down and pull it out over the rollers. Or, tilt the drawer up and pull it out

over the rollers (larger storage drawer models only).

To Replace the Storage or Broiler Drawer





1.

Insert the rear end of the drawer into the opening.





2.

Fit the end rollers onto the guide rails.









3.

Hold the drawer in a horizontal position, then push in. Or, push the drawer in until it stops,







then lift to allow the rollers to clear the roller guide stop and push in (larger storage drawer

Storage or Broiler Drawer



models only).













Flammable materials should not be stored in an oven or in the storage or broiler drawer or compartment (if equipped). This includes paper, plastic and cloth items, such as cookbooks, plasticware and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans, on or near the appliance. Flammable materials may explode and result in fire or property damage.

Changing Oven Light

The oven light automatically turns on when the door is opened. Use the rocker switch located on the control panel to turn the oven light on or off when the door is closed.

Be sure the oven is unplugged and all parts are COOL before replacing the oven light. Wear a leather-faced glove for protection against possible broken glass.

To Change the Oven Light

1. Turn electrical power off at the main source or unplug the oven.

2. Press wire holder to one side to release the glass shield (some models).

3.Replace bulb with a new 40 watt appliance bulb.

4.Replace glass shield in socket and snap wire holder into place (some models).

5. Turn power back on again at the main source (or plug the oven back in).

6. The clock (if equipped) will then need to be reset. To reset, see Setting the Clock and Minute Timer in this Owner's Guide.
