Billy Goat BC2401IC, BC2402H Ty Wrap Qty, Literature Assy P/N, Instruction Labels, Engine Labels

Page 4

12

LITERATURE ASSY P/N 500263

13 CONTROLS

Throttle Control

Literature Checklist

Ty Wrap 900407

Qty: (4)

Check

Owner's

Manual

Check

Warranty

Card

Owner's Manual

500264

Warranty

Card 400972

BRIGGS &

STRATTON

Briggs engines have a choke type carburetor that is operated by moving the throttle control to the full start position. See STARTING section, see page 5.

START

STOP

HONDA

Honda engines have a separate choke lever that is operated by pulling back along with moving the throttle control to the full start position if necessary. See STARTING section, see page 5.

START

Pull to choke

STOP

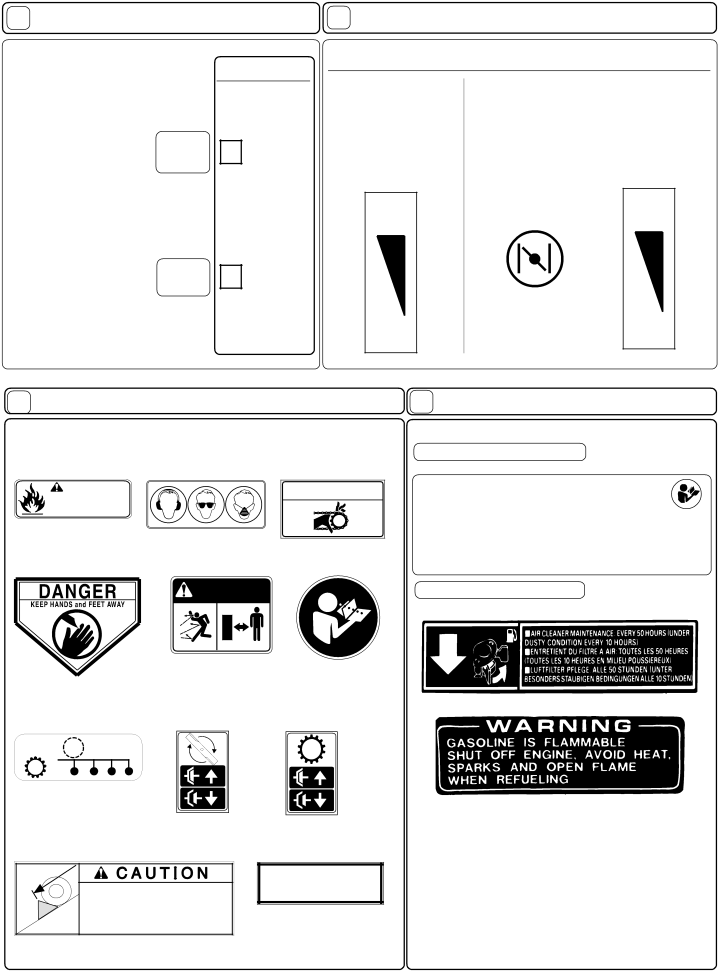

14INSTRUCTION LABELS

These labels should be included on your Brush Cutter. If any of these labels are damaged, replace them before putting this equipment into operation. Item and part numbers are given to help in ordering replace- ment labels..

15ENGINE LABELS

Briggs & Stratton



WARNING







EXPLOSIVE FUEL

400268











STOP ENGINE AND ALLOW T O







COOL BEFORE REFUELING.

890254

Label Do Not Fill While





Engine Is Hot



Label Ear Eye Breathing Item

Item 63 Part No.400268



No. 188 Part No. 890254

WARNING

900327

Label Warning Guards Item 185 Part No.900327

Read Owner’s Manual Before Operating.

Lire le manuel d’utilisation avant la mise en route.

Vor Inbetriebnahme Bedienungs - und Wartungsanleitung lesen.

Favor leer las instrucciones de operacion'

antes de operar el motor.



'

'

Consultare il Manuale Uso e Manutenzione prima dell utilizzo.

..

..



Las Skotselinstruktionen Innan Start.



Label Danger Keep Hands and

Feet Away

Item 180 PartNo.400424

R N 1 2 3

Label Shift BC2400

Item No. 186

Part No. 500202

DANGER

Honda



810736

Label Danger Flying

Label Read Owner's

Material Item 184

Manual Item No. 187

Part No.810736

Part No. 890301



500177

500176

Label Clutch Blade

Label Clutch Drive

Item 192

Item 191

Part No.500177

Part No.500176

WHEELS MUST BE CHOCKED

OR BLOCKED WHEN UNIT IS

PARKED ON A SLOPE.

500168

Label Chock Wheels Item No. 189 Part No. 500168

US DESIGN PATENT

NO: D386768

PART NO. 500279

Label Patent No

Item 190 Part No.500279

Part No. 500264

Page 4 of 12

Form No. F051903A

Image 4
