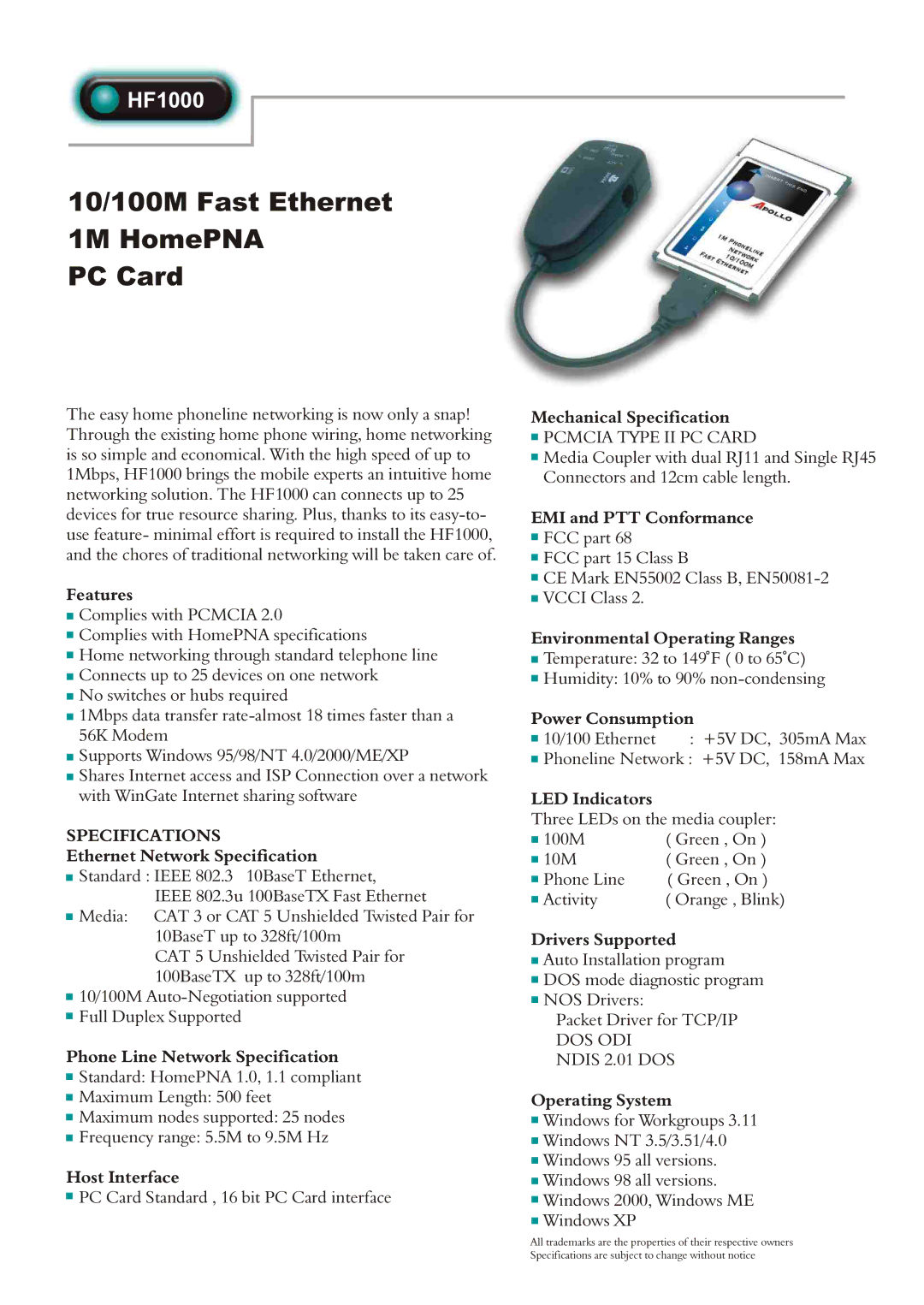

Abocom HF1000 specifications 10/100M Fast Ethernet 1M HomePNA PC Card, Specifications

HF1000

10/100M Fast Ethernet

1M HomePNA

PC Card

The easy home phoneline networking is now only a snap! Through the existing home phone wiring, home networking is so simple and economical. With the high speed of up to 1Mbps, HF1000 brings the mobile experts an intuitive home networking solution. The HF1000 can connects up to 25 devices for true resource sharing. Plus, thanks to its easy-to- use feature- minimal effort is required to install the HF1000, and the chores of traditional networking will be taken care of.

Features

Complies with PCMCIA 2.0

Complies with HomePNA specifications

Home networking through standard telephone line

Connects up to 25 devices on one network

No switches or hubs required

1Mbps data transfer rate-almost 18 times faster than a 56K Modem

Supports Windows 95/98/NT 4.0/2000/ME/XP

Shares Internet access and ISP Connection over a network with WinGate Internet sharing software

SPECIFICATIONS

Ethernet Network Specification

Standard : IEEE 802.3 10BaseT Ethernet, IEEE 802.3u 100BaseTX Fast Ethernet

Media: CAT 3 or CAT 5 Unshielded Twisted Pair for 10BaseT up to 328ft/100m

CAT 5 Unshielded Twisted Pair for 100BaseTX up to 328ft/100m

10/100M Auto-Negotiation supported

Full Duplex Supported

Phone Line Network Specification

Standard: HomePNA 1.0, 1.1 compliant

Maximum Length: 500 feet

Maximum nodes supported: 25 nodes

Frequency range: 5.5M to 9.5M Hz

Host Interface

PC Card Standard , 16 bit PC Card interface

Mechanical Specification

PCMCIA TYPE II PC CARD

Media Coupler with dual RJ11 and Single RJ45 Connectors and 12cm cable length.

EMI and PTT Conformance

FCC part 68

FCC part 15 Class B

CE Mark EN55002 Class B, EN50081-2 VCCI Class 2.

Environmental Operating Ranges

Temperature: 32 to 149 F ( 0 to 65 C) Humidity: 10% to 90% non-condensing

Power Consumption

10/100 Ethernet : +5V DC, 305mA Max Phoneline Network : +5V DC, 158mA Max

LED Indicators

Three LEDs on the media coupler:

100M	( Green , On )
10M	( Green , On )
Phone Line	( Green , On )
Activity	( Orange , Blink)

Drivers Supported

Auto Installation program

DOS mode diagnostic program

NOS Drivers:

Packet Driver for TCP/IP

DOS ODI

NDIS 2.01 DOS

Operating System

Windows for Workgroups 3.11

Windows NT 3.5/3.51/4.0

Windows 95 all versions.

Windows 98 all versions.

Windows 2000, Windows ME

Windows XP

All trademarks are the properties of their respective owners

Specifications are subject to change without notice
