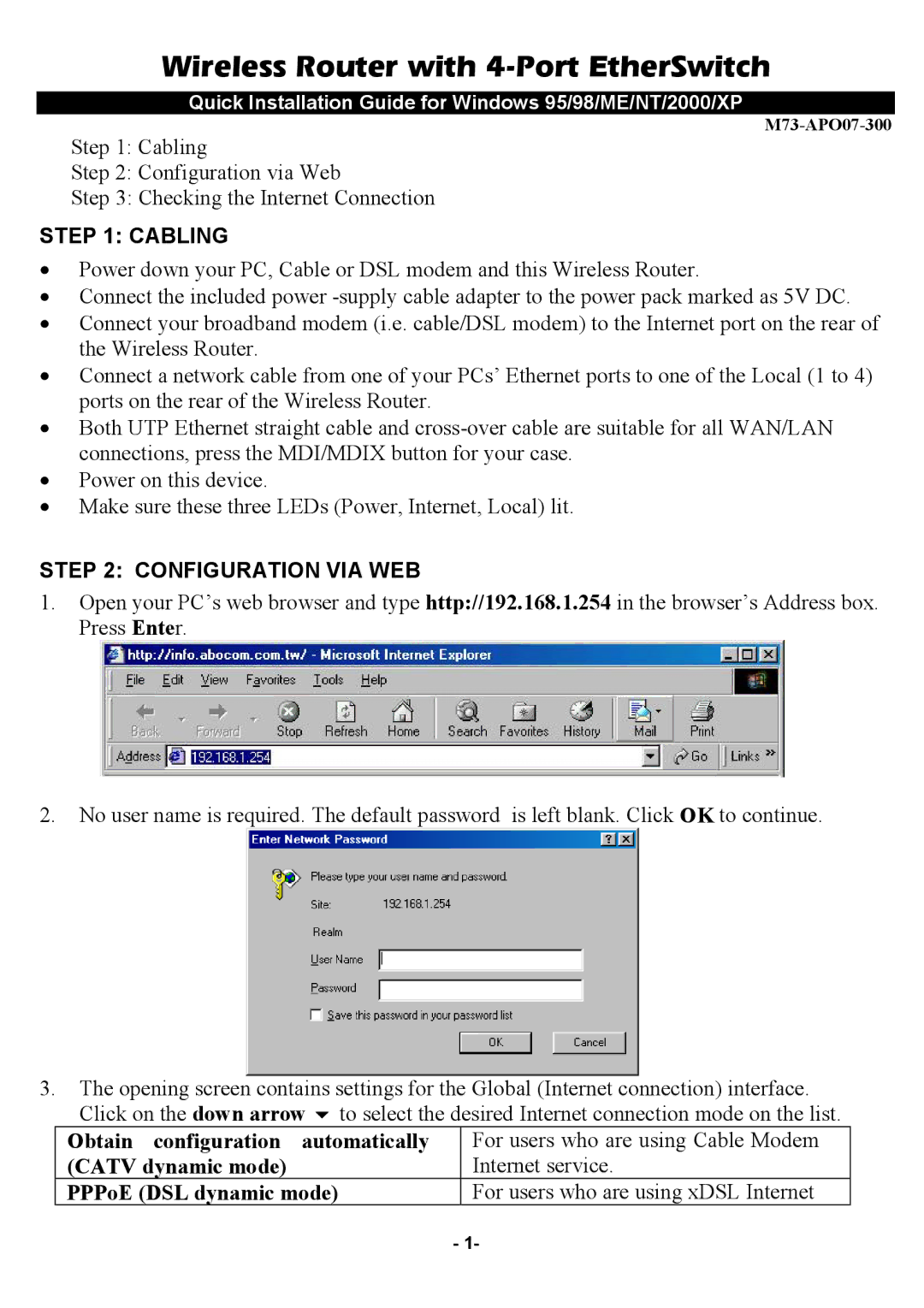

Wireless Router with 4-Port EtherSwitch

Quick Installation Guide for Windows 95/98/ME/NT/2000/XP

M73-APO07-300

Step 1: Cabling

Step 2: Configuration via Web

Step 3: Checking the Internet Connection

STEP 1: CABLING

•Power down your PC, Cable or DSL modem and this Wireless Router.

•Connect the included power -supply cable adapter to the power pack marked as 5V DC.

•Connect your broadband modem (i.e. cable/DSL modem) to the Internet port on the rear of the Wireless Router.

•Connect a network cable from one of your PCs’ Ethernet ports to one of the Local (1 to 4) ports on the rear of the Wireless Router.

•Both UTP Ethernet straight cable and cross-over cable are suitable for all WAN/LAN connections, press the MDI/MDIX button for your case.

•Power on this device.

•Make sure these three LEDs (Power, Internet, Local) lit.

STEP 2: CONFIGURATION VIA WEB

1.Open your PC’s web browser and type http://192.168.1.254 in the browser’s Address box. Press Enter.

2.No user name is required. The default password is left blank. Click OK to continue.

3.The opening screen contains settings for the Global (Internet connection) interface. Click on the down arrow to select the desired Internet connection mode on the list.

Obtain configuration automatically	For users who are using Cable Modem
(CATV dynamic mode)	Internet service.
PPPoE (DSL dynamic mode)	For users who are using xDSL Internet

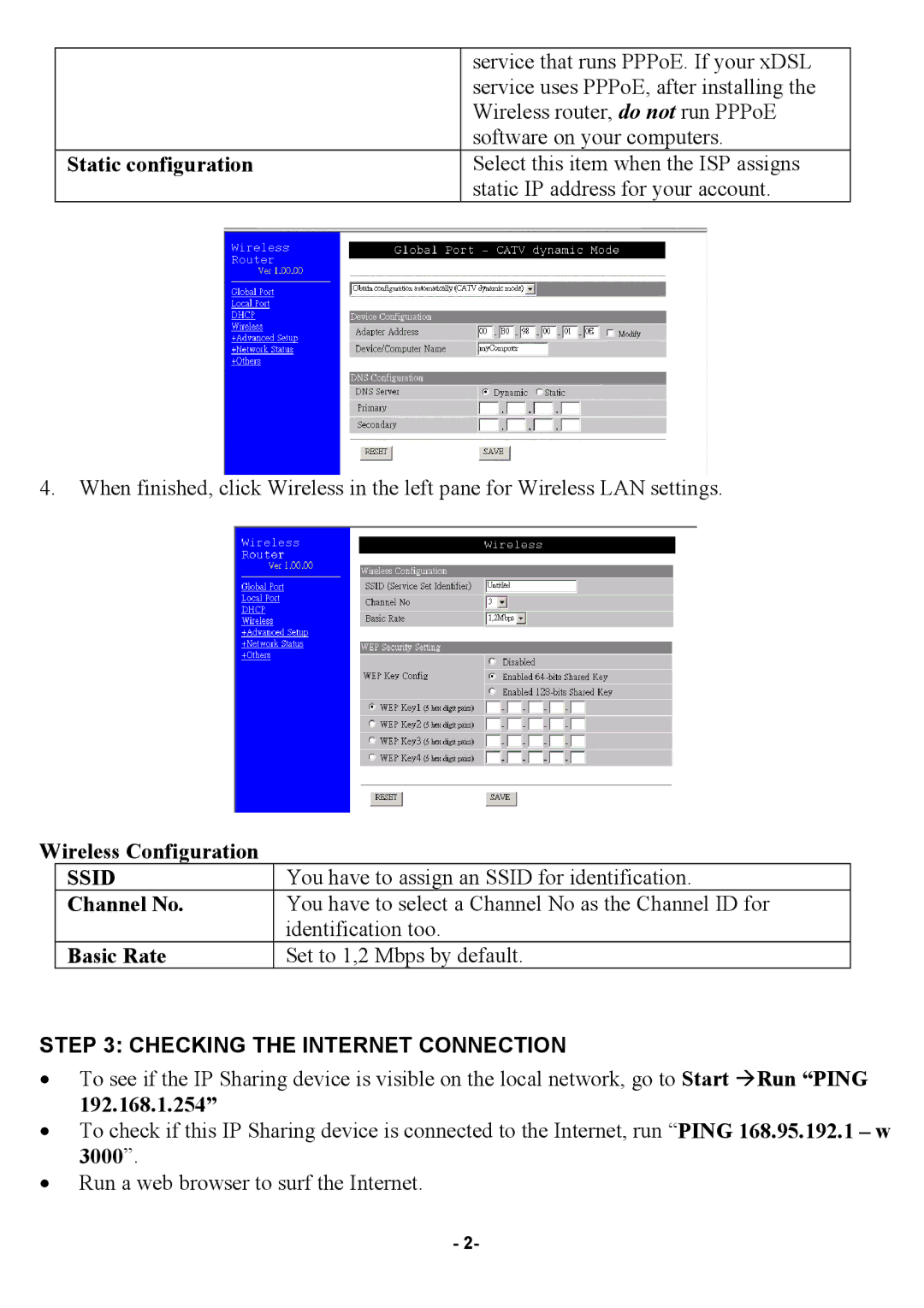

- 1-
