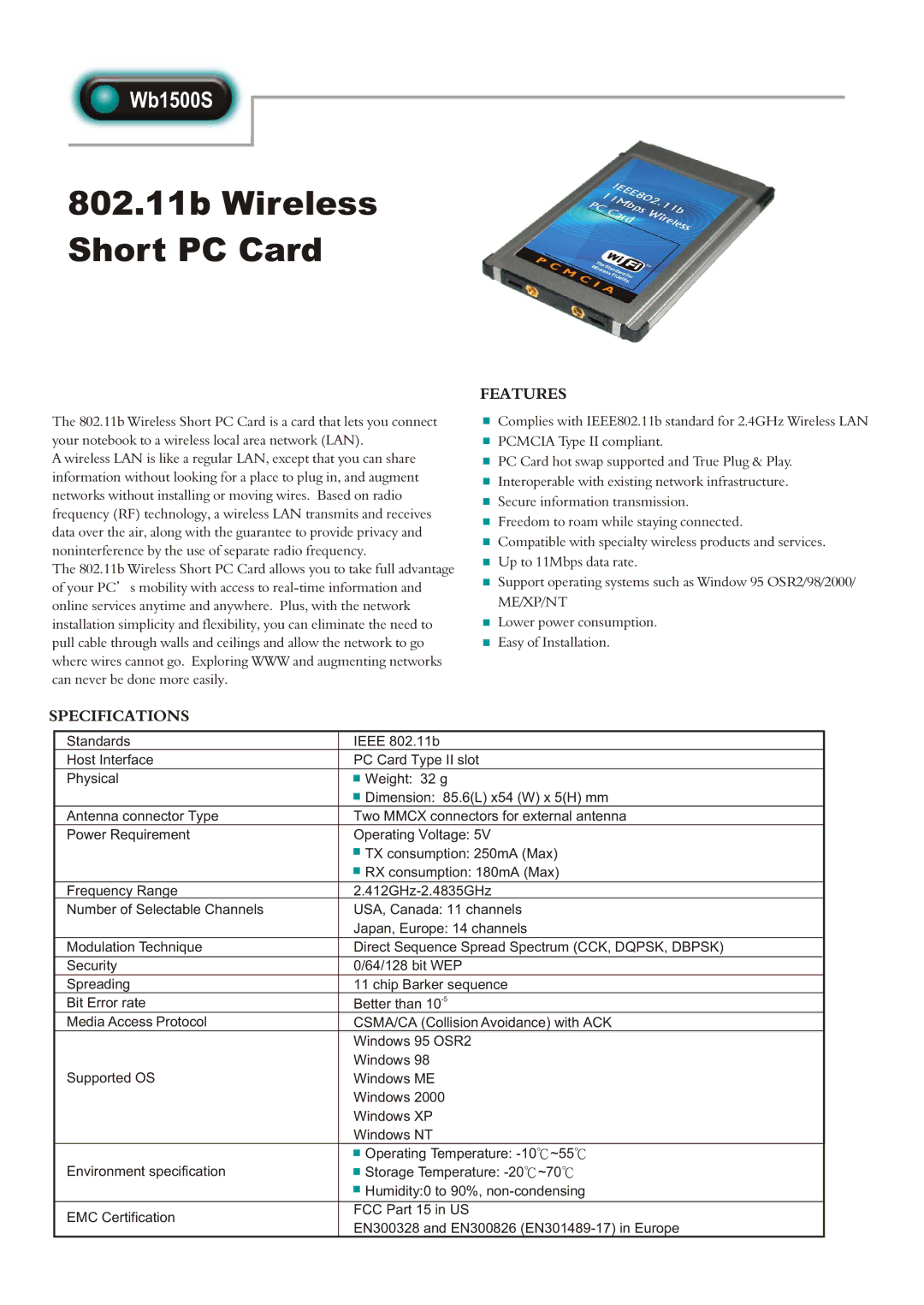

Wb1500S

802.11b Wireless

Short PC Card

The 802.11b Wireless Short PC Card is a card that lets you connect your notebook to a wireless local area network (LAN).

A wireless LAN is like a regular LAN, except that you can share information without looking for a place to plug in, and augment networks without installing or moving wires. Based on radio frequency (RF) technology, a wireless LAN transmits and receives data over the air, along with the guarantee to provide privacy and noninterference by the use of separate radio frequency.

The 802.11b Wireless Short PC Card allows you to take full advantage of your PC s mobility with access to real-time information and online services anytime and anywhere. Plus, with the network installation simplicity and flexibility, you can eliminate the need to pull cable through walls and ceilings and allow the network to go where wires cannot go. Exploring WWW and augmenting networks can never be done more easily.

FEATURES

Complies with IEEE802.11b standard for 2.4GHz Wireless LAN

PCMCIA Type II compliant.

PC Card hot swap supported and True Plug & Play.

Interoperable with existing network infrastructure.

Secure information transmission.

Freedom to roam while staying connected.

Compatible with specialty wireless products and services.

Up to 11Mbps data rate.

Support operating systems such as Window 95 OSR2/98/2000/ ME/XP/NT

Lower power consumption. Easy of Installation.

SPECIFICATIONS

Standards

IEEE 802.11b



Host Interface

PC Card Type II slot



Physical

Weight: 32 g





Dimension: 85.6(L) x54 (W) x 5(H) mm

Antenna connector Type

Two MMCX connectors for external antenna

Power Requirement

Operating Voltage: 5V





TX consumption: 250mA (Max)



RX consumption: 180mA (Max)

Frequency Range

2.412GHz-2.4835GHz



Number of Selectable Channels

USA, Canada: 11 channels





Japan, Europe: 14 channels



Modulation Technique

Direct Sequence Spread Spectrum (CCK, DQPSK, DBPSK)

Security

0/64/128 bit WEP



Spreading

11 chip Barker sequence



Bit Error rate

Better than 10-5



Media Access Protocol

CSMA/CA (Collision Avoidance) with ACK



Windows 95 OSR2



Supported OS

Windows 98



Windows ME





Windows 2000





Windows XP





Windows NT



Environment specification

Operating Temperature: -10

~55

Storage Temperature: -20

~70



Humidity:0 to 90%, non-condensing

EMC Certification

FCC Part 15 in US



EN300328 and EN300826 (EN301489-17) in Europe



Page 1
