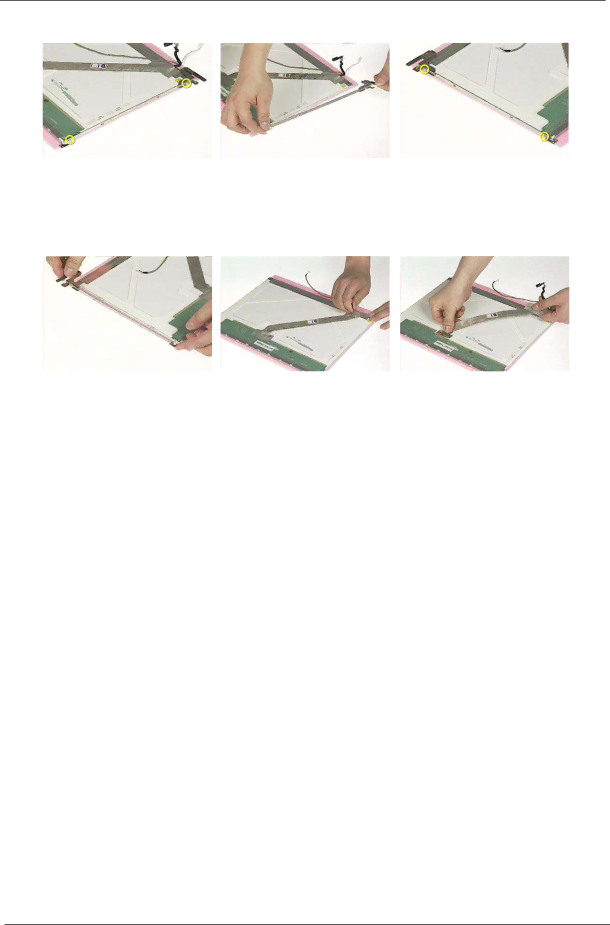

13.Remove the left bracket as the picture shows.

14.Tear off the tape fastening the LCD cable.

15.Tear off the the LCD cable fastening the LCD cable, then remove it..
