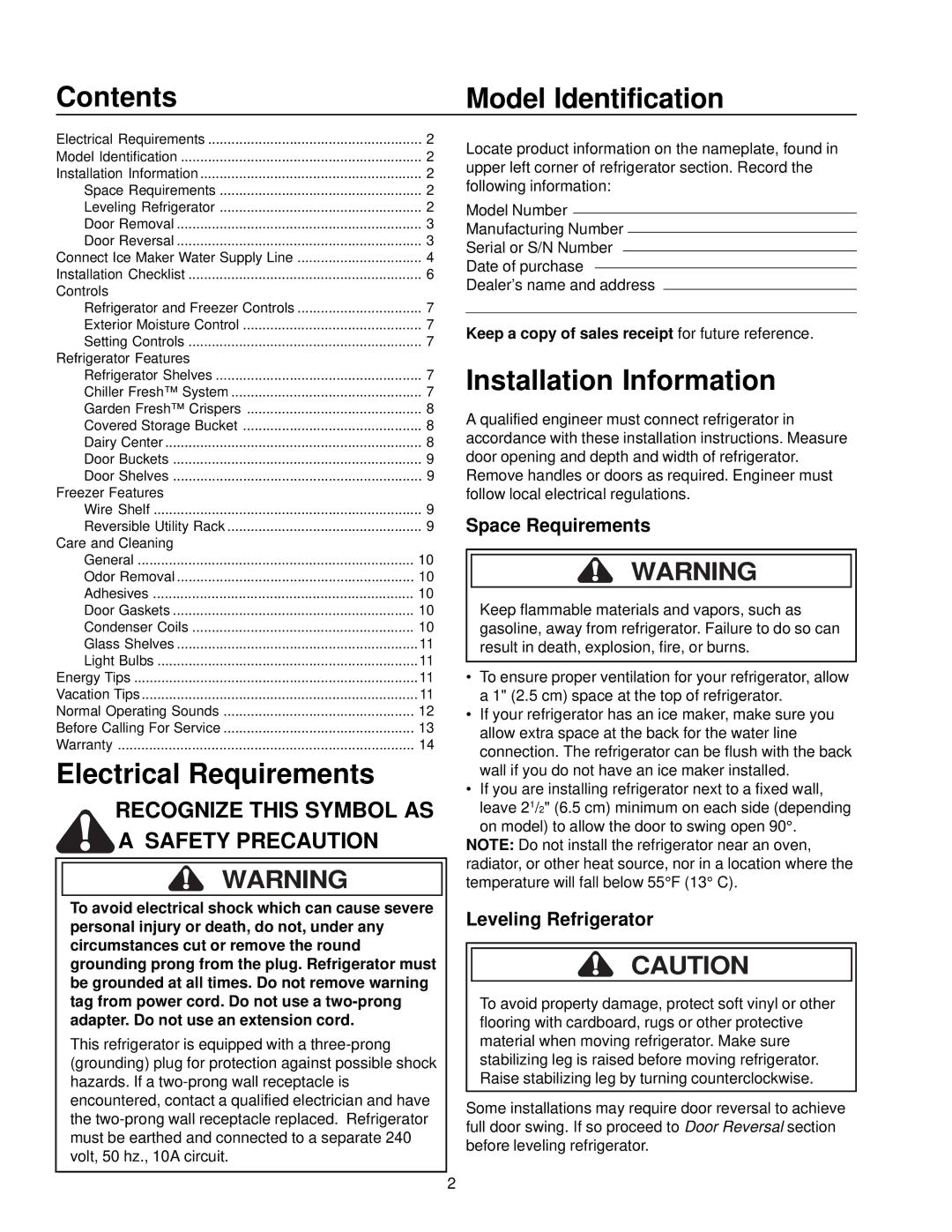

Contents | Model Identification |
Electrical Requirements | 2 |
Model Identification | 2 |
Installation Information | 2 |
Space Requirements | 2 |
Leveling Refrigerator | 2 |
Door Removal | 3 |
Door Reversal | 3 |
Connect Ice Maker Water Supply Line | 4 |
Installation Checklist | 6 |
Controls |
|
Refrigerator and Freezer Controls | 7 |
Exterior Moisture Control | 7 |
Setting Controls | 7 |
Refrigerator Features |
|
Refrigerator Shelves | 7 |
Chiller Fresh™ System | 7 |
Garden Fresh™ Crispers | 8 |
Covered Storage Bucket | 8 |
Dairy Center | 8 |
Door Buckets | 9 |
Door Shelves | 9 |
Freezer Features |
|
Wire Shelf | 9 |
Reversible Utility Rack | 9 |
Care and Cleaning |
|
General | 10 |
Odor Removal | 10 |
Adhesives | 10 |
Door Gaskets | 10 |
Condenser Coils | 10 |
Glass Shelves | 11 |
Light Bulbs | 11 |
Energy Tips | 11 |
Vacation Tips | 11 |
Normal Operating Sounds | 12 |
Before Calling For Service | 13 |
Warranty | 14 |
Electrical Requirements
!RECOGNIZE THIS SYMBOL AS
A SAFETY PRECAUTION
!WARNING
To avoid electrical shock which can cause severe personal injury or death, do not, under any circumstances cut or remove the round grounding prong from the plug. Refrigerator must be grounded at all times. Do not remove warning tag from power cord. Do not use a
This refrigerator is equipped with a
Locate product information on the nameplate, found in upper left corner of refrigerator section. Record the following information:
Model Number
Manufacturing Number
Serial or S/N Number
Date of purchase
Dealer’s name and address
Keep a copy of sales receipt for future reference.
Installation Information
A qualified engineer must connect refrigerator in accordance with these installation instructions. Measure door opening and depth and width of refrigerator. Remove handles or doors as required. Engineer must follow local electrical regulations.
Space Requirements
!WARNING
Keep flammable materials and vapors, such as gasoline, away from refrigerator. Failure to do so can result in death, explosion, fire, or burns.
•To ensure proper ventilation for your refrigerator, allow a 1" (2.5 cm) space at the top of refrigerator.
•If your refrigerator has an ice maker, make sure you allow extra space at the back for the water line connection. The refrigerator can be flush with the back wall if you do not have an ice maker installed.
•If you are installing refrigerator next to a fixed wall, leave 21/2" (6.5 cm) minimum on each side (depending
on model) to allow the door to swing open 90°. NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor in a location where the temperature will fall below 55°F (13° C).
Leveling Refrigerator
!CAUTION
To avoid property damage, protect soft vinyl or other flooring with cardboard, rugs or other protective material when moving refrigerator. Make sure stabilizing leg is raised before moving refrigerator. Raise stabilizing leg by turning counterclockwise.
Some installations may require door reversal to achieve full door swing. If so proceed to Door Reversal section before leveling refrigerator.
2
