American DJ® User Instructions

Space balls

HALOGEN LAMP WARNING!

This fixture is fitted with halogen lamps which are highly susceptible to damage if improperly handled. Never touch lamp with bare fingers as the oil from your hands will shorten lamp life. Also, never move fixture until lamp has had ample time to cool. Remember, lamps are not covered under warranty conditions.

Caution! Always disconnect from main power before replacing lamps or servicing unit. Remember to always replace with same lamps and fuses.

Model: SPACE BALLS

SPECIFICATIONS:

Lamp: 2 x ZB-64514 120V 300W,

Dimensions: 21.5” x 12” x 11”

Weight: 11 lbs.

Supply Voltage: 120V

Fuse: 7A

Working Position: Any Safe position

Duty Cycle: 10 min., on, 10 min. off

Optional: ZB-ADJ300 120V 300W 150 hr. Long Life lamp also available.

Thank you for purchasing this American DJ® product. For your convenience this lighting effect has been lamped and is ready to be used, there is no assembly required. Please read the following instructions before installing or using your new unit.

Product Description:

Dual rotating Star balls on attached base

Operating Instructions:

Unit is ready to be hung or set on flat surface. Be sure not to obstruct cooling vent. Place in a well ventilated area. Fog best results, fog or special effects smoke must be used in order to see the beams of light.

Caution! Never open unit when in use. Always dis- connect main power before servicing or replacing lamp. Remember always replace with same type lamp and fuse.

Lamp replacement: Remove thumb screws of unit and pull out lamp from socket . Remove and replace lamps. When replacing lamp it helps to wiggle side to side slightly while pushing in.

For service, contact your American DJ® dealer.

American DJ® LOS ANGELES, CA. 90058 USA

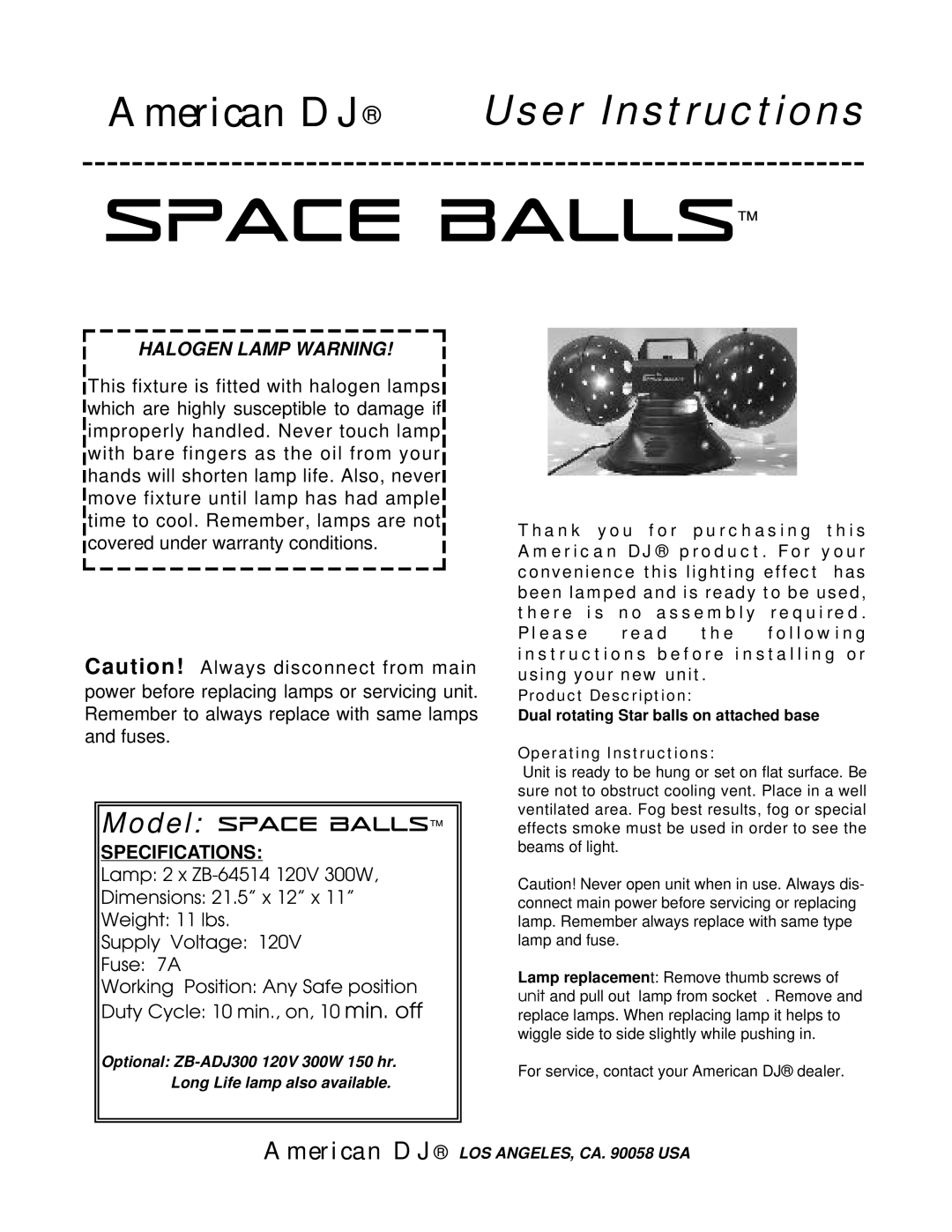

Page 1
Image 1
American DJ Space Balls warranty Space balls, Halogen Lamp Warning, Specifications

Space Balls specifications

American DJ, a renowned name in the world of lighting and audio equipment, has introduced an innovative product known as the Space Balls. This dynamic lighting fixture has quickly become a favorite among DJs, event planners, and entertainment professionals. With its versatile features and advanced technologies, the Space Balls is designed to create mesmerizing visual effects that enhance any performance or event.

One of the standout characteristics of the Space Balls is its unique design. This fixture features a spherical shape that allows for multi-directional movement and light projection. The combination of RGB LED technology provides an incredible spectrum of colors, ensuring each light show can be customized to fit the mood and theme of the event. With the ability to produce vibrant colors, the Space Balls creates an immersive atmosphere that captivates audiences.

The Space Balls leverages advanced DMX technology, offering users the ability to control multiple fixtures in a synchronized manner. This feature is particularly beneficial for larger events where lighting precision is crucial. The ability to connect multiple units and control them from a single point enables DJs and lighting technicians to unleash their creativity and choreograph stunning light displays.

Another key feature of the Space Balls is its auto and sound-active modes. For those looking for a hassle-free setup, the auto mode allows the fixture to run pre-programmed light shows without the need for constant control. The sound-active mode, on the other hand, syncs the light output to the music, providing an interactive experience for attendees. This adaptability makes the Space Balls ideal for various applications, from nightclubs to weddings.

The durability of the Space Balls adds to its appeal, as it is built to withstand the rigors of frequent transport and setup. Its lightweight construction and compact design make it easy to integrate into any rig, while the robust outer casing ensures it can handle the demands of a busy DJ or event space.

In summary, the American DJ Space Balls is a multifunctional lighting fixture that combines innovative design with cutting-edge technology. Its unique spherical shape, vibrant RGB colors, and versatile control options make it a powerful tool for creating unforgettable light displays. Whether for a small party or a large concert, the Space Balls brings an exciting visual element that enhances the overall entertainment experience.
