American Standard manual Cadet Corner Whirlpool, Model Number, 2775.018 2775.018H, Usable On

Replace XXX with Fixture Color Code

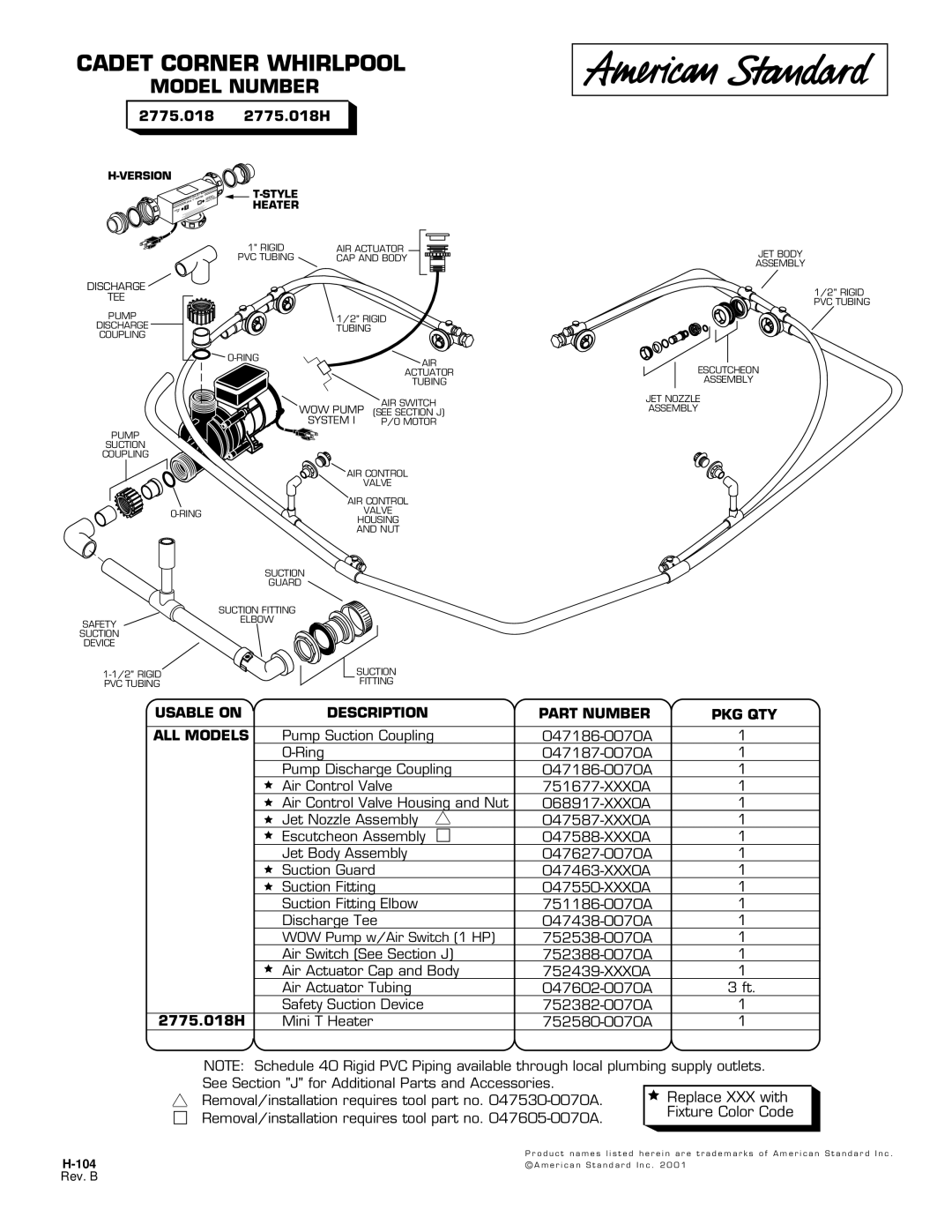

CADET CORNER WHIRLPOOL

MODEL NUMBER

2775.018 2775.018H

H-VERSION

JET	T
ULTRAHEATER	OPRVEORTEHTCEOTARIOENSET
SAFE "T"	PUSH

HEA"TOENR"

T-STYLE HEATER

DISCHARGE

TEE

PUMP

DISCHARGE

COUPLING

PUMP

SUCTION

COUPLING

O-RING

SAFETY

SUCTION

DEVICE

1-1/2" RIGID PVC TUBING

1" RIGID	AIR ACTUATOR	JET BODY
PVC TUBING	CAP AND BODY
		ASSEMBLY
		1/2" RIGID
		PVC TUBING
	1/2" RIGID
	TUBING

O-RING

AIR

	ACTUATOR	ESCUTCHEON
	TUBING	ASSEMBLY
	AIR SWITCH	JET NOZZLE
WOW PUMP		ASSEMBLY
	(SEE SECTION J)
SYSTEM I	P/O MOTOR

AIR CONTROL

VALVE

AIR CONTROL

VALVE

HOUSING

AND NUT

SUCTION

GUARD

SUCTION FITTING

ELBOW

SUCTION

FITTING

USABLE ON	DESCRIPTION	PART NUMBER	PKG QTY
ALL MODELS	Pump Suction Coupling	047186-0070A	1
	O-Ring	047187-0070A	1
	Pump Discharge Coupling	047186-0070A	1
	Air Control Valve	751677-XXX0A	1
	Air Control Valve Housing and Nut	068917-XXX0A	1
	Jet Nozzle Assembly	047587-XXX0A	1
	Escutcheon Assembly	047588-XXX0A	1
	Jet Body Assembly	047627-0070A	1
	Suction Guard	047463-XXX0A	1
	Suction Fitting	047550-XXX0A	1
	Suction Fitting Elbow	751186-0070A	1
	Discharge Tee	047438-0070A	1
	WOW Pump w/Air Switch (1 HP)	752538-0070A	1
	Air Switch (See Section J)	752388-0070A	1
	Air Actuator Cap and Body	752439-XXX0A	1
	Air Actuator Tubing	047602-0070A	3 ft.
	Safety Suction Device	752382-0070A	1
2775.018H	Mini T Heater	752580-0070A	1

H-104

Rev. B

NOTE: Schedule 40 Rigid PVC Piping available through local plumbing supply outlets. See Section "J" for Additional Parts and Accessories.

Removal/installation requires tool part no. 047530-0070A. Removal/installation requires tool part no. 047605-0070A.

P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A m e r i c a n S t a n d a r d I n c .

C A m e r i c a n S t a n d a r d I n c . 2 0 0 1
