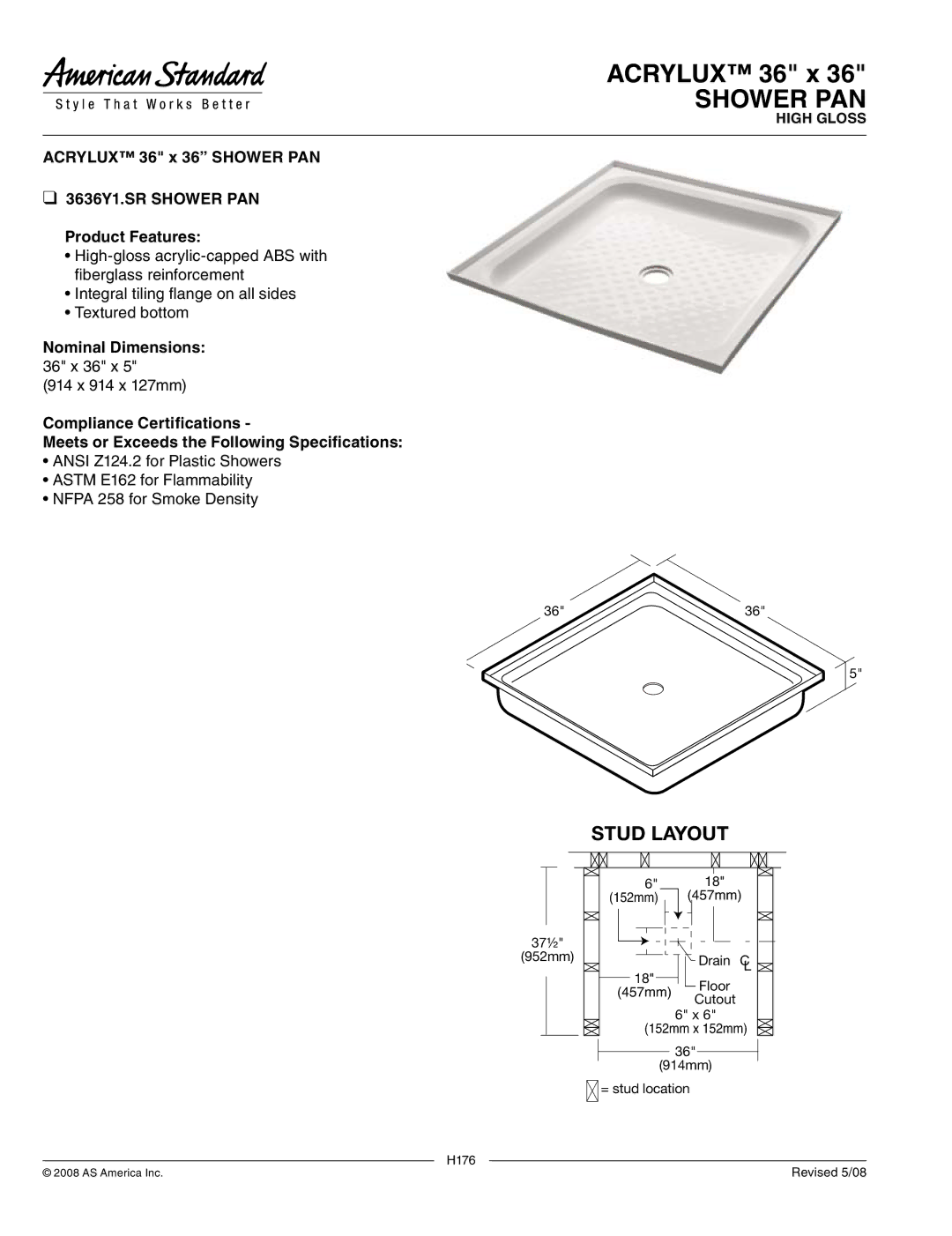

ACRYLUX™ 36" x 36"

SHOWER Pan

HIGH GLOSS

ACRYLUX™ 36" x 36” SHOWER Pan

❑3636Y1.SR SHOWER Pan Product Features:

•High-gloss acrylic-capped ABS with fiberglass reinforcement

•Integral tiling flange on all sides

•Textured bottom

Nominal Dimensions: 36" x 36" x 5"

(914 x 914 x 127mm)

Compliance Certifications -

Meets or Exceeds the Following Specifications:

•ANSI Z124.2 for Plastic Showers

•ASTM E162 for Flammability

•NFPA 258 for Smoke Density

36"

5"

STUD LAYOUT
6"		18"
(152mm)		(457mm)
37½"
(952mm)		Drain C
18"		L
		Floor
(457mm)
		Cutout
		6" x 6"
(152mm x 152mm)
		36"
	(914mm)
= stud location
H176		Revised 5/08
© 2008 AS America Inc.
