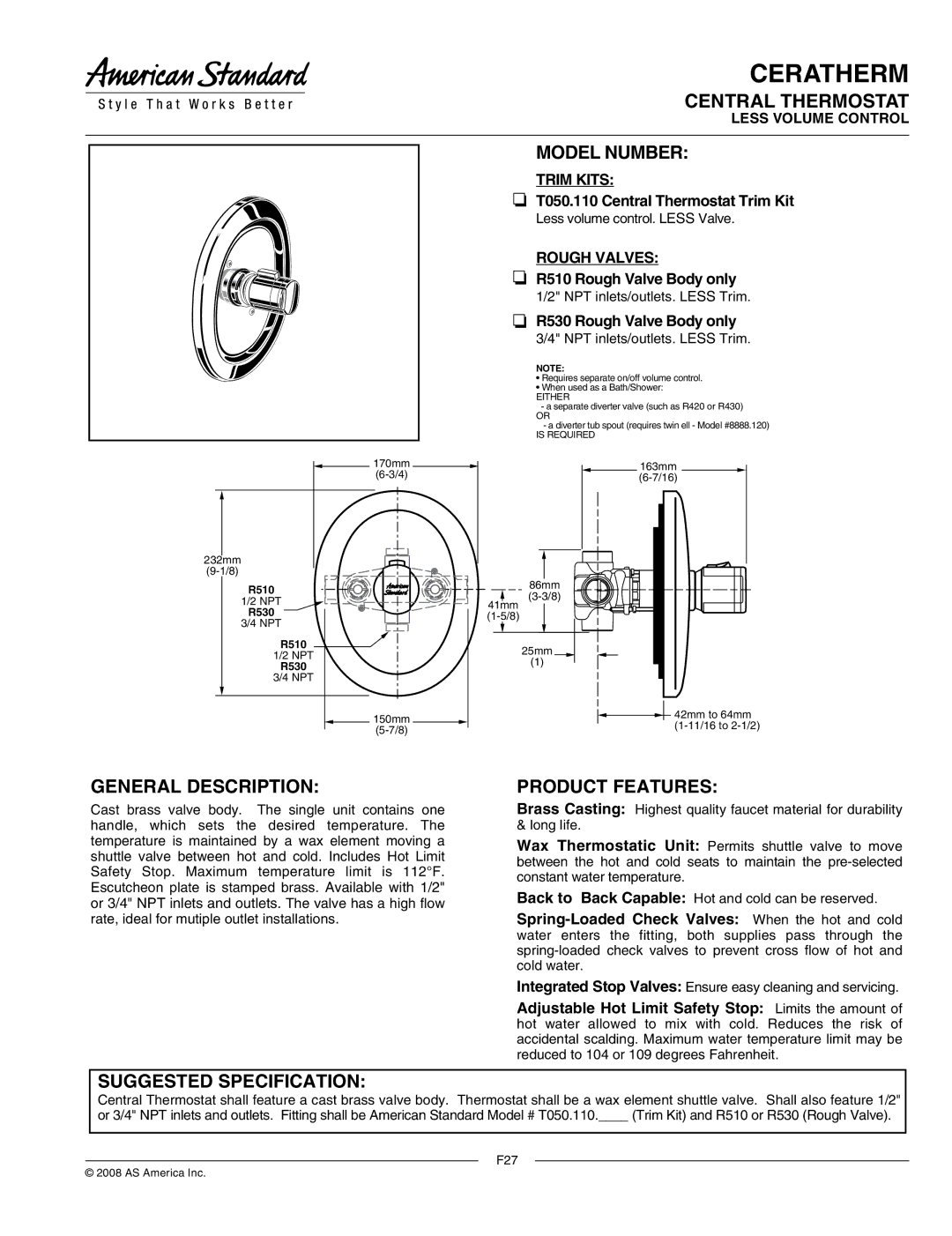

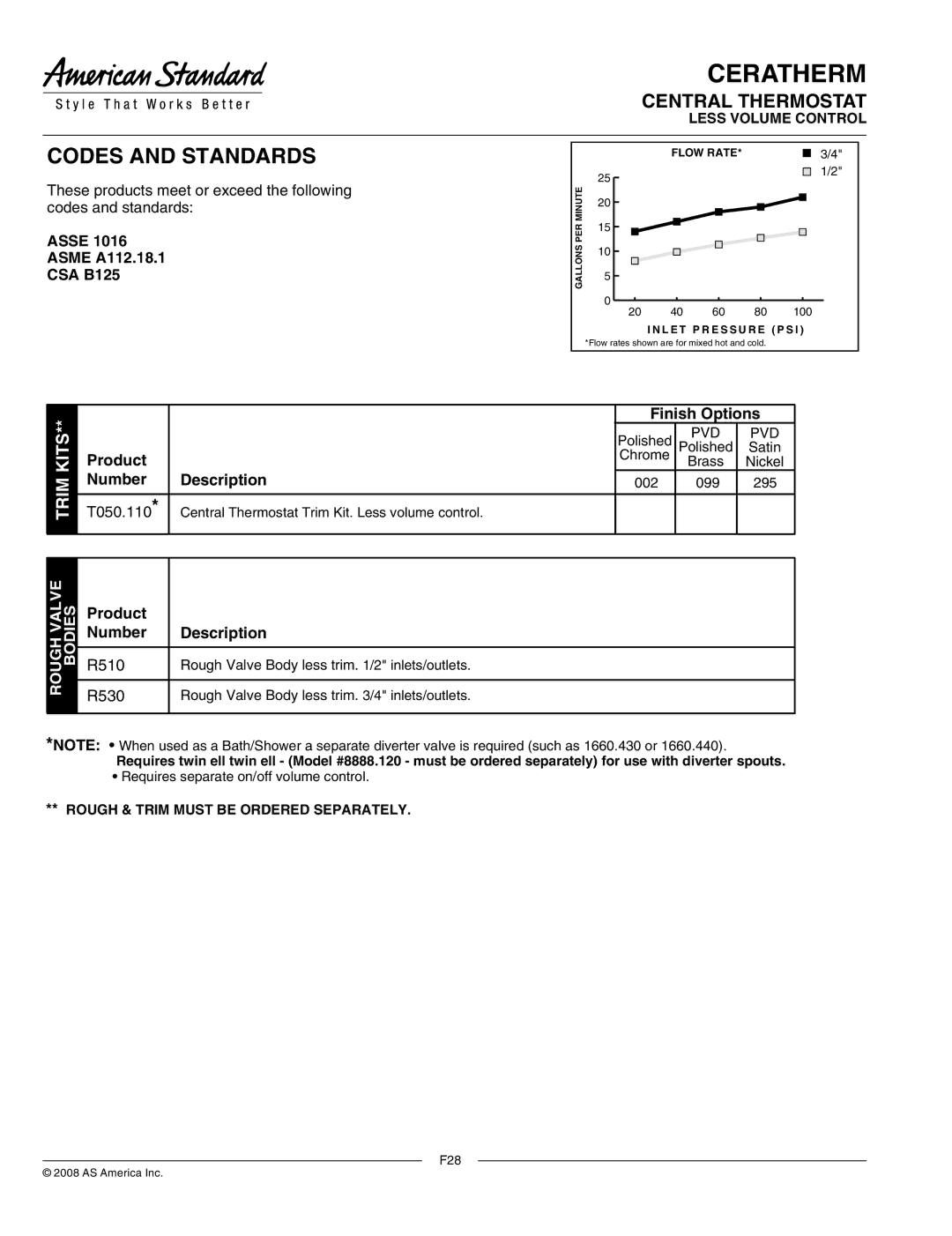

CERATHERM
CENTRAL THERMOSTAT
LESS VOLUME CONTROL
MODEL NUMBER:
TRIM KITS:
T050.110 Central Thermostat Trim Kit
Less volume control. LESS Valve.
ROUGH VALVES:
R510 Rough Valve Body only
1/2" NPT inlets/outlets. LESS Trim.
R530 Rough Valve Body only
3/4" NPT inlets/outlets. LESS Trim.
NOTE:
•Requires separate on/off volume control.
•When used as a Bath/Shower:
EITHER
-a separate diverter valve (such as R420 or R430)
OR
-a diverter tub spout (requires twin ell - Model #8888.120)
IS REQUIRED
170mm
232mm
R510
1/2 NPT
R530
3/4 NPT
41mm
163mm
86mm
R510
1/2 NPT
R530
3/4 NPT
150mm
25mm
(1)
42mm to 64mm
GENERAL DESCRIPTION:
Cast brass valve body. The single unit contains one handle, which sets the desired temperature. The temperature is maintained by a wax element moving a shuttle valve between hot and cold. Includes Hot Limit Safety Stop. Maximum temperature limit is 112°F. Escutcheon plate is stamped brass. Available with 1/2" or 3/4" NPT inlets and outlets. The valve has a high flow rate, ideal for mutiple outlet installations.
PRODUCT FEATURES:
Brass Casting: Highest quality faucet material for durability & long life.
Wax Thermostatic Unit: Permits shuttle valve to move between the hot and cold seats to maintain the
Back to Back Capable: Hot and cold can be reserved.
Integrated Stop Valves: Ensure easy cleaning and servicing.
Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding. Maximum water temperature limit may be reduced to 104 or 109 degrees Fahrenheit.
SUGGESTED SPECIFICATION:
Central Thermostat shall feature a cast brass valve body. Thermostat shall be a wax element shuttle valve. Shall also feature 1/2" or 3/4" NPT inlets and outlets. Fitting shall be American Standard Model # T050.110.____ (Trim Kit) and R510 or R530 (Rough Valve).
F27
© 2008 AS America Inc.
