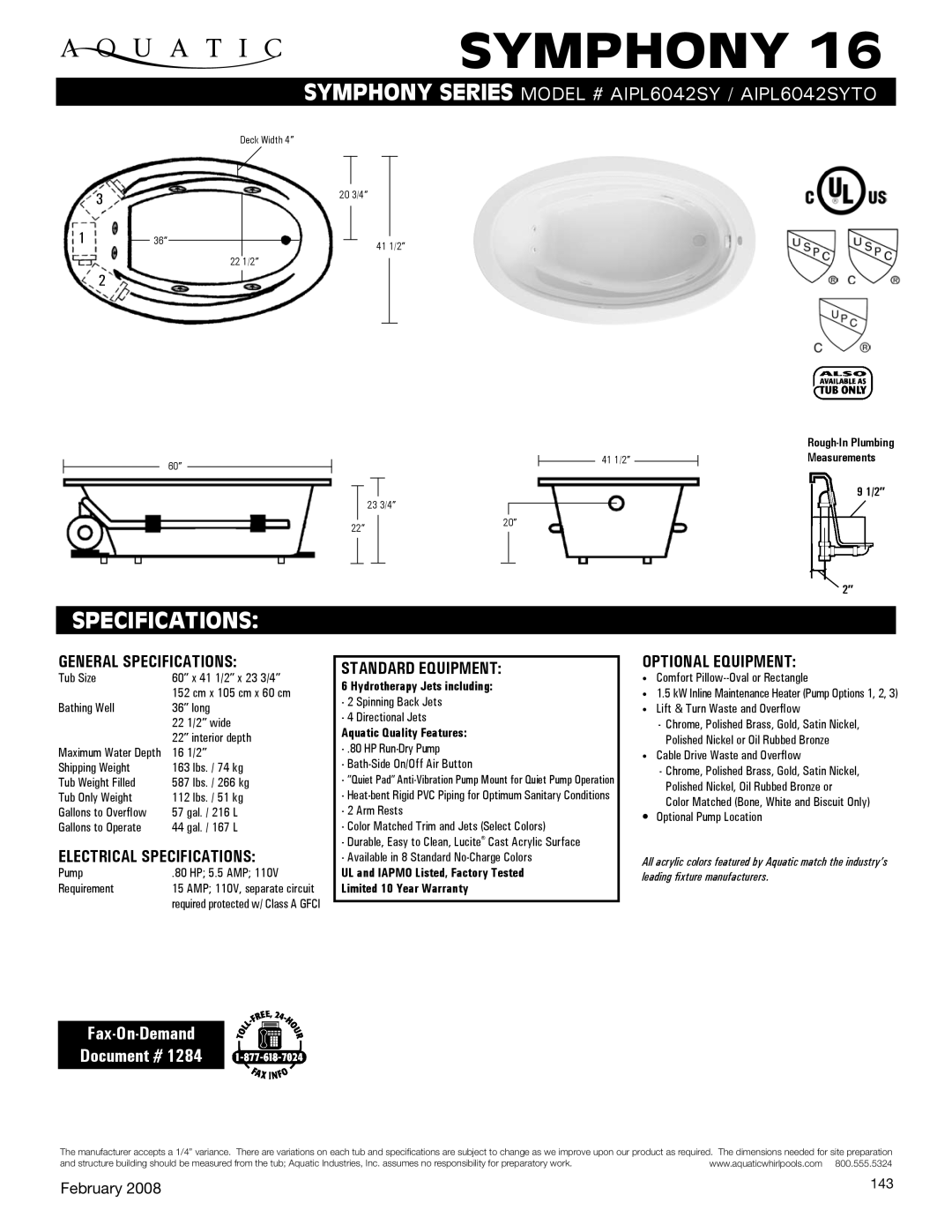

symphony 16
symphony series Model # AIPl6042SY / AIPL6042SYTO
Deck Width 4”
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 3 |
|
|
|
| 20 3/4” |
|
| ||||
|
|
|
|
|
|
|
|
|
|
|
| |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 36” |
|
|
|
|
| 41 1/2” | ||||
|
|
|
|
|
|
| ||||||
22 1/2”
2
60”
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
| |
|
|
| 23 3/4” |
|
| |||||
|
|
|
| |||||||
|
|
|
|
|
|
| 20” | |||
22” | ||||||||||
|
|
|
|
|
|
| ||||
|
|
|
|
|
|
|
|
|
| |
41 1/2”
2”
SPECIFICATIONS:
General Specifications:
Tub Size | 60” x 41 1/2” x 23 3/4” |
| 152 cm x 105 cm x 60 cm |
Bathing Well | 36” long |
| 22 1/2” wide |
| 22” interior depth |
Maximum Water Depth | 16 1/2” |
Shipping Weight | 163 lbs. / 74 kg |
Tub Weight Filled | 587 lbs. / 266 kg |
Tub Only Weight | 112 lbs. / 51 kg |
Gallons to Overflow | 57 gal. / 216 L |
Gallons to Operate | 44 gal. / 167 L |
Electrical Specifications:
Pump | .80 HP; 5.5 AMP; 110V |
Requirement | 15 AMP; 110V, separate circuit |
| required protected w/ Class A GFCI |
Standard equipment:
6 Hydrotherapy Jets including:-2 Spinning Back Jets
-4 Directional Jets
Aquatic Quality Features:-.80 HP
-
-”Quiet Pad”
-
-2 Arm Rests
-Color Matched Trim and Jets (Select Colors)
-Durable, easy to clean, Lucite® Cast Acrylic Surface
-Available in 8 Standard
optional equipment:
•Comfort
•1.5 kW Inline Maintenance Heater (Pump Options 1, 2, 3)
•Lift & Turn Waste and Overflow
-Chrome, Polished Brass, Gold, Satin Nickel, Polished Nickel or Oil Rubbed Bronze
•Cable Drive Waste and Overflow
-Chrome, Polished Brass, Gold, Satin Nickel, Polished Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit only)
•Optional Pump Location
All acrylic colors featured by Aquatic match the industry’s leading fixture manufacturers.
Fax-On-Demand
Document # 1284
The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work. | www.aquaticwhirlpools.com 800.555.5324 |
| February 2008 | 143 |
