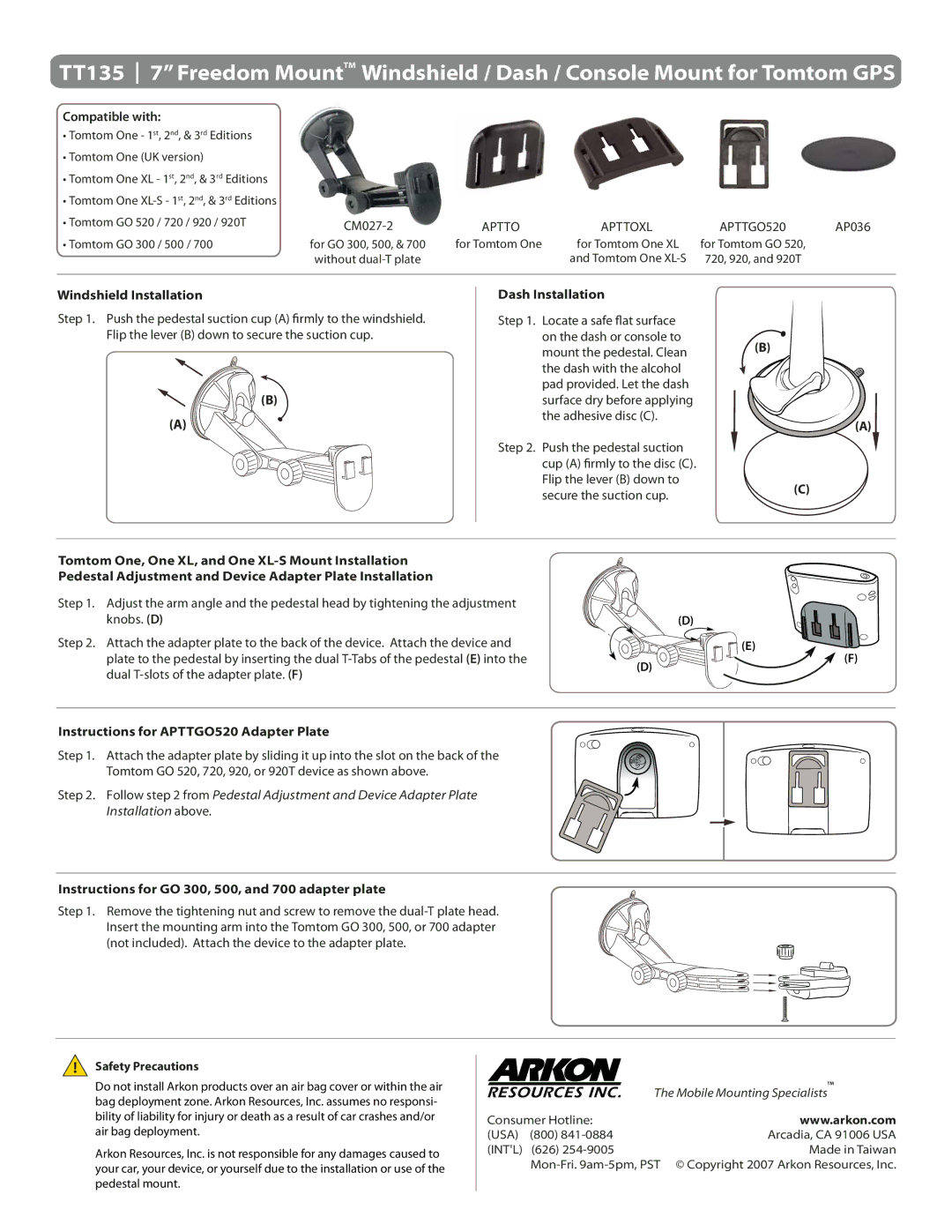

TT135 7” Freedom MountTM Windshield / Dash / Console Mount for Tomtom GPS

Compatible with:

t5PNUPN0OFst, 2nd, & 3rd Editions

t5PNUPN0OF 6,WFSTJPO

t̓5PNUPN0OF9-st, 2nd, & 3rd Editions

t5PNUPN0OF9-4st, 2nd, & 3rd Editions

t5PNUPN(05

t5PNUPN(0

CM027-2

APTTO

APTTOXL

APTTGO520

AP036

for GO 300, 500, & 700

for Tomtom One

for Tomtom One XL

for Tomtom GO 520,



without dual-T plate



and Tomtom One XL-S

720, 920, and 920T



Windshield Installation

Step 1. Push the pedestal suction cup (A) firmly to the windshield. Flip the lever (B) down to secure the suction cup.

(B)

(A)

Dash Installation



Step 1. Locate a safe flat surface



on the dash or console to

(B)

mount the pedestal. Clean



the dash with the alcohol



pad provided. Let the dash



surface dry before applying



the adhesive disc (C).

(A)



Step 2. Push the pedestal suction



cup (A) firmly to the disc (C).



Flip the lever (B) down to

(C)

secure the suction cup.



Tomtom One, One XL, and One XL-S Mount Installation Pedestal Adjustment and Device Adapter Plate Installation

Step 1. Adjust the arm angle and the pedestal head by tightening the adjustment knobs. (D)

Step 2. Attach the adapter plate to the back of the device. Attach the device and plate to the pedestal by inserting the dual T-Tabs of the pedestal (E) into the dual T-slots of the adapter plate. (F)



(D)



(E)

(D)

(F)



Instructions for APTTGO520 Adapter Plate

Step 1. Attach the adapter plate by sliding it up into the slot on the back of the Tomtom GO 520, 720, 920, or 920T device as shown above.

Step 2. Follow step 2 from Pedestal Adjustment and Device Adapter Plate Installation above.

Instructions for GO 300, 500, and 700 adapter plate

Step 1. Remove the tightening nut and screw to remove the dual-T plate head. Insert the mounting arm into the Tomtom GO 300, 500, or 700 adapter (not included). Attach the device to the adapter plate.

Safety Precautions

Do not install Arkon products over an air bag cover or within the air bag deployment zone. Arkon Resources, Inc. assumes no responsi- bility of liability for injury or death as a result of car crashes and/or air bag deployment.

Arkon Resources, Inc. is not responsible for any damages caused to your car, your device, or yourself due to the installation or use of the pedestal mount.





TM



The Mobile Mounting Specialists

Consumer Hotline:

www.arkon.com

(USA)

(800) 841-0884

Arcadia, CA 91006 USA

(INT'L)

(626) 254-9005

Made in Taiwan



Mon-Fri. 9am-5pm, PST

© Copyright 2007 Arkon Resources, Inc.
