ATX-Netz-Header

12

24

Verbinden Sie die ATX-

(24-pin ATXPWR1)





Stromversorgung mit diesem

(siehe S.4 - No. 7)





Header.



1

13



Obwohl dieses Motherboard einen 24-pol. ATX- Stromanschluss bietet, kann es auch mit einem modifizierten traditionellen 20-pol. ATX-Netzteil verwendet werden. Um ein 20-pol. ATX-Netzteil zu verwenden, stecken Sie den Stecker mit Pin 1 und Pin 13 ein.

Installation eines 20-pol. ATX-Netzteils

122424

11313

ATX 12V Anschluss

8

5

Bitte schließen Sie an diesen









Anschluss die ATX 12V



(8-pin ATX12V1)









(siehe S.4 - No. 2)



4

1

Stromversorgung an.

























Obwohl diese Hauptplatine 8-Pin ATX 12V Stromanschluss zur Verfügung





stellt, kann sie noch arbeiten, wenn Sie einen traditionellen 4-Pin ATX 12V





Energieversorgung adoptieren. Um die 4-Pin ATX Energieversorgung zu





verwenden, stecken Sie bitte Ihre Energieversorgung zusammen mit dem





Pin 1 und Pin 5 ein.



8





5

















Installation der 4-Pin ATX 12V Energieversorgung 4





1



























IEEE-1394 Header

RXTPAM_0



(9-pin FRONT_1394)

GND

RXTPBM_0

(siehe S.4 - No. 28)

+12V

GND





1



+12V



RXTPBP_0



GND



RXTPAP_0

Außer einem vorgegebenem IEEE-1394 Port auf dem Ein-/ Ausgabe Paneel, gibt es einen IEEE-1394 Header (FRONT_1394) auf dieser Hauptplatine. Dieser IEEE-1394 Header kann einen IEEE-1394 Port unterstützen.

Deutsch

71

Fatal1ty Z77 Professional Series Motherboard

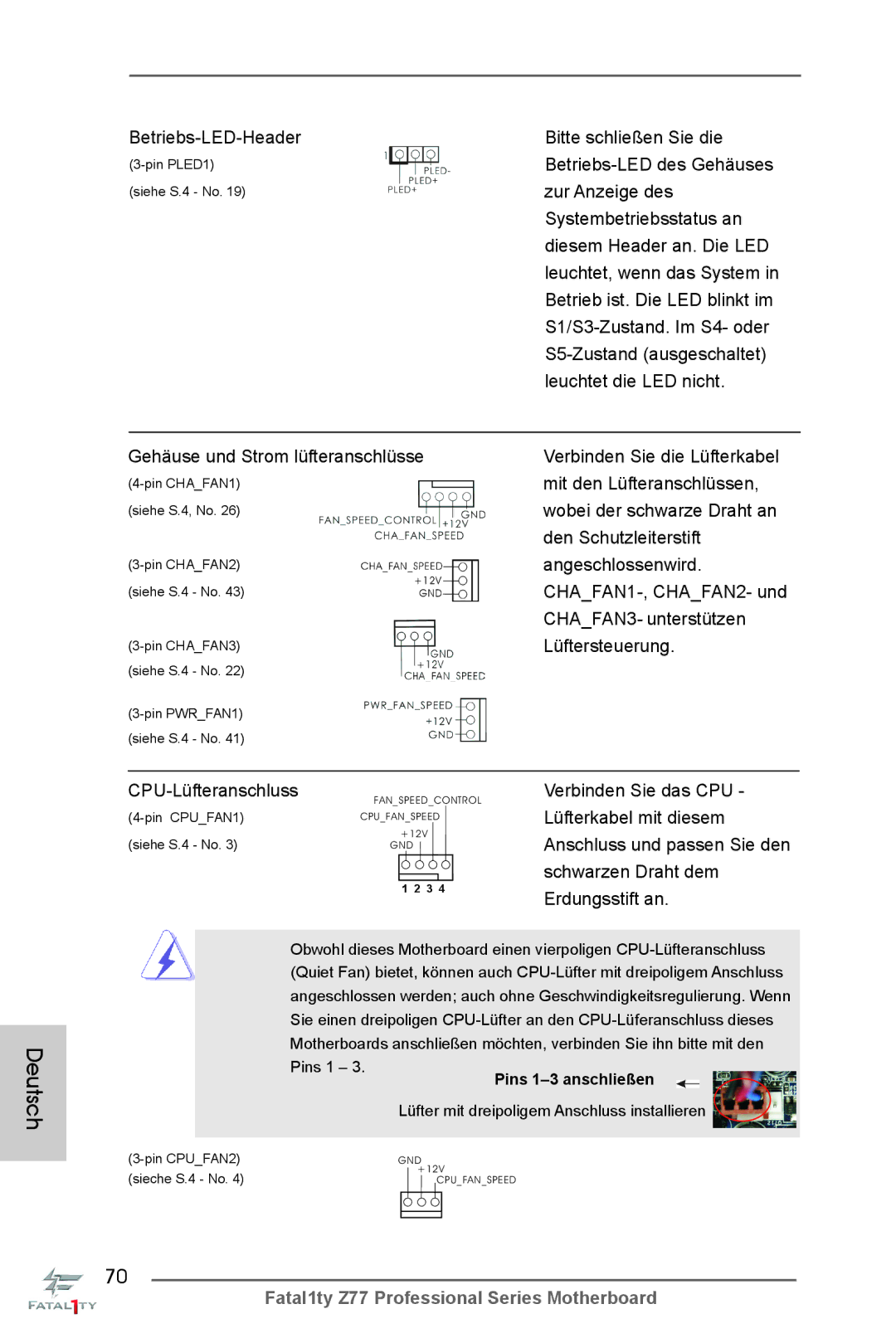

Page 70 Page 72
Page 71
Image 71
ASRock Fatal1ty Z77 Professional ATX-Netz-Header Verbinden Sie die ATX, Stromversorgung mit diesem, Stromversorgung an
Page 70 Page 72

Fatal1ty Z77 Professional specifications

The ASRock Fatal1ty Z77 Professional motherboard is designed for gaming enthusiasts and professionals seeking high performance and stability. Built on the Intel Z77 chipset, this motherboard supports Intel’s 3rd generation Core processors, making it an excellent choice for users looking to leverage the latest in CPU technology.

One of the standout features of the Fatal1ty Z77 Professional is its advanced overclocking potential. It includes a robust 12-phase power design that ensures efficient power delivery to the CPU. This design is complemented by an enhanced cooling solution featuring high-quality chokes and capacitors, which together guarantee durability and stability when operating under heavy workloads or during overclocking sessions.

The motherboard is equipped with four DDR3 DIMM slots that support up to 32GB of RAM, which can run at speeds of up to 2400 MHz and higher with overclocking. This capability is essential for demanding applications and gaming, allowing for seamless multitasking and improved performance in memory-intensive tasks.

Storage options on the ASRock Fatal1ty Z77 Professional are plentiful. It features a total of six SATA3 ports, providing high-speed connectivity for SSDs and HDDs. Additionally, the motherboard supports Intel Smart Response technology, allowing users to combine a traditional hard drive with an SSD for enhanced performance. The inclusion of USB 3.0 ports, with support for up to four SuperSpeed connections, ensures fast data transfer rates, making it ideal for external storage and peripherals.

For gamers, the Fatal1ty series includes an array of gaming-centric features. This motherboard comes with a dedicated LAN port powered by the Killer E2200 Game Networking chip, which prioritizes gaming traffic for less lag and better responsiveness in multiplayer settings. Furthermore, the onboard audio solution utilizes the Realtek ALC898 codec, offering 7.1 surround sound support, ensuring an immersive auditory experience.

In terms of aesthetics, the ASRock Fatal1ty Z77 Professional features a sleek black and red color scheme with eye-catching accents, making it an attractive centerpiece for any gaming rig. The motherboard layout is optimized for easy cable management and accessibility, which is a boon for those who frequently upgrade or modify their systems.

Overall, the ASRock Fatal1ty Z77 Professional combines advanced features, solid performance, and gamer-oriented enhancements, making it a compelling choice for both gaming and professional applications. Its blend of robustness, overclocking capabilities, and extensive connectivity options position it as a top contender among Z77 motherboards on the market.
