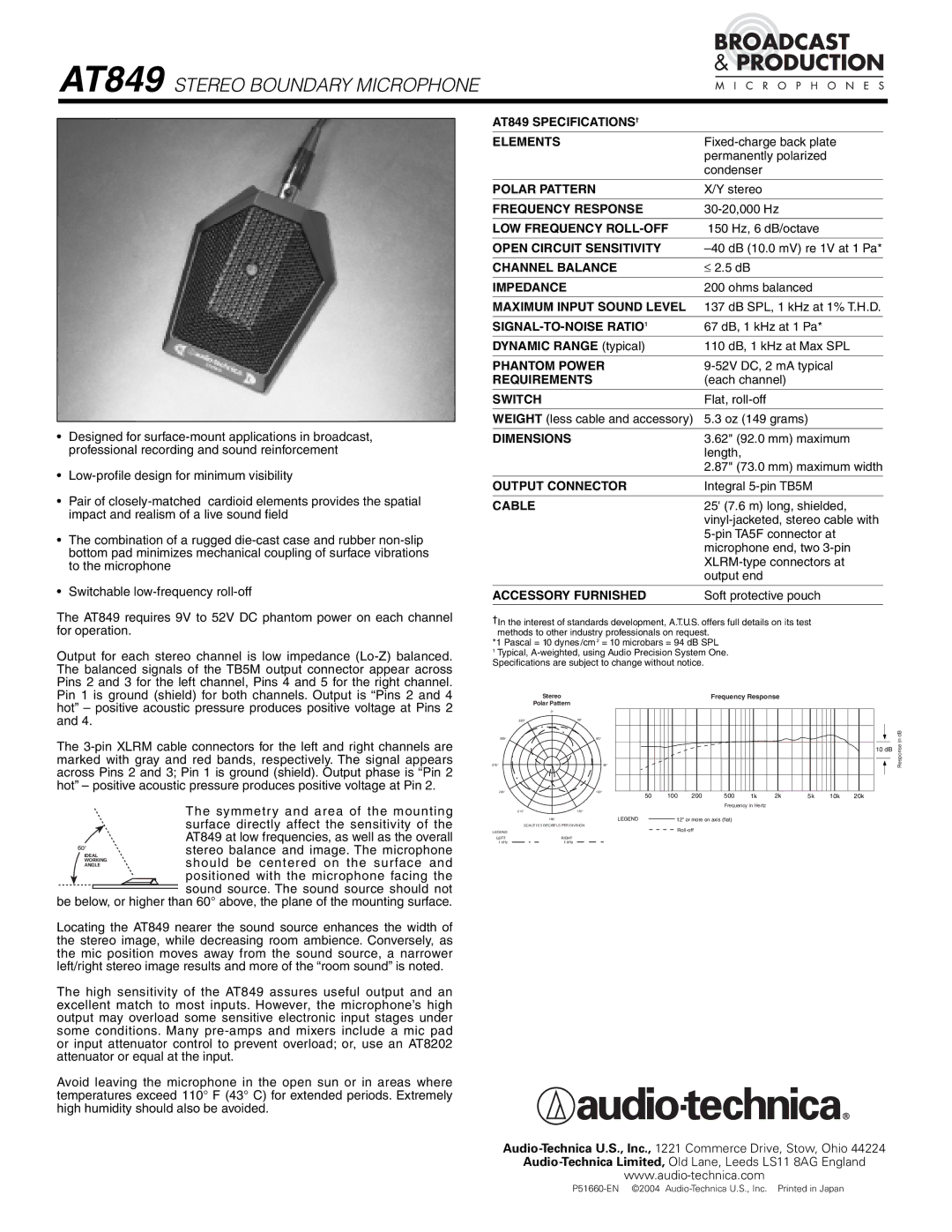

AT849 STEREO BOUNDARY MICROPHONE

Designed for surface-mount applications in broadcast, professional recording and sound reinforcement

Low-profile design for minimum visibility

Pair of closely-matched cardioid elements provides the spatial impact and realism of a live sound field

The combination of a rugged die-cast case and rubber non-slip bottom pad minimizes mechanical coupling of surface vibrations to the microphone

Switchable low-frequency roll-off

The AT849 requires 9V to 52V DC phantom power on each channel for operation.

Output for each stereo channel is low impedance (Lo-Z) balanced. The balanced signals of the TB5M output connector appear across Pins 2 and 3 for the left channel, Pins 4 and 5 for the right channel.

AT849 SPECIFICATIONS

ELEMENTS

Fixed-charge back plate



permanently polarized



condenser





POLAR PATTERN

X/Y stereo





FREQUENCY RESPONSE

30-20,000 Hz





LOW FREQUENCY ROLL-OFF

150 Hz, 6 dB/octave





OPEN CIRCUIT SENSITIVITY

–40 dB (10.0 mV) re 1V at 1 Pa*





CHANNEL BALANCE

2.5 dB





IMPEDANCE

200 ohms balanced





MAXIMUM INPUT SOUND LEVEL

137 dB SPL, 1 kHz at 1% T.H.D.





SIGNAL-TO-NOISE RATIO1

67 dB, 1 kHz at 1 Pa*

DYNAMIC RANGE (typical)

110 dB, 1 kHz at Max SPL





PHANTOM POWER

9-52V DC, 2 mA typical

REQUIREMENTS

(each channel)





SWITCH

Flat, roll-off





WEIGHT (less cable and accessory)

5.3 oz (149 grams)





DIMENSIONS

3.62" (92.0 mm) maximum



length,



2.87" (73.0 mm) maximum width





OUTPUT CONNECTOR

Integral 5-pin TB5M





CABLE

25' (7.6 m) long, shielded,



vinyl-jacketed, stereo cable with



5-pin TA5F connector at



microphone end, two 3-pin



XLRM-type connectors at



output end





ACCESSORY FURNISHED

Soft protective pouch





In the interest of standards development, A.T.U.S. offers full details on its test methods to other industry professionals on request.

*1 Pascal = 10 dynes/cm 2 = 10 microbars = 94 dB SPL

1Typical, A-weighted, using Audio Precision System One. Specifications are subject to change without notice.

Pin 1 is ground (shield) for both channels. Output is “Pins 2 and 4 hot” – positive acoustic pressure produces positive voltage at Pins 2 and 4.

The 3-pin XLRM cable connectors for the left and right channels are marked with gray and red bands, respectively. The signal appears across Pins 2 and 3; Pin 1 is ground (shield). Output phase is “Pin 2 hot” – positive acoustic pressure produces positive voltage at Pin 2.

The symmetry and area of the mounting

surface directly affect the sensitivity of the



Stereo



Polar Pattern



0°

330°

30°

300°

60°

270°

90°

240°

120°

210°

150°



180°

SCALE IS 5 DECIBELS PER DIVISION







Frequency Response























10 dB

50

100

200

500

1k

2k

5k

10k

20k







Frequency in Hertz









LEGEND



12" or more on axis (flat)

Response in dB













AT849 at low frequencies, as well as the overall

60°











stereo balance and image. The microphone

IDEAL

WORKING

should be centered on the surface and

ANGLE













positioned with the microphone facing the













sound source. The sound source should not













be below, or higher than 60° above, the plane of the mounting surface.

Locating the AT849 nearer the sound source enhances the width of the stereo image, while decreasing room ambience. Conversely, as the mic position moves away from the sound source, a narrower left/right stereo image results and more of the “room sound” is noted.

The high sensitivity of the AT849 assures useful output and an excellent match to most inputs. However, the microphone’s high output may overload some sensitive electronic input stages under some conditions. Many pre-amps and mixers include a mic pad or input attenuator control to prevent overload; or, use an AT8202 attenuator or equal at the input.

Avoid leaving the microphone in the open sun or in areas where temperatures exceed 110° F (43° C) for extended periods. Extremely high humidity should also be avoided.

LEGEND

Roll-off

LEFT

RIGHT

1 kHz

1 kHz

Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224

Audio-Technica Limited, Old Lane, Leeds LS11 8AG England

www.audio-technica.com

P51660-EN ©2004 Audio-Technica U.S., Inc. Printed in Japan

Page 1
Image 1
Audio-Technica specifications AT849 Stereo Boundary Microphone

AT849 specifications
