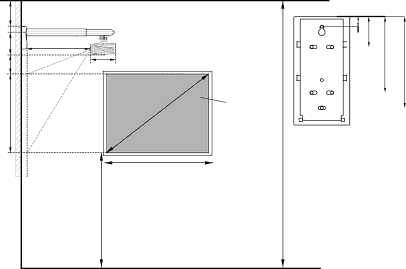

Minimum Ceiling Height (mm) = f + H + b + 60 + 274+ c

c



Ceiling

60



e

274

a

b



232.6

H

screen

D

Projection











area





W

fDistance from floor to bottom of image

floor

20 60









150

180

































Wall plate

• The dimensions are based on the BenQ wall mount (P/N: 5J.J4R10.001).

All measurements are approximate and may vary from the actual sizes. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.

The dimensions supplied are offered as a guide only and may differ depending on several factors relating to any specific installation.

The dimensions are based on the projector being configured with zero keystone correction.

The dimensions assume that the wall mount arm is positioned 90° from the bottom case of projector and screen surface.

56 Specifications
