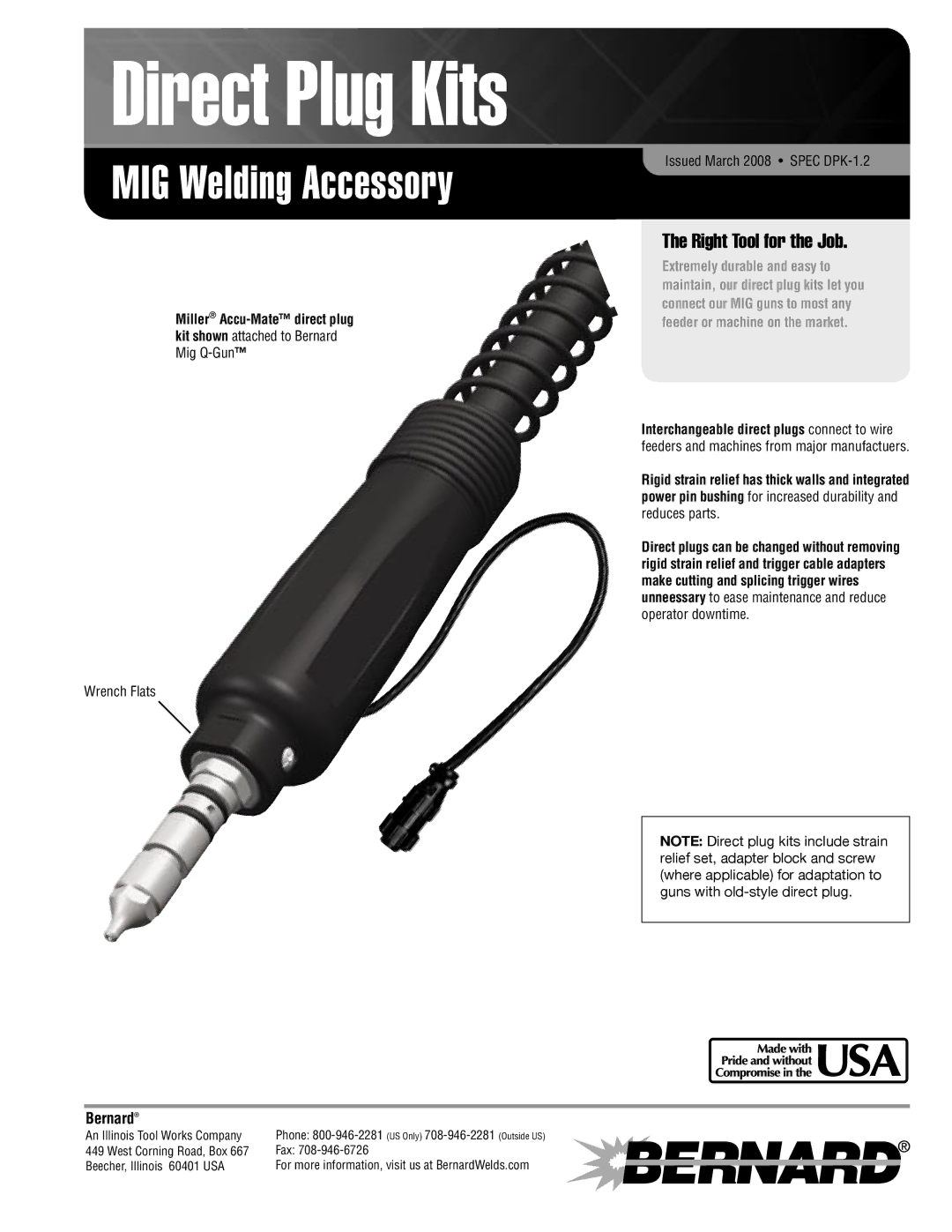

Direct Plug Kits

MIG Welding Accessory

Miller® Accu-Mate™ direct plug kit shown attached to Bernard Mig Q-Gun

Wrench Flats

Issued March 2008 • SPEC DPK-1.2

The Right Tool for the Job.

Extremely durable and easy to maintain, our direct plug kits let you connect our MIG guns to most any feeder or machine on the market.

Interchangeable direct plugs connect to wire feeders and machines from major manufactuers.

Rigid strain relief has thick walls and integrated power pin bushing for increased durability and reduces parts.

Direct plugs can be changed without removing rigid strain relief and trigger cable adapters make cutting and splicing trigger wires unneessary to ease maintenance and reduce operator downtime.

NOTE: Direct plug kits include strain relief set, adapter block and screw (where applicable) for adaptation to guns with old-style direct plug.

Made with USA

Pride and without

Compromise in the

Bernard®

An Illinois Tool Works Company

Phone: 800-946-2281 (US Only) 708-946-2281 (Outside US)

449 West Corning Road, Box 667

Fax: 708-946-6726

Beecher, Illinois 60401 USA

For more information, visit us at BernardWelds.com

Page 1
