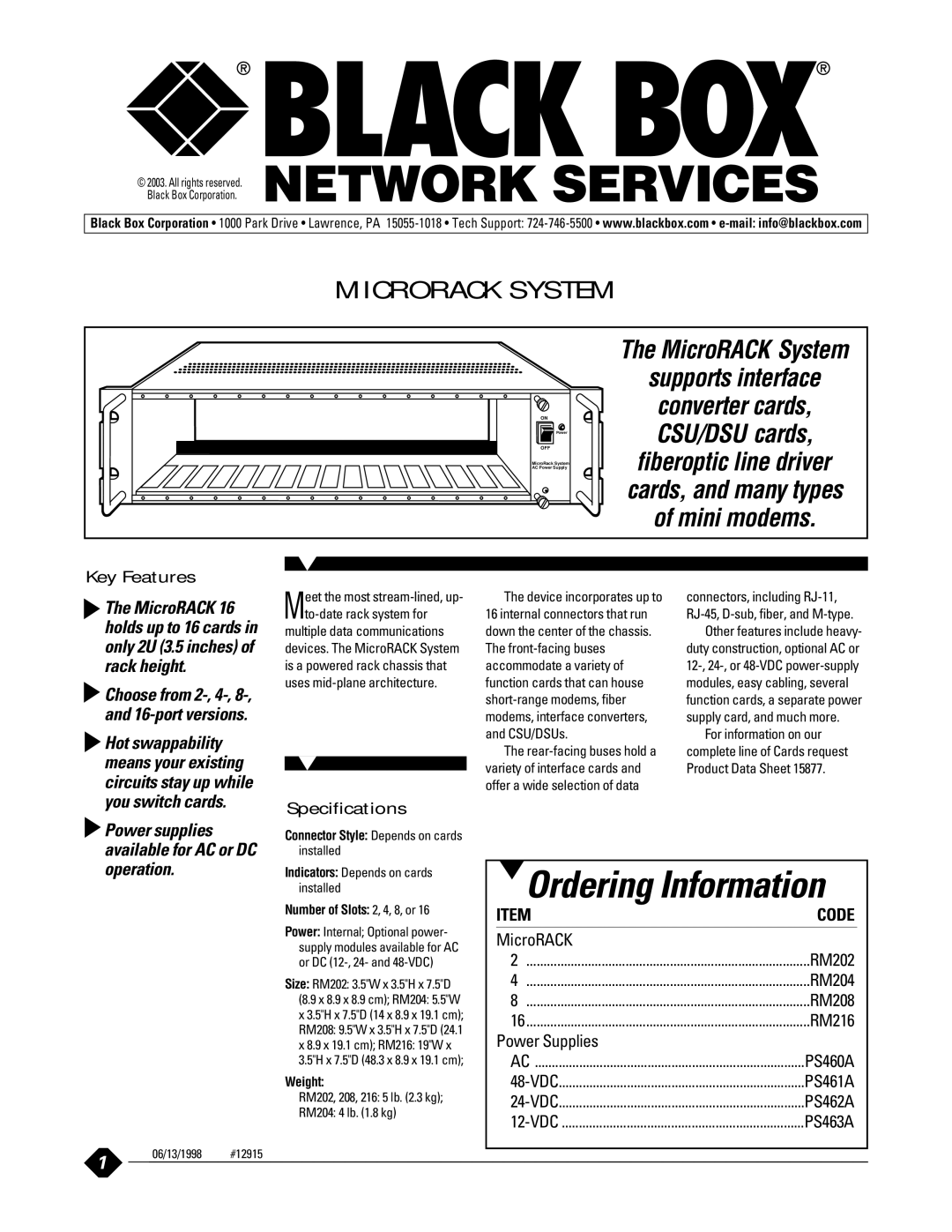

MICRORACK SYSTEM
ON
Power
OFF
MicroRack System
AC Power Supply
The MicroRACK System
supports interface converter cards, CSU/DSU cards, fiberoptic line driver cards, and many types of mini modems.
Key Features
The MicroRACK 16 holds up to 16 cards in only 2U (3.5 inches) of rack height.
Choose from
Hot swappability means your existing circuits stay up while you switch cards.
Meet the most stream-lined, up- to-date rack system for
multiple data communications devices. The MicroRACK System is a powered rack chassis that uses
Specifications
The device incorporates up to 16 internal connectors that run down the center of the chassis. The
The
connectors, including
Other features include heavy- duty construction, optional AC or
For information on our complete line of Cards request Product Data Sheet 15877.
Power supplies available for AC or DC operation.
1 | 06/13/1998 | #12915 |
|
|
Connector Style: Depends on cards
installed
Indicators: Depends on cards installed
Number of Slots: 2, 4, 8, or 16
Power: Internal; Optional power- supply modules available for AC or DC
Size: RM202: 3.5"W x 3.5"H x 7.5"D (8.9 x 8.9 x 8.9 cm); RM204: 5.5"W x 3.5"H x 7.5"D (14 x 8.9 x 19.1 cm); RM208: 9.5"W x 3.5"H x 7.5"D (24.1 x 8.9 x 19.1 cm); RM216: 19"W x 3.5"H x 7.5"D (48.3 x 8.9 x 19.1 cm);
Weight:
RM202, 208, 216: 5 lb. (2.3 kg);
RM204: 4 lb. (1.8 kg)
Ordering Information
ITEM | CODE |
MicroRACK |
|
2 | RM202 |
4 | RM204 |
8 | RM208 |
16 | RM216 |
Power Supplies |
|
AC | PS460A |
PS461A | |
PS462A | |
PS463A |
