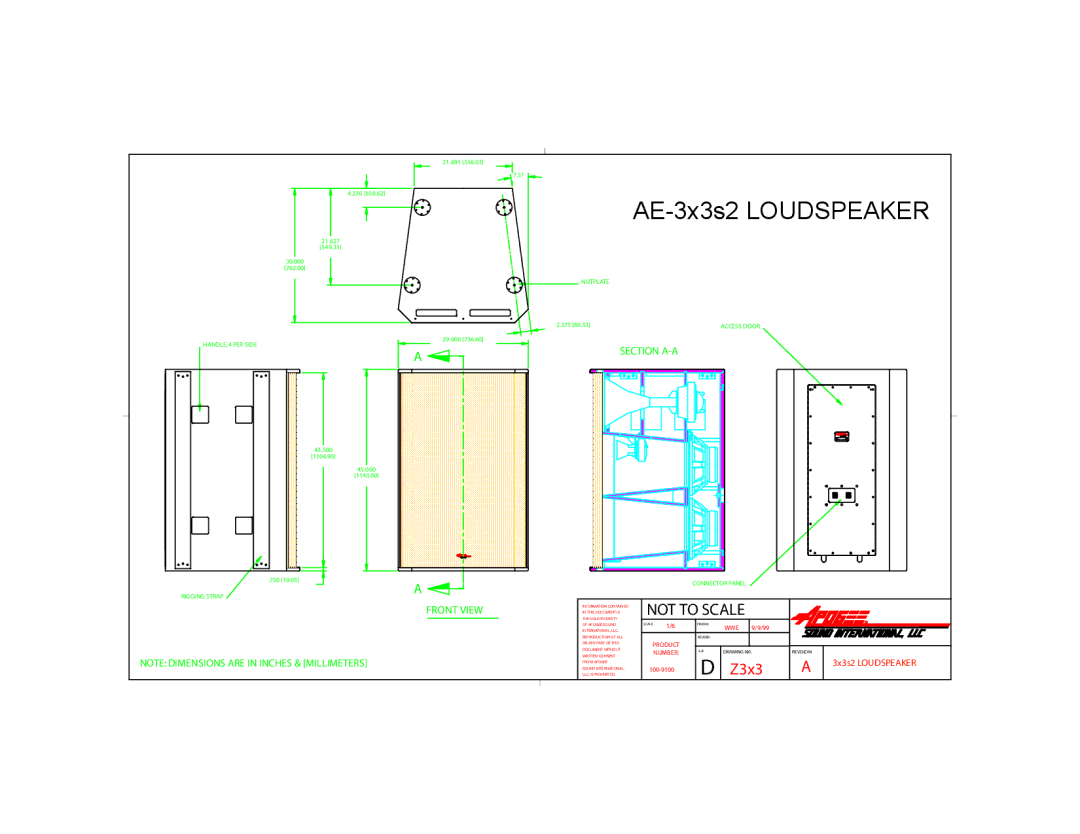

Bogen dimensions AE-3x3s2LOUDSPEAKER, Not To Scale, Z3x3, Section A-A, Front View, Nutplate

21.891 [556.03]

7.5?

4.276 [108.62]

21.627

[549.31]

30.000

[762.00]

AE-3x3s2 LOUDSPEAKER

NUTPLATE

2.375 [60.33] ACCESS DOOR

HANDLE, 4 PER SIDE

43.500

[1104.90]

45.000

[1143.00]

29.000 [736.60]

A

SECTION A-A

.750 [19.05]

RIGGING STRAP

A

FRONT VIEW

CONNECTOR PANEL

NOTE: DIMENSIONS ARE IN INCHES & [MILLIMETERS]

INFORMATION CONTAINED IN THIS DOCUMENT IS THE SOLE PROPERTY

OF APOGEE SOUND

INTERNATIONAL, LLC. REPRODUCTION OF ALL OR ANY PART OF THIS DOCUMENT WITHOUT WRITTEN CONSENT FROM APOGEE SOUND INTERNATIONAL, LLC. IS PROHIBITED.

NOT TO SCALE

SCALE	1/6	DRAWN	WWE	9/9/99
		REVISED
PRODUCT
	NUMBER:	SIZE	DRAWING N0.
100-9100		D	Z3x3

REVISION

A

3x3s2 LOUDSPEAKER
