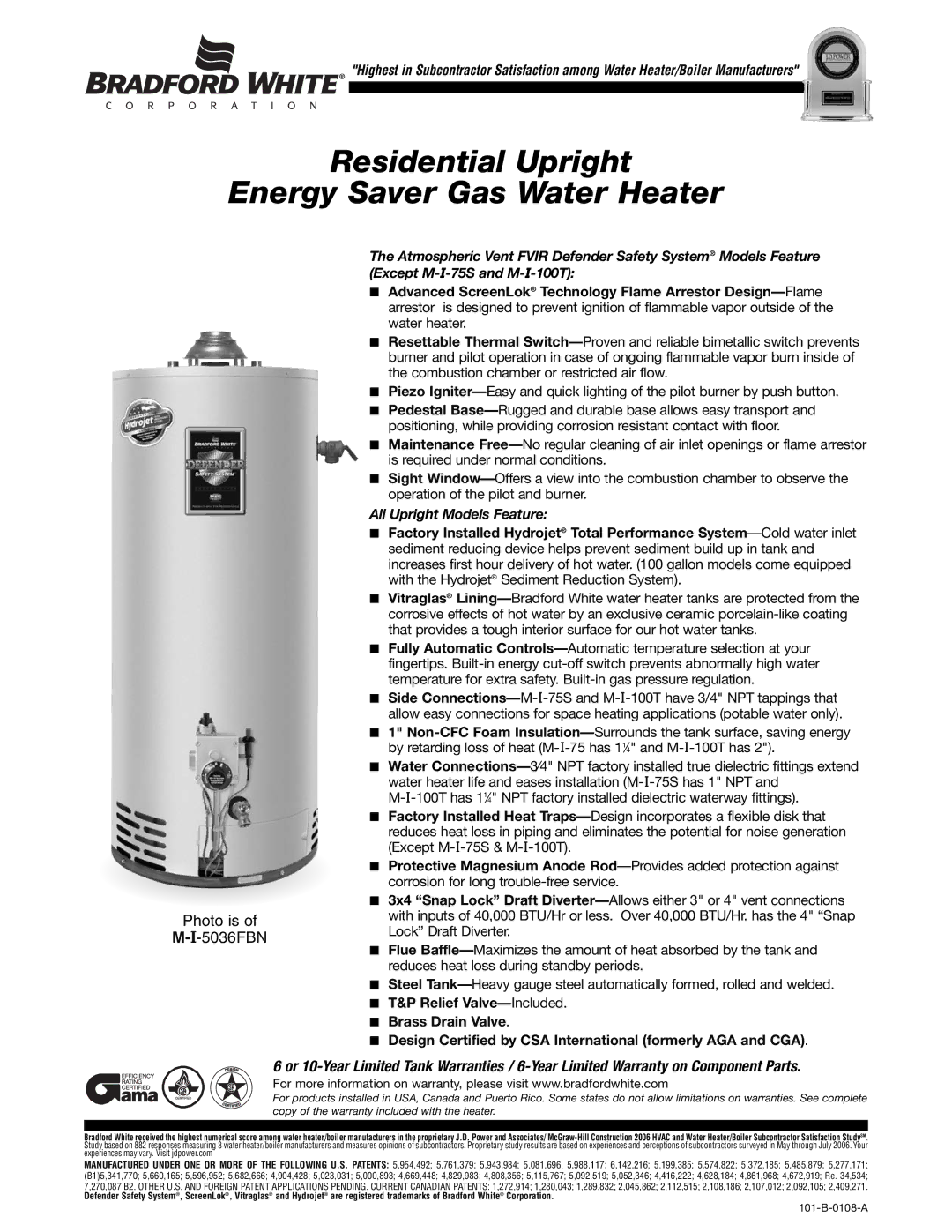

Bradford-White Corp M-I-5036FBN warranty Residential Upright Energy Saver Gas Water Heater

"Highest in Subcontractor Satisfaction among Water Heater/Boiler Manufacturers"

Residential Upright

Energy Saver Gas Water Heater

Photo is of

M-I-5036FBN

The Atmospheric Vent FVIR Defender Safety System® Models Feature (Except M-I-75S and M-I-100T):

■Advanced ScreenLok® Technology Flame Arrestor Design—Flame arrestor is designed to prevent ignition of flammable vapor outside of the water heater.

■Resettable Thermal Switch—Proven and reliable bimetallic switch prevents burner and pilot operation in case of ongoing flammable vapor burn inside of the combustion chamber or restricted air flow.

■Piezo Igniter—Easy and quick lighting of the pilot burner by push button.

■Pedestal Base—Rugged and durable base allows easy transport and positioning, while providing corrosion resistant contact with floor.

■Maintenance Free—No regular cleaning of air inlet openings or flame arrestor is required under normal conditions.

■Sight Window—Offers a view into the combustion chamber to observe the operation of the pilot and burner.

All Upright Models Feature:

■Factory Installed Hydrojet® Total Performance System—Cold water inlet sediment reducing device helps prevent sediment build up in tank and increases first hour delivery of hot water. (100 gallon models come equipped with the Hydrojet® Sediment Reduction System).

■Vitraglas® Lining—Bradford White water heater tanks are protected from the corrosive effects of hot water by an exclusive ceramic porcelain-like coating that provides a tough interior surface for our hot water tanks.

■Fully Automatic Controls—Automatic temperature selection at your fingertips. Built-in energy cut-off switch prevents abnormally high water temperature for extra safety. Built-in gas pressure regulation.

■Side Connections—M-I-75S and M-I-100T have 3/4" NPT tappings that allow easy connections for space heating applications (potable water only).

■1" Non-CFC Foam Insulation—Surrounds the tank surface, saving energy by retarding loss of heat (M-I-75 has 11⁄4" and M-I-100T has 2").

■Water Connections—3⁄4" NPT factory installed true dielectric fittings extend water heater life and eases installation (M-I-75S has 1" NPT and M-I-100T has 11⁄4" NPT factory installed dielectric waterway fittings).

■Factory Installed Heat Traps—Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation (Except M-I-75S & M-I-100T).

■Protective Magnesium Anode Rod—Provides added protection against corrosion for long trouble-free service.

■3x4 “Snap Lock” Draft Diverter—Allows either 3" or 4" vent connections with inputs of 40,000 BTU/Hr or less. Over 40,000 BTU/Hr. has the 4" “Snap Lock” Draft Diverter.

■Flue Baffle—Maximizes the amount of heat absorbed by the tank and reduces heat loss during standby periods.

■Steel Tank—Heavy gauge steel automatically formed, rolled and welded.

■T&P Relief Valve—Included.

■Brass Drain Valve.

■Design Certified by CSA International (formerly AGA and CGA).

6 or 10-Year Limited Tank Warranties / 6-Year Limited Warranty on Component Parts.

For more information on warranty, please visit www.bradfordwhite.com

For products installed in USA, Canada and Puerto Rico. Some states do not allow limitations on warranties. See complete copy of the warranty included with the heater.

Bradford White received the highest numerical score among water heater/boiler manufacturers in the proprietary J.D. Power and Associates/ McGraw-Hill Construction 2006 HVAC and Water Heater/Boiler Subcontractor Satisfaction StudySM. Study based on 882 responses measuring 3 water heater/boiler manufacturers and measures opinions of subcontractors. Proprietary study results are based on experiences and perceptions of subcontractors surveyed in May through July 2006. Your experiences may vary. Visit jdpower.com

MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING U.S. PATENTS: 5,954,492; 5,761,379; 5,943,984; 5,081,696; 5,988,117; 6,142,216; 5,199,385; 5,574,822; 5,372,185; 5,485,879; 5,277,171; (B1)5,341,770; 5,660,165; 5,596,952; 5,682,666; 4,904,428; 5,023,031; 5,000,893; 4,669,448; 4,829,983; 4,808,356; 5,115,767; 5,092,519; 5,052,346; 4,416,222; 4,628,184; 4,861,968; 4,672,919; Re. 34,534; 7,270,087 B2. OTHER U.S. AND FOREIGN PATENT APPLICATIONS PENDING. CURRENT CANADIAN PATENTS: 1,272,914; 1,280,043; 1,289,832; 2,045,862; 2,112,515; 2,108,186; 2,107,012; 2,092,105; 2,409,271.

Defender Safety System®, ScreenLok®, Vitraglas® and Hydrojet® are registered trademarks of Bradford White® Corporation.

101-B-0108-A
