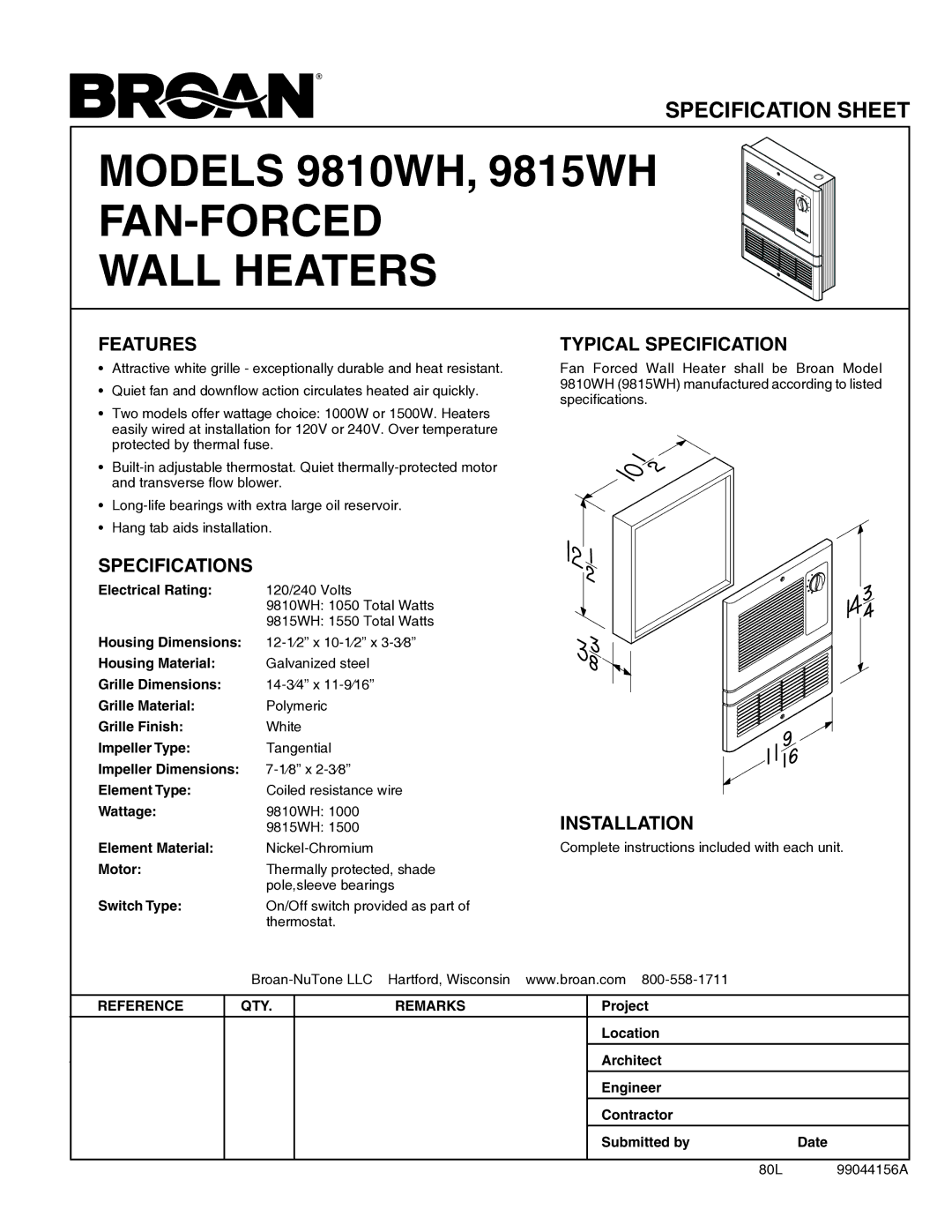

SPECIFICATION SHEET

Models 9810WH, 9815WH

Fan-Forced

Wall Heaters

FEATURES

Attractive white grille - exceptionally durable and heat resistant.

Quiet fan and downflow action circulates heated air quickly.

Two models offer wattage choice: 1000W or 1500W. Heaters easily wired at installation for 120V or 240V. Over temperature protected by thermal fuse.

Built-in adjustable thermostat. Quiet thermally-protected motor and transverse flow blower.

Long-life bearings with extra large oil reservoir.

Hang tab aids installation.

SPECIFICATIONS

Electrical Rating:

120/240 Volts



9810WH: 1050 Total Watts



9815WH: 1550 Total Watts

Housing Dimensions:

12-1⁄2” x 10-1⁄2” x 3-3⁄8”

Housing Material:

Galvanized steel

Grille Dimensions:

14-3⁄4” x 11-9⁄16”

Grille Material:

Polymeric

Grille Finish:

White

Impeller Type:

Tangential

Impeller Dimensions:

7-1⁄8” x 2-3⁄8”

Element Type:

Coiled resistance wire

Wattage:

9810WH: 1000



9815WH: 1500

Element Material:

Nickel-Chromium

Motor:

Thermally protected, shade



pole,sleeve bearings

Switch Type:

On/Off switch provided as part of



thermostat.

TYPICAL SPECIFICATION

Fan Forced Wall Heater shall be Broan Model 9810WH (9815WH) manufactured according to listed specifications.

INSTALLATION

Complete instructions included with each unit.



Broan-NuTone LLC

Hartford, Wisconsin

www.broan.com 800-558-1711

















REFERENCE

QTY.



REMARKS



Project



























Location



























Architect













Engineer



























Contractor



























Submitted by

Date

























80L

99044156A

Page 1
